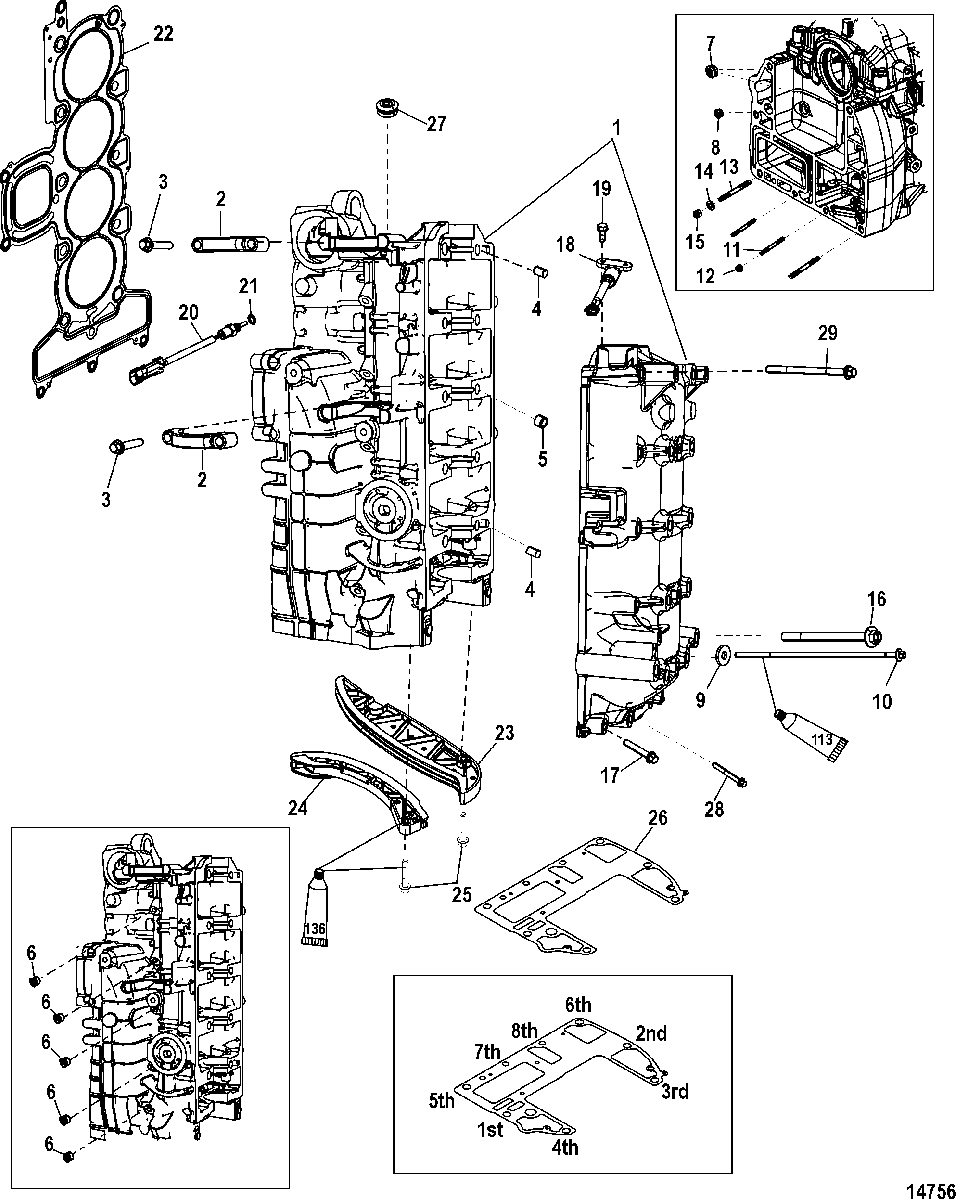

Cylinder Block для Mariner - 80 EFI (4-STROKE) 0P459572 THRU 2B094995

  • №
    Артикул
    Название
  • 1
    800-880504A12 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    8M0007889 BRACKET
    SN# 1B759587 & Below
    BRACKET
    SN# 1B759587 & Below
  • 3
    10-8M0103815 SCREW, (M8 x 40), NOTE:No Longer included with Longblock
    SN# 1B759587 & Below
    SCREW, (M8 x 40), NOTE:No Longer included with Longblock
    SN# 1B759587 & Below
  • 4
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 5
    23-893392001 DAMPER
    DAMPER
  • 6
    19-8M0087448 PLUG, (12 mm)
    PLUG, (12 mm)
  • 7
    19-896951 PLUG, (24 mm)
    PLUG, (24 mm)
  • 8
    19-8M0087449 PLUG, (14 mm)
    PLUG, (14 mm)
  • 9
    12-892573001 WASHER
    WASHER
  • 10
    10-8M4501000 SCREW, (M10 x 342)
    SCREW, (M10 x 342)
  • 11
    16-8M0000275 STUD, (M8 x 55)
    STUD, (M8 x 55)
  • 12
    11-826365 NUT, (M8)
    NUT, (M8)
  • 13
    16-8M0010471 STUD, (M10 x 1.5)
    STUD, (M10 x 1.5)
  • 14
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 15
    11-884412 NUT
    NUT
  • 16
    10-8M0103829 SCREW, (M10 x 120)
    SCREW, (M10 x 120)
  • 17
    10-895810050 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 18
    8M0082988 SENSOR
    SENSOR
  • 19
    10-40011106 SCREW, (M5 x 13) Stainless Steel
    SCREW, (M5 x 13) Stainless Steel
  • 20
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 21
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 22
    27-8M0024565 GASKET, Head
    SN# 1B494359 & Below
    GASKET, Head
    SN# 1B494359 & Below
  • 22
    27-8M0024565 GASKET
    SN# 1B494360 & Up
    GASKET
    SN# 1B494360 & Up
  • 23
    880559 GUIDE, Fixed
    GUIDE, Fixed
  • 24
    880557 GUIDE, Moveable
    GUIDE, Moveable
  • 25
    10-892456045 SCREW
    SCREW
  • 26
    27-8M0024563 GASKET, Block to Adaptor
    SN# 1B500083 & Below
    GASKET, Block to Adaptor
    SN# 1B500083 & Below
  • 26
    27-8M0024563 GASKET, Block to Adaptor
    SN# 1B500084 & Up
    GASKET, Block to Adaptor
    SN# 1B500084 & Up
  • 27
    19-891953 PLUG, (18 mm)
    PLUG, (18 mm)
  • 28
    10-895810070 SCREW, (M8 x 70)
    SCREW, (M8 x 70)
  • 29
    10-895810090 SCREW, (M8 x 90)
    SCREW, (M8 x 90)
  • -
    27-897534A07 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    8M8033014 LONG BLOCK ASSEMBLY, 75/80/90/100
    LONG BLOCK ASSEMBLY, 75/80/90/100
  • -
    8M8033013 LONG BLOCK ASSEMBLY, 115
    LONG BLOCK ASSEMBLY, 115
