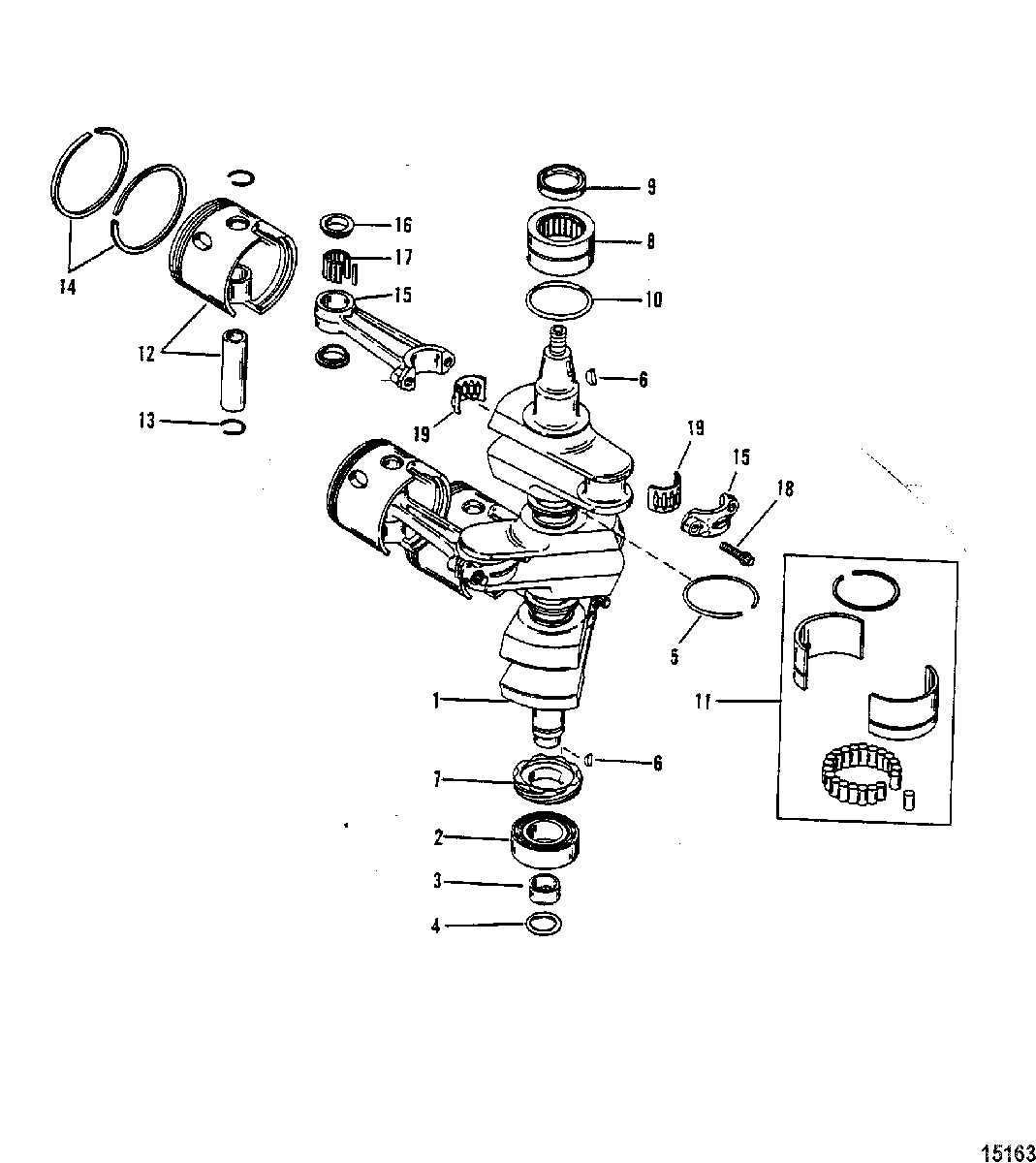

Crankshaft, Pistons/Connecting Rods (#646-818846) для Mariner - 80 (3 CYL.) 9506481 THRU 9589038

№

Артикул

Название
1

472-9001T3 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

232 890 ₽
2

30-43011T BEARING, Ball, Lower

BEARING, Ball, Lower

5 400 ₽
3

786611 WEAR SLEEVE

WEAR SLEEVE

400 ₽
4

25-35126 O-RING, (.859 x .139)

O-RING, (.859 x .139)

200 ₽
5

39-818412A4 RING ASSEMBLY

RING ASSEMBLY

3 390 ₽
6

28-91800 KEY, Woodruff

KEY, Woodruff

340 ₽
7

43-43019A1 GEAR ASSEMBLY

GEAR ASSEMBLY

5 630 ₽
8

31-43013T3 BEARING ASSEMBLY, Roller, Upper

BEARING ASSEMBLY, Roller, Upper

8 680 ₽
9

26-43993 SEAL, Oil

SEAL, Oil

920 ₽
10

25-823683 O-RING, (1.989 x .070)

O-RING, (1.989 x .070)

220 ₽
11

42943A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

9 140 ₽
12

777-815965T4 PISTON ASSEMBLY, Standard

PISTON ASSEMBLY, Standard

15 470 ₽
12

777-815965A5 PISTON ASSEMBLY (.015) Oversize

PISTON ASSEMBLY (.015) Oversize

23 100 ₽
12

777-815965A6 PISTON ASSEMBLY (.030) Oversize

PISTON ASSEMBLY (.030) Oversize

16 300 ₽
13

53-857196 RING, Lock

RING, Lock

100 ₽
14

39-96170A12 RING SET, Piston, Standard

RING SET, Piston, Standard

23 530 ₽
14

39-96170A3 RING SET, Piston (.015) Oversize

RING SET, Piston (.015) Oversize

8 720 ₽
14

39-96170A4 RING SET, Piston (.030) Oversize

RING SET, Piston (.030) Oversize

15 500 ₽
15

646-818846T6 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY

32 400 ₽
16

12-8M0012298 WASHER

WASHER

450 ₽
17

29-818391001 BEARING, Needle

BEARING, Needle

50 ₽
18

10-94320 SCREW, (.375-24 x 1.250)

SCREW, (.375-24 x 1.250)

650 ₽
19

31-844338A01 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

9 160 ₽
