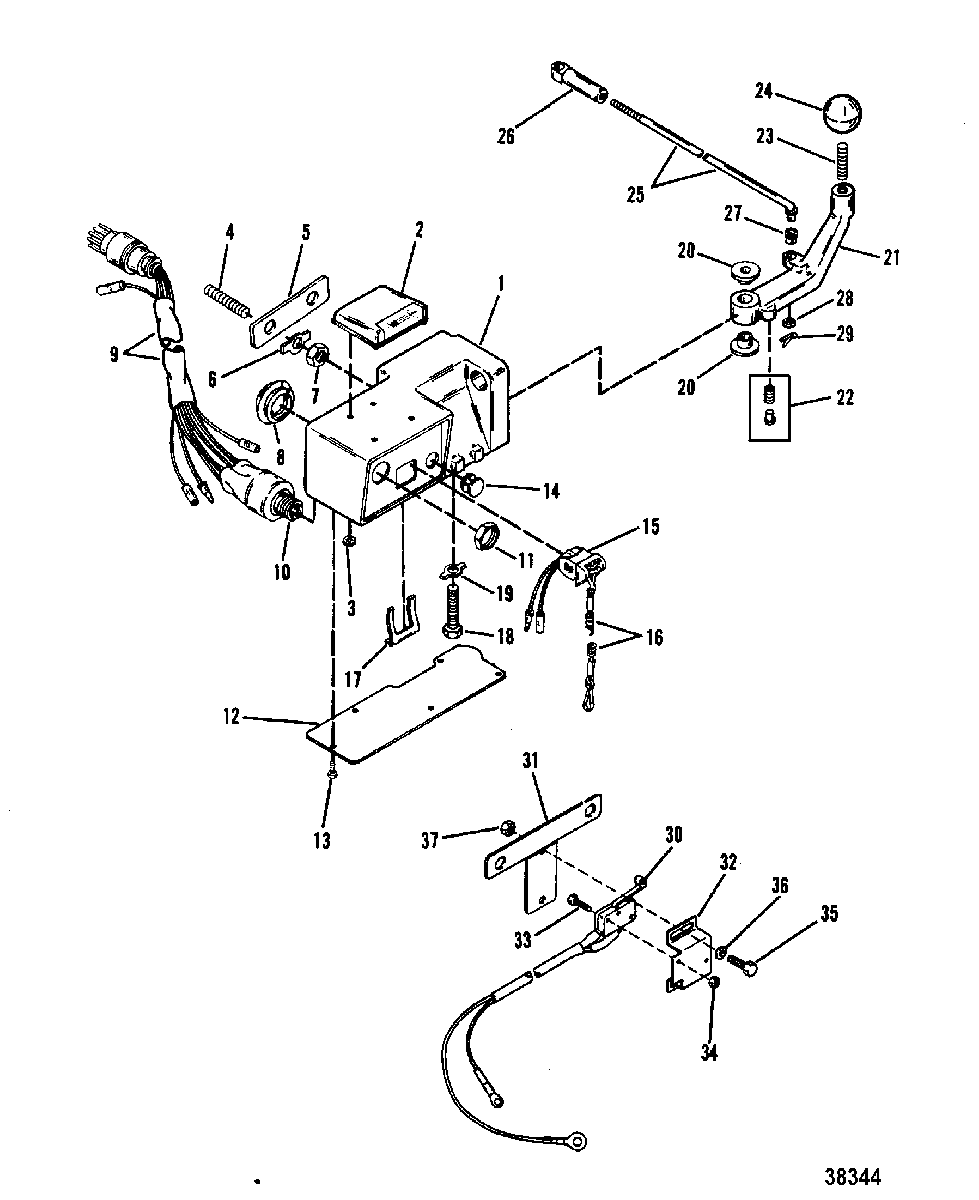

STEERING HANDLE COMPONENTS для Mariner - 80 (3 CYL.) 9483121 THRU 9506480

  • №
    Артикул
    Название
  • 1
    12022A13 BRACKET ASSEMBLY
    (MERCURY)
    BRACKET ASSEMBLY
    (MERCURY)
  • 1
    12022A14 BRACKET ASSEMBLY
    (MARINER)
    BRACKET ASSEMBLY
    (MARINER)
  • 2
    79-12012A1 TACHOMETER ASSEMBLY
    TACHOMETER ASSEMBLY
  • 3
    11-113161 NUT
    NUT
  • 4
    16-12782 STUD, BRACKET
    STUD, BRACKET
  • 5
    15126 SPACER
    SPACER
  • 6
    14-12080 TAB WASHER
    TAB WASHER
  • 7
    11-4002016 NUT
    NUT
  • 8
    121051 GROMMET
    GROMMET
  • 9
    84-12649A2 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 10
    87-88107A5 KEY SWITCH (SEE BELOW FOR KEY LISTING)
    KEY SWITCH (SEE BELOW FOR KEY LISTING)
  • 11
    11-879755 NUT, Special - Chrome Brass, KEY SWITCH
    NUT, Special - Chrome Brass, KEY SWITCH
  • 12
    120151 COVER, BRACKET
    COVER, BRACKET
  • 13
    10-72169 SCREW, (#10-24 x .500), BRACKET COVER
    SCREW, (#10-24 x .500), BRACKET COVER
  • 14
    19-889730 PLUG
    PLUG
  • 15
    87-11083A4 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 16
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 17
    8M0032846 RETANER, STOP SWITCH
    RETANER, STOP SWITCH
  • 18
    10-4000358 SCREW, (M8 x 50), SHIFT LEVER
    SCREW, (M8 x 50), SHIFT LEVER
  • 19
    14-42981 TAB WASHER
    TAB WASHER
  • 20
    23-889732 BUSHING
    BUSHING
  • 21
    12021A1 LEVER, Shift
    LEVER, Shift
  • 22
    8M0091388 DETENT ASSEMBLY
    DETENT ASSEMBLY
  • 23
    16-8M0034452 STUD, (.375-24 x 1.125), SHIFT LEVER
    STUD, (.375-24 x 1.125), SHIFT LEVER
  • 24
    98530 KNOB, SHIFT LEVER
    KNOB, SHIFT LEVER
  • 25
    495636 SHIFT ROD
    SHIFT ROD
  • 26
    48419T ROD END
    ROD END
  • 27
    23-26856 BUSHING
    BUSHING
  • 28
    12-35950 WASHER, (.273 x .437 x .031) Stainless Steel, SHIFT ROD
    WASHER, (.273 x .437 x .031) Stainless Steel, SHIFT ROD
  • 29
    18-25191 COTTER PIN, SHIFT ROD
    COTTER PIN, SHIFT ROD
  • 30
    87-93479A7 SWITCH ASSEMBLY, Neutral Start
    SWITCH ASSEMBLY, Neutral Start
  • 31
    12609 BRACKET, PRIMARY
    BRACKET, PRIMARY
  • 32
    126101 BRACKET, SWITCH
    BRACKET, SWITCH
  • 33
    10-90342 SCREW, (#4-40 x .630), SWITCH TO BRACKET
    SCREW, (#4-40 x .630), SWITCH TO BRACKET
  • 34
    11-24832 NUT, (#4-40), SWITCH SCREW
    NUT, (#4-40), SWITCH SCREW
  • 35
    10-57583T SCREW, (#8-32 x .375), BRACKET TO BRACKET
    SCREW, (#8-32 x .375), BRACKET TO BRACKET
  • 36
    12-20878 WASHER, BRACKET SCREW
    WASHER, BRACKET SCREW
  • 37
    11-26419 NUT, (#8-32) Brass, BRACKET SCREW
    NUT, (#8-32) Brass, BRACKET SCREW
  • -
    894911 KEY, Ignition (1A)
    KEY, Ignition (1A)
  • -
    894912 KEY, Ignition (1B)
    KEY, Ignition (1B)
  • -
    894913 KEY, Ignition (1C)
    KEY, Ignition (1C)
  • -
    894914 KEY, Ignition (1D)
    KEY, Ignition (1D)
  • -
    894915 KEY, Ignition (1E)
    KEY, Ignition (1E)
  • -
    894916 KEY, Ignition (1F)
    KEY, Ignition (1F)
  • -
    894917 KEY, Ignition (2A)
    KEY, Ignition (2A)
  • -
    894918 KEY, Ignition (2B)
    KEY, Ignition (2B)
  • -
    894919 KEY, Ignition (2C)
    KEY, Ignition (2C)
  • -
    8949110 KEY, Ignition (2D)
    KEY, Ignition (2D)
  • -
    8949111 KEY, Ignition (2E)
    KEY, Ignition (2E)
  • -
    8949112 KEY, Ignition (2F)
    KEY, Ignition (2F)
