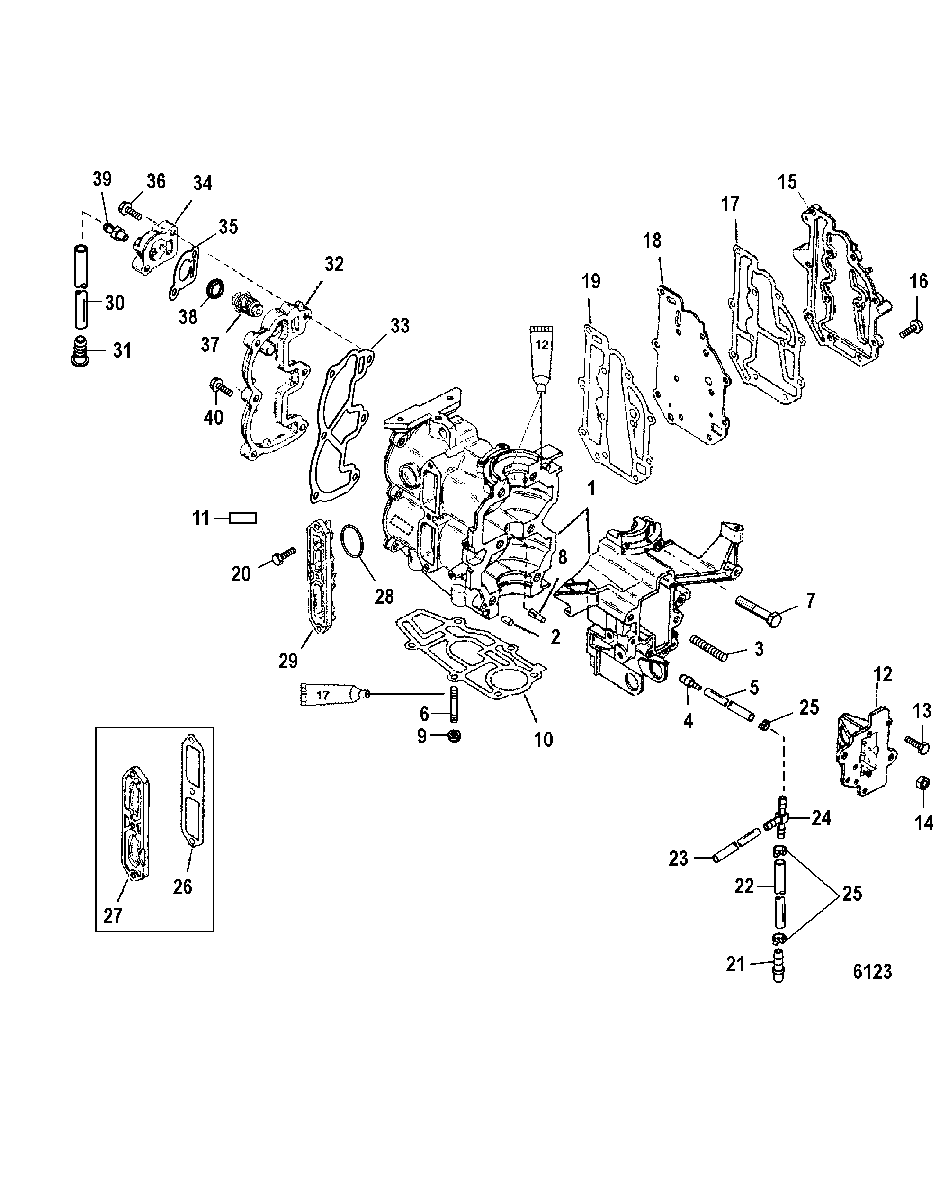

Cylinder Block and Covers для Mariner - 8 1B000001 & Up

  • №
    Артикул
    Название
  • 1
    875-8473T21 CYLINDER BLOCK
    (8)
    CYLINDER BLOCK
    (8)
  • 1
    881-9727T12 CYLINDER BLOCK
    (9.9/15)
    CYLINDER BLOCK
    (9.9/15)
  • 2
    17-85171 PIN, Dowel
    PIN, Dowel
  • 3
    16-424632 STUD, (M8 x 37.1)
    STUD, (M8 x 37.1)
  • 4
    21-426982 CHECK VALVE
    CHECK VALVE
  • 5
    32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 2.50 Inch Length)
    TUBING, (240.00 Inches Bulk) (Cut to 2.50 Inch Length)
  • 6
    16-8161949 STUD
    STUD
  • 7
    10-421251 SCREW, (M8 x 55)
    SCREW, (M8 x 55)
  • 8
    17-17866 PIN, Groove
    (9.9/15)
    PIN, Groove
    (9.9/15)
  • 9
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 10
    27-191861 GASKET, Powerhead
    GASKET, Powerhead
  • 11
    NSS NOT SOLD SEPARATE, Decal-Serialization
    NOT SOLD SEPARATE, Decal-Serialization
  • 12
    828435A3 REED BLOCK
    REED BLOCK
  • 13
    10-4000171 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 14
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 15
    8M0048005 COVER, Exhaust
    COVER, Exhaust
  • 16
    10-40062129 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 17
    27-19185 GASKET
    GASKET
  • 18
    42365 PLATE, Baffle
    PLATE, Baffle
  • 19
    27-19184 GASKET
    GASKET
  • 20
    10-40062129 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 21
    22-56759 FITTING, Barbed
    FITTING, Barbed
  • 22
    32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 7.00 Inch Length)
    TUBING, (240.00 Inches Bulk) (Cut to 7.00 Inch Length)
  • 23
    32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 5.25 Inch Length)
    TUBING, (240.00 Inches Bulk) (Cut to 5.25 Inch Length)
  • 24
    22-59169003 FITTING, Tee
    FITTING, Tee
  • 25
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 26
    27-192031 GASKET
    (8)
    GASKET
    (8)
  • 27
    19107F1 COVER, Intake
    (8)
    COVER, Intake
    (8)
  • 28
    25-891935 O-RING
    (9.9/15)
    O-RING
    (9.9/15)
  • 29
    8M0036812 COVER, Intake
    (9.9/15)
    COVER, Intake
    (9.9/15)
  • 30
    32-8M0108355 HOSE, (57.00 Inches Bulk), Tell Tale (Cut to 6.00 Inch Length)
    HOSE, (57.00 Inches Bulk), Tell Tale (Cut to 6.00 Inch Length)
  • 31
    22-94848 FITTING
    FITTING
  • 32
    1033-8906A02 COVER ASSEMBLY
    COVER ASSEMBLY
  • 33
    27-19207002 GASKET
    GASKET
  • 34
    8M0039352 COVER, Thermostat
    COVER, Thermostat
  • 35
    27-19205002 GASKET
    GASKET
  • 36
    10-40062129 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 37
    14586 THERMOSTAT (120 Degrees)
    THERMOSTAT (120 Degrees)
  • 38
    27-62386001 GASKET
    GASKET
  • 39
    22-291112 FITTING
    FITTING
  • 40
    10-40062129 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • -
    27-42364A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    811686T97 POWERHEAD ASSEMBLY
    (8)
    POWERHEAD ASSEMBLY
    (8)
  • -
    19072T97 POWERHEAD ASSEMBLY
    (9.9/15)
    POWERHEAD ASSEMBLY
    (9.9/15)
  • -
    10-4000328 SCREW, (M6 x 16)
    (Electric)
    SCREW, (M6 x 16)
    (Electric)
