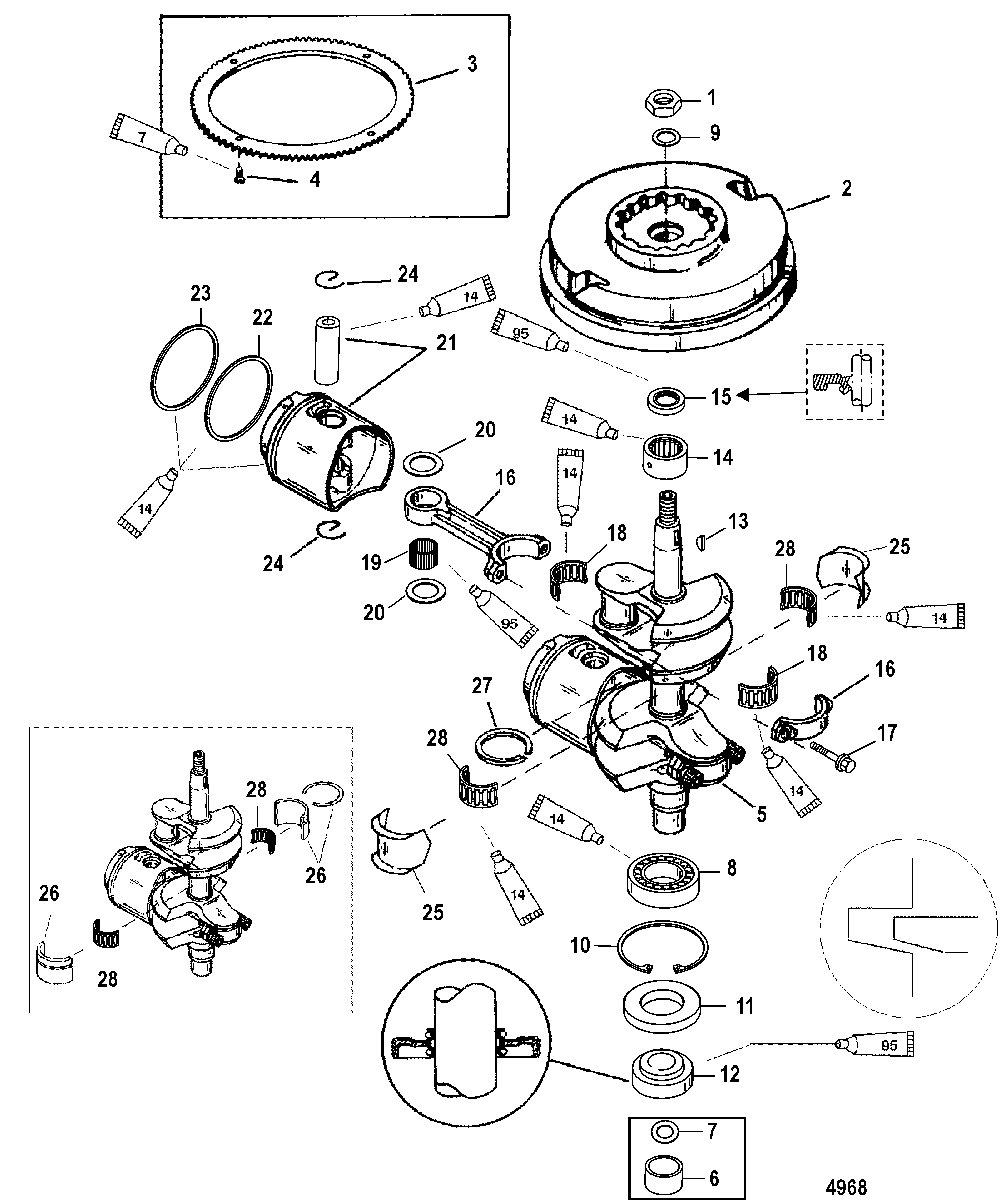

Crankshaft, Pistons and Flywheel для Mariner - 8 0T980000 THRU 0T999999

  • №
    Артикул
    Название
  • 1
    11-818591 NUT, (M14)
    NUT, (M14)
  • 2
    260-859231T18 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 3
    43-99301 RING GEAR
    (Electric)
    RING GEAR
    (Electric)
  • 4
    10-88190313 SCREW, (M5 x 13)
    (Electric)
    SCREW, (M5 x 13)
    (Electric)
  • 5
    400-8M0083309 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 6
    818630A1 SLEEVE
    SLEEVE
  • 7
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 8
    30-41341 BEARING, Ball
    BEARING, Ball
  • 9
    12-824451 WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)
    WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)
  • 10
    53-42132 RING, Retaining
    RING, Retaining
  • 11
    12-13031 WASHER
    WASHER
  • 12
    26-125661 SEAL, Oil - Lower
    SEAL, Oil - Lower
  • 13
    28-20094 KEY, Woodruff
    KEY, Woodruff
  • 14
    31-878158 BEARING, Roller
    BEARING, Roller
  • 15
    26-125671 SEAL, Oil - Upper
    SEAL, Oil - Upper
  • 16
    637-8477A2 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 17
    10-823460 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 18
    31-42076A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 19
    29-42186 BEARING, Needle
    BEARING, Needle
  • 20
    12-8M0012297 BEARING, Thrust
    BEARING, Thrust
  • 21
    773-9756T2 PISTON ASSEMBLY
    (8)
    PISTON ASSEMBLY
    (8)
  • 21
    784-9747T2 PISTON ASSEMBLY
    (9.9/15)(Standard)
    PISTON ASSEMBLY
    (9.9/15)(Standard)
  • 21
    784-9747A4 PISTON ASSEMBLY
    (9.9/15)(.015 Over Size)
    PISTON ASSEMBLY
    (9.9/15)(.015 Over Size)
  • 22
    39-18514A4 RING SET, Piston
    (8)
    RING SET, Piston
    (8)
  • 22
    39-18212A4 RING SET, Piston
    (9.9/15)(Standard)
    RING SET, Piston
    (9.9/15)(Standard)
  • 22
    39-18212A1 RING SET, Piston
    (9.9/15)(.015)(Over Size)
    RING SET, Piston
    (9.9/15)(.015)(Over Size)
  • 23
    NSS NOT SOLD SEPARATE, Piston Ring-Top
    (8)
    NOT SOLD SEPARATE, Piston Ring-Top
    (8)
  • 23
    NSS NOT SOLD SEPARATE, Piston Ring-Top
    (9.9/15)(Standard)
    NOT SOLD SEPARATE, Piston Ring-Top
    (9.9/15)(Standard)
  • 24
    40-422021 LOCK RING
    LOCK RING
  • 25
    41373A1 BEARING KIT, Center Main
    (6/8)
    BEARING KIT, Center Main
    (6/8)
  • 26
    17794A1 BEARING
    (9.9/15)
    BEARING
    (9.9/15)
  • 27
    26-818901 SEAL
    SEAL
  • 28
    31-42076A1 BEARING ASSEMBLY, Roller
    (9.9/15)
    BEARING ASSEMBLY, Roller
    (9.9/15)
  • -
    811686T97 POWERHEAD ASSEMBLY
    (8)
    POWERHEAD ASSEMBLY
    (8)
  • -
    19072T97 POWERHEAD ASSEMBLY
    (9.9/15)
    POWERHEAD ASSEMBLY
    (9.9/15)
