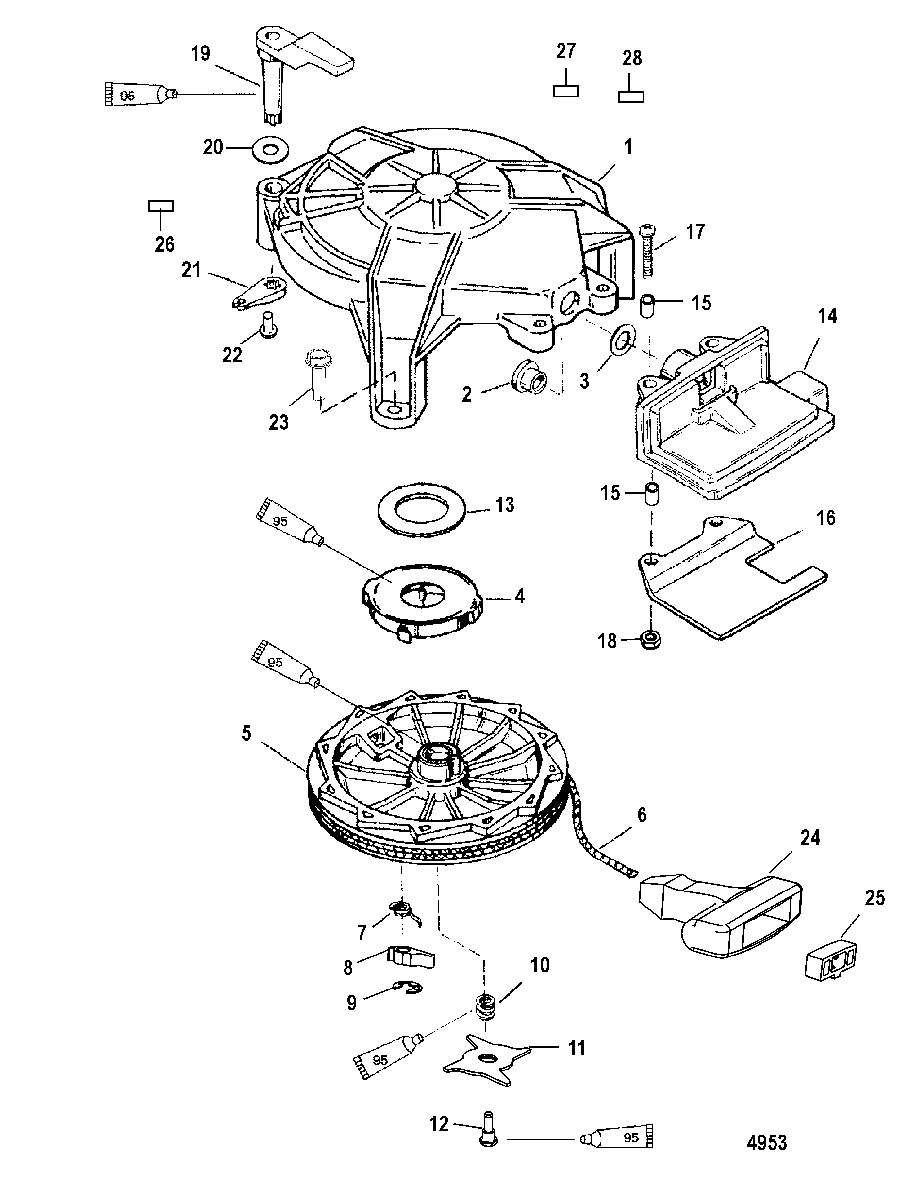

Manual Starter для Mariner - 8 0P017000 THRU 0P325499
-
№АртикулНазвание
-
-42207A7 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
18M0070659 HOUSING ASSEMLBY, Manual StarterHOUSING ASSEMLBY, Manual Starter
-
18M0070659 HOUSING, StarterHOUSING, Starter
-
242690 BUSHINGBUSHING
-
353-818853 RING, RetainingRING, Retaining
-
424-86857T01 SPRINGSPRING
-
542034T04 PULLEY ASSEMBLY, StarterPULLEY ASSEMBLY, Starter
-
650-8M0110703 ROPE, StarterROPE, Starter
-
724-86851T02 SPRINGSPRING
-
8868501 CAMCAM
-
953-86849T01 RING, RetainingRING, Retaining
-
1024-868523 SPRINGSPRING
-
1186853T01 CAMCAM
-
1210-826253 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
13833161T FELT PADFELT PAD
-
1419018T RESTREST
-
1523-309772 SPACERSPACER
-
1612674 SUPPORTSUPPORT
-
1710-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
1811-401385 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
1942171T LEVER (Upper)LEVER (Upper)
-
2012-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2142173T LEVER (Lower)LEVER (Lower)
-
2210-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2310-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
2485174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
25NSS NOT SOLD SEPARATE (Retainer)NOT SOLD SEPARATE (Retainer)
-
26NSS NOT SOLD SEPARATE (Decal-Servicing Referral)NOT SOLD SEPARATE (Decal-Servicing Referral)
-
2737-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
-
28NSS NOT SOLD SEPARATE (Decal-Emergency Starting Procedure)NOT SOLD SEPARATE (Decal-Emergency Starting Procedure)
