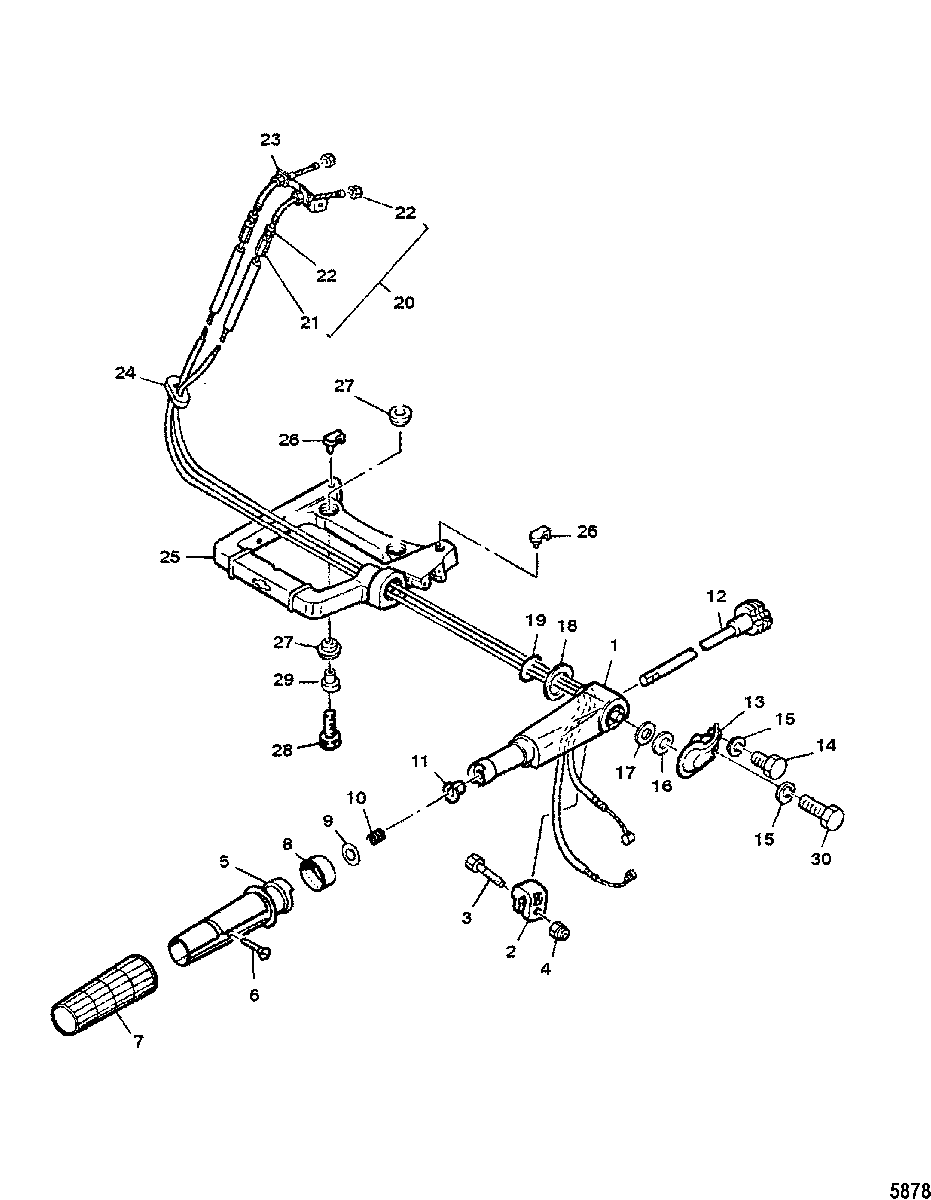

STEERING HANDLE для Mariner - 8 K-LONG 680-348706 & Up
-
№АртикулНазвание
-
183093M STEERING HANDLESTEERING HANDLE
-
282895M FRICTION PIECEFRICTION PIECE
-
310-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
411-83056M NUTNUT
-
580504M GRIPGRIP
-
610-811916M SCREWSCREW
-
780509M RUBBERRUBBER
-
895606M INDICATORINDICATOR
-
912-82220M WASHERWASHER
-
1024-82095M SPRINGSPRING
-
1123-81945M BUSHINGBUSHING
-
1281280M LEVERLEVER
-
1395614M CAPCAP
-
1410-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1512-82214M WASHERWASHER
-
1623-80506M SPACER
(0.5MM)SPACER
(0.5MM) -
1623-898103217 SPACER
(0.6MM)SPACER
(0.6MM) -
1623-80508M SPACER
(0.8MM)SPACER
(0.8MM) -
1723-82118M SPACERSPACER
-
1823-82121M SPACERSPACER
-
1925-82272M O-RINGO-RING
-
2095405M THROTTLE CABLE ASSEMBLYTHROTTLE CABLE ASSEMBLY
-
2111-81778M ADJUSTING NUTADJUSTING NUT
-
2211-81761M NUTNUT
-
2381037M STAYSTAY
-
2425-81373M GROMMETGROMMET
-
2581054M STEERING BRACKETSTEERING BRACKET
-
2680510M SPACERSPACER
-
2725-80515M GROMMETGROMMET
-
2810-804159 BOLT, (M8 x 35)BOLT, (M8 x 35)
-
2982956M BUSHINGBUSHING
-
3010-827043M BOLTBOLT
