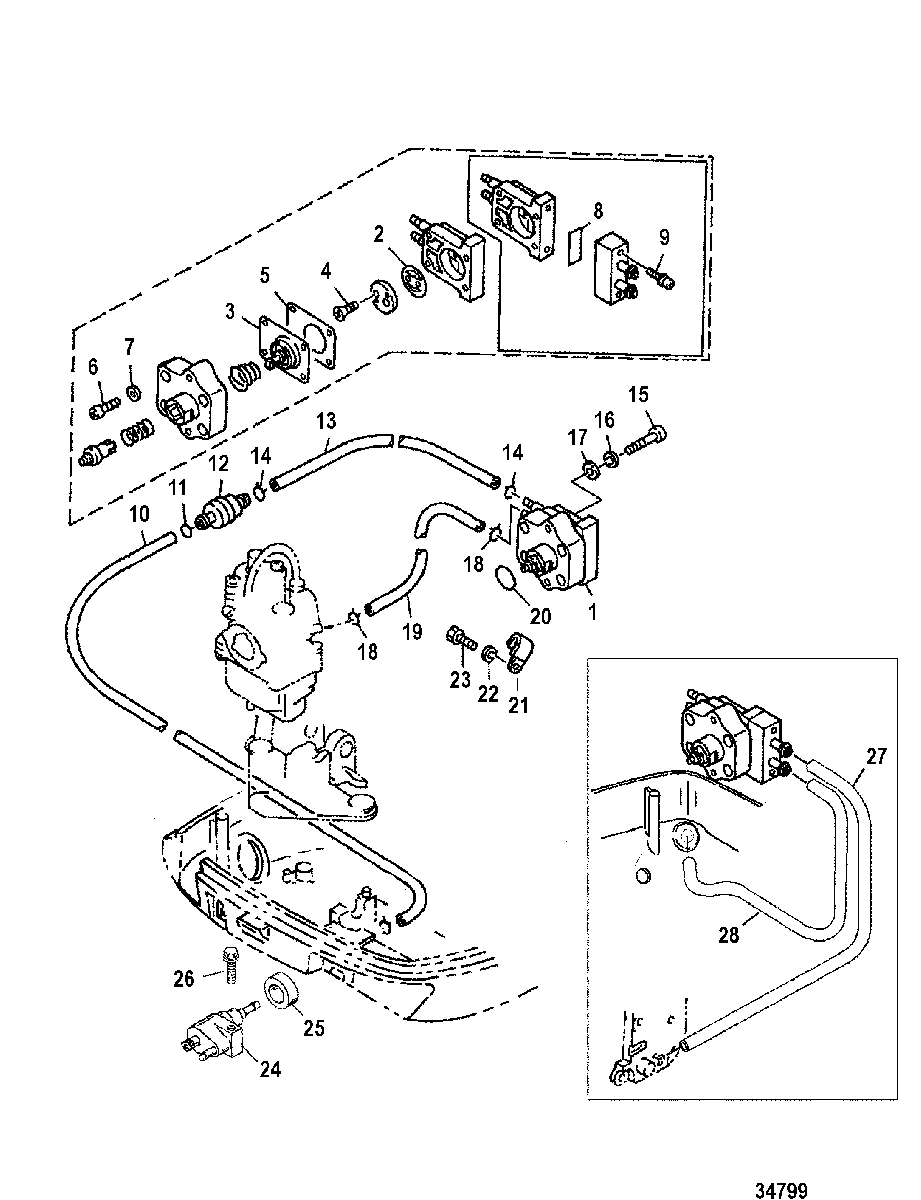

Fuel Pump для Mariner - 8 (BODENSEE) 4-STROKE (International) 0H017100 THRU 0H017265

  • №
    Артикул
    Название
  • 1
    825470T PUMP, Fuel
    PUMP, Fuel
  • 2
    827441M CHECK VALVE
    CHECK VALVE
  • 3
    827442M DIAPHRAGM
    DIAPHRAGM
  • 4
    10-827443M SCREW
    SCREW
  • 5
    809129M DIAPHRAGM
    DIAPHRAGM
  • 6
    10-83509M SCREW, Idle Speed
    SCREW, Idle Speed
  • 7
    12-82847M WASHER
    WASHER
  • 8
    809130M SEAL
    SEAL
  • 9
    10-80954M SCREW
    SCREW
  • 10
    32-9912878 HOSE, (.187) (26.00 Inches Bulk), Cut to 21 Inches
    HOSE, (.187) (26.00 Inches Bulk), Cut to 21 Inches
  • 11
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 12
    35-80365M FILTER
    FILTER
  • 13
    32-825632 HOSE
    HOSE
  • 14
    54-82047M CLAMP
    CLAMP
  • 15
    10-40019130 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 16
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 17
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 18
    54-82047M CLAMP
    CLAMP
  • 19
    32-82012M HOSE
    HOSE
  • 20
    25-825478 O-RING
    O-RING
  • 21
    54-54457 J CLIP
    J CLIP
  • 22
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 23
    10-4000326 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 24
    22-15781A5 CONNECTOR, Fuel - Brass
    CONNECTOR, Fuel - Brass
  • 25
    25-18202 GROMMET
    GROMMET
  • 26
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 27
    32-9912878 HOSE, (.187) (26.00 Inches Bulk), Cut to 10 Inches
    HOSE, (.187) (26.00 Inches Bulk), Cut to 10 Inches
  • 28
    32-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 10 Inches
    HOSE, (57.00 Inches Bulk), Cut to 10 Inches
