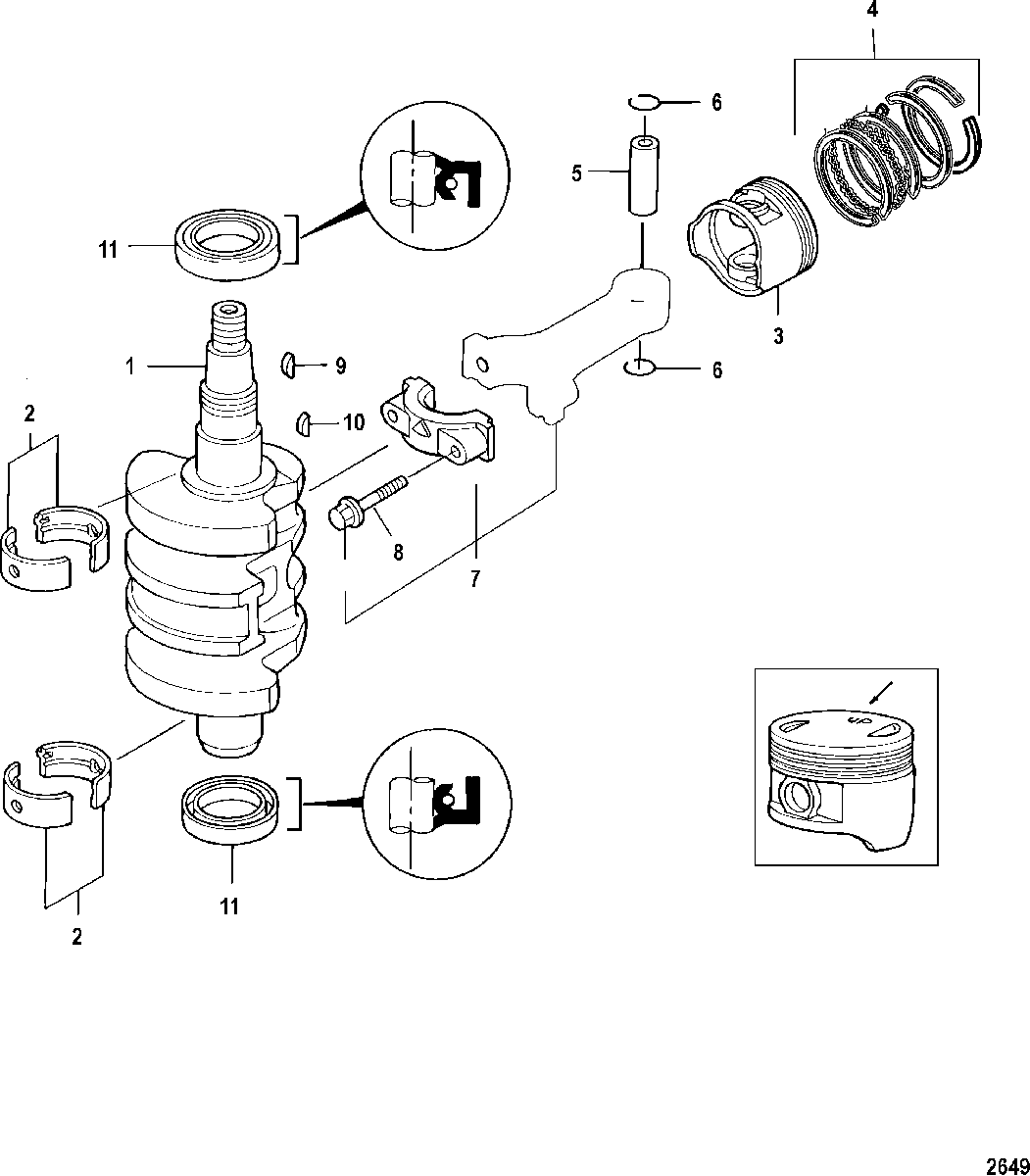

Crankshaft, Pistons and Connecting Rods, 0R310615 and Up для Mariner - 8 (4-STROKE)(209cc) 0R042475 & Up

№

Артикул

Название
1

400-834957T01 CRANKSHAFT

CRANKSHAFT

22 660 ₽
2

31-8M0054680 BEARING, Black

BEARING, Black

1 730 ₽
2

31-8M0054681 BEARING, Brown

BEARING, Brown

1 710 ₽
3

700-834963A02 PISTON ASSEMBLY
Standard

PISTON ASSEMBLY
Standard

5 710 ₽
3

700-834963A04 PISTON ASSEMBLY
.5mm Oversize

PISTON ASSEMBLY
.5mm Oversize

16 190 ₽
3

700-834963A02 PISTON ASSEMBLY
Standard-Bare Piston

PISTON ASSEMBLY
Standard-Bare Piston

5 710 ₽
3

700-834963T04 PISTON ASSEMBLY
.5mm Oversize-Bare Piston

PISTON ASSEMBLY
.5mm Oversize-Bare Piston

3 980 ₽
4

39-803678T05 RING SET, Piston
(Standard) Services engine

RING SET, Piston
(Standard) Services engine

3 300 ₽
4

39-898103T35 RING SET, Piston
(Standard) Services one piston

RING SET, Piston
(Standard) Services one piston

7 470 ₽
4

39-803678T06 RING SET, Piston
.5mm Oversize

RING SET, Piston
.5mm Oversize

13 830 ₽
5

41-825713002 PIN, Piston

PIN, Piston

810 ₽
6

53-16057 CLIP, Piston Pin

CLIP, Piston Pin

120 ₽
7

600-8M0125694 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY

0 ₽
8

10-8035092 BOLT

BOLT

1 240 ₽
9

28-825666001 KEY

KEY

220 ₽
10

28-825666001 KEY, Drive Pulley

KEY, Drive Pulley

220 ₽
11

26-855681001 SEAL, Oil

SEAL, Oil

1 870 ₽
-

27-835427A04 GASKET SET, Powerhead

GASKET SET, Powerhead

15 440 ₽
-

8M0046065 POWERHEAD ASSEMBLY

POWERHEAD ASSEMBLY

141 140 ₽
