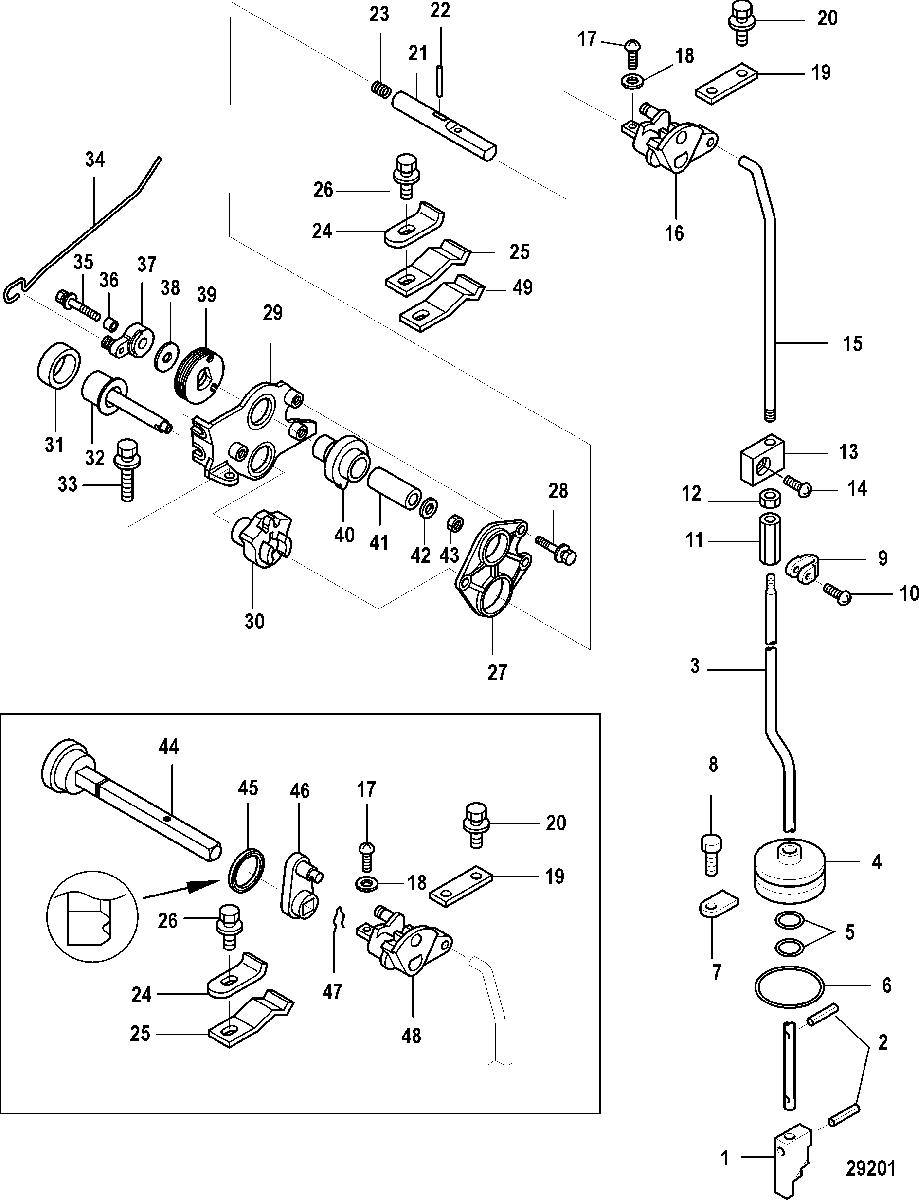

Shift Components, Bigfoot для Mariner - 8 (4-STROKE)(209cc) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    898103166 CAM, Clutch
    Component of Complete Gear Housing SN# 0R163800 & Below
    CAM, Clutch
    Component of Complete Gear Housing SN# 0R163800 & Below
  • 1
    898103166 CAM, Clutch
    Component of Complete Gear Housing SN# 0R163801 & Up
    CAM, Clutch
    Component of Complete Gear Housing SN# 0R163801 & Up
  • 1
    898103166 CAM, Clutch
    Component of Complete Gear Housing SN# 0P490475 & Below
    CAM, Clutch
    Component of Complete Gear Housing SN# 0P490475 & Below
  • 1
    898103166 CAM, Clutch
    Component of Complete Gear Housing SN# 0P490476 & Up
    CAM, Clutch
    Component of Complete Gear Housing SN# 0P490476 & Up
  • 2
    17-16179 PIN
    Component of Complete Gear Housing
    PIN
    Component of Complete Gear Housing
  • 3
    803760010 ROD, Cam
    Long-Component of Complete Gear Housing
    ROD, Cam
    Long-Component of Complete Gear Housing
  • 3
    803760011 ROD, Cam
    X-Long-Component of Complete Gear Housing-Component of X-Long Extension Housing Kit
    ROD, Cam
    X-Long-Component of Complete Gear Housing-Component of X-Long Extension Housing Kit
  • 4
    23-803761 BUSHING
    Component of Complete Gear Housing
    BUSHING
    Component of Complete Gear Housing
  • 5
    25-161772 O-RING
    Component of Complete Gear Housing
    O-RING
    Component of Complete Gear Housing
  • 6
    25-8537096 O-RING
    Component of Complete Gear Housing
    O-RING
    Component of Complete Gear Housing
  • 7
    803762 CLAMP
    Component of Complete Gear Housing
    CLAMP
    Component of Complete Gear Housing
  • 8
    10-898103153 SCREW
    Component of Complete Gear Housing
    SCREW
    Component of Complete Gear Housing
  • 9
    810753004 STOPPER
    STOPPER
  • 10
    10-855544018 SCREW
    SCREW
  • 11
    803767002 COUPLER
    COUPLER
  • 12
    11-16081 NUT, Stainless Steel
    NUT, Stainless Steel
  • 13
    804906001 LOCK , Reverse
    LOCK , Reverse
  • 14
    10-879194329 SCREW
    SCREW
  • 15
    803766003 SHIFT SHAFT, Upper
    SHIFT SHAFT, Upper
  • 16
    802971001 SHIFT DETENT
    SHIFT DETENT
  • 17
    10-855544014 SCREW
    SCREW
  • 18
    12-16335 WASHER
    WASHER
  • 19
    895157 BRACKET
    BRACKET
  • 20
    10-8230427 BOLT
    BOLT
  • 21
    892771 SHAFT
    SHAFT
  • 22
    17-16085003 PIN
    PIN
  • 23
    24-813028003 SPRING
    SPRING
  • 24
    8518641 CLAMP
    SN# 0R163800 & Below
    CLAMP
    SN# 0R163800 & Below
  • 24
    803756003 CLAMP
    SN# 0R163801 & Up
    CLAMP
    SN# 0R163801 & Up
  • 24
    8518641 CLAMP
    SN# 0P490475 & Below
    CLAMP
    SN# 0P490475 & Below
  • 24
    803756003 CLAMP
    SN# 0P490476 & Up
    CLAMP
    SN# 0P490476 & Up
  • 25
    803756002 SHIFT DETENT
    SN# 0R163800 & Below
    SHIFT DETENT
    SN# 0R163800 & Below
  • 25
    803756004 SHIFT DETENT
    SN# 0R163801 & Up
    SHIFT DETENT
    SN# 0R163801 & Up
  • 25
    803756002 SHIFT DETENT
    SN# 0P490475 & Below
    SHIFT DETENT
    SN# 0P490475 & Below
  • 25
    803756004 SHIFT DETENT
    SN# 0P490476 & Up
    SHIFT DETENT
    SN# 0P490476 & Up
  • 26
    10-8230427 BOLT
    BOLT
  • 27
    895159 GEAR PLATE
    GEAR PLATE
  • 28
    10-823042 BOLT, Stainless Steel
    BOLT, Stainless Steel
  • 29
    895158 GEAR PLATE
    GEAR PLATE
  • 30
    895161 GEAR, Driven
    GEAR, Driven
  • 31
    26-16219002 SEAL
    SEAL
  • 32
    892772 KNOB
    KNOB
  • 33
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 34
    803574002 ROD, Throttle
    ROD, Throttle
  • 35
    10-8M0102279 BOLT, Stainless Steel
    BOLT, Stainless Steel
  • 36
    23-895126 COLLAR, (6 mm)
    COLLAR, (6 mm)
  • 37
    803572001 OPENER, Throttle
    OPENER, Throttle
  • 38
    12-953921 WASHER
    WASHER
  • 39
    895101401 DRUM, Throttle
    DRUM, Throttle
  • 40
    895101400 GEAR, Drive
    GEAR, Drive
  • 41
    23-895162001 COLLAR, Steel
    COLLAR, Steel
  • 42
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 43
    11-8537227 NUT, Nylon
    NUT, Nylon
  • 44
    851865003 SHIFT SHAFT
    Remote Control
    SHIFT SHAFT
    Remote Control
  • 45
    26-16219003 SEAL
    Remote Control
    SEAL
    Remote Control
  • 46
    803763005 LEVER, Shift
    Remote Control SN# 0R163800 & Below
    LEVER, Shift
    Remote Control SN# 0R163800 & Below
  • 46
    898101904 LEVER, Shift
    Remote Control SN# 0R163801 & Up
    LEVER, Shift
    Remote Control SN# 0R163801 & Up
  • 46
    803763005 LEVER, Shift
    Remote Control SN# 0P490475 & Below
    LEVER, Shift
    Remote Control SN# 0P490475 & Below
  • 46
    898101904 LEVER, Shift
    Remote Control SN# 0P490476 & Up
    LEVER, Shift
    Remote Control SN# 0P490476 & Up
  • 47
    54-851863 CLIP
    CLIP
  • 48
    802971002 SHIFT DETENT
    SHIFT DETENT
  • 49
    803756004 SHIFT DETENT
    SN# 0R163801 & Up
    SHIFT DETENT
    SN# 0R163801 & Up
  • 49
    803756004 SHIFT DETENT
    SN# 0P490476 & Up
    SHIFT DETENT
    SN# 0P490476 & Up
  • -
    27-8M0082884 GASKET SET, Lower Unit
    GASKET SET, Lower Unit
