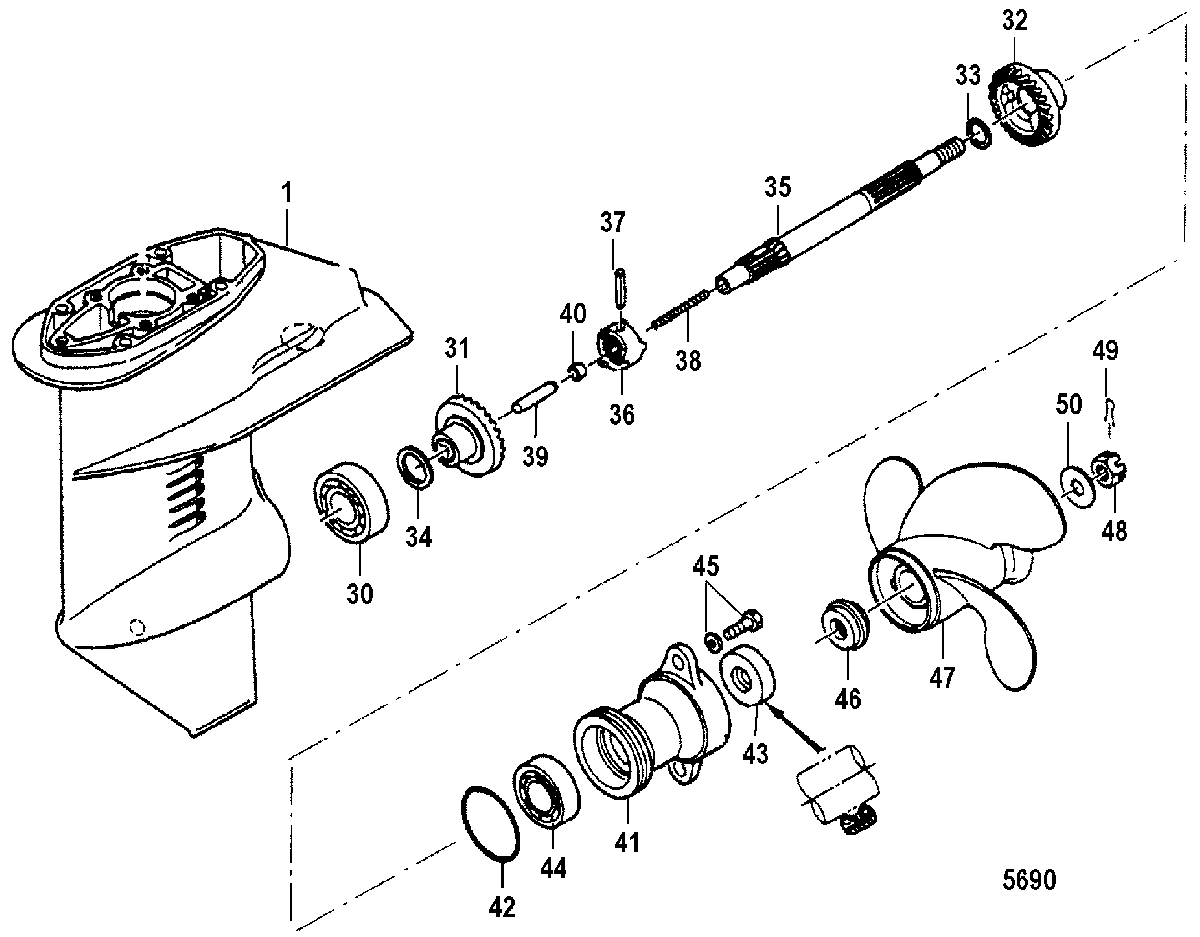

Gear Housing, Propeller Shaft для Mariner - 8 (2 Cyl.)(International) 0N055110 & Up
-
№АртикулНазвание
-
-1668-8M0070901 GEAR HOUSING ASSEMBLY, Complete
(Short)GEAR HOUSING ASSEMBLY, Complete
(Short) -
-1668-8M0070902 GEAR HOUSING ASSEMBLY, Complete
(Long)GEAR HOUSING ASSEMBLY, Complete
(Long) -
11668-803729A14 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
3030-8037331 BEARING, BallBEARING, Ball
-
3143-8037391 GEAR, ForwardGEAR, Forward
-
3243-8037411 GEAR, ReverseGEAR, Reverse
-
3312-16140 WASHERWASHER
-
3415-16141 SHIM, (0.1)SHIM, (0.1)
-
3415-813277 SHIM, (0.15)SHIM, (0.15)
-
3544-8M0070782 PROPELLER SHAFTPROPELLER SHAFT
-
3652-8037451 CLUTCHCLUTCH
-
3717-16150 PIN, ClutchPIN, Clutch
-
3824-892777002 SPRING, (51 mm)SPRING, (51 mm)
-
3824-892777002 SPRING, (58 mm)SPRING, (58 mm)
-
3916152 FOLLOWER, CamFOLLOWER, Cam
-
408537642 RETAINERRETAINER
-
418M0070876 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
4225-16131 O-RINGO-RING
-
4326-16130 SEAL, OilSEAL, Oil
-
4430-16128 BEARING, BallBEARING, Ball
-
4510-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
468M0131240 THRUST HOLDERTHRUST HOLDER
-
4748-897610A10 PROPELLER, (6.5)PROPELLER, (6.5)
-
4748-897614A10 PROPELLER, (7)PROPELLER, (7)
-
4748-897614A10 BLACK MAX PROPELLER, (7.5)BLACK MAX PROPELLER, (7.5)
-
4748-897618A10 PROPELLER, (8.5)PROPELLER, (8.5)
-
4811-16147 PROP NUTPROP NUT
-
4918-815026 COTTER PINCOTTER PIN
-
5012-16146 WASHERWASHER
-
-27-8M0082883 GASKET SET, Lower UnitGASKET SET, Lower Unit
