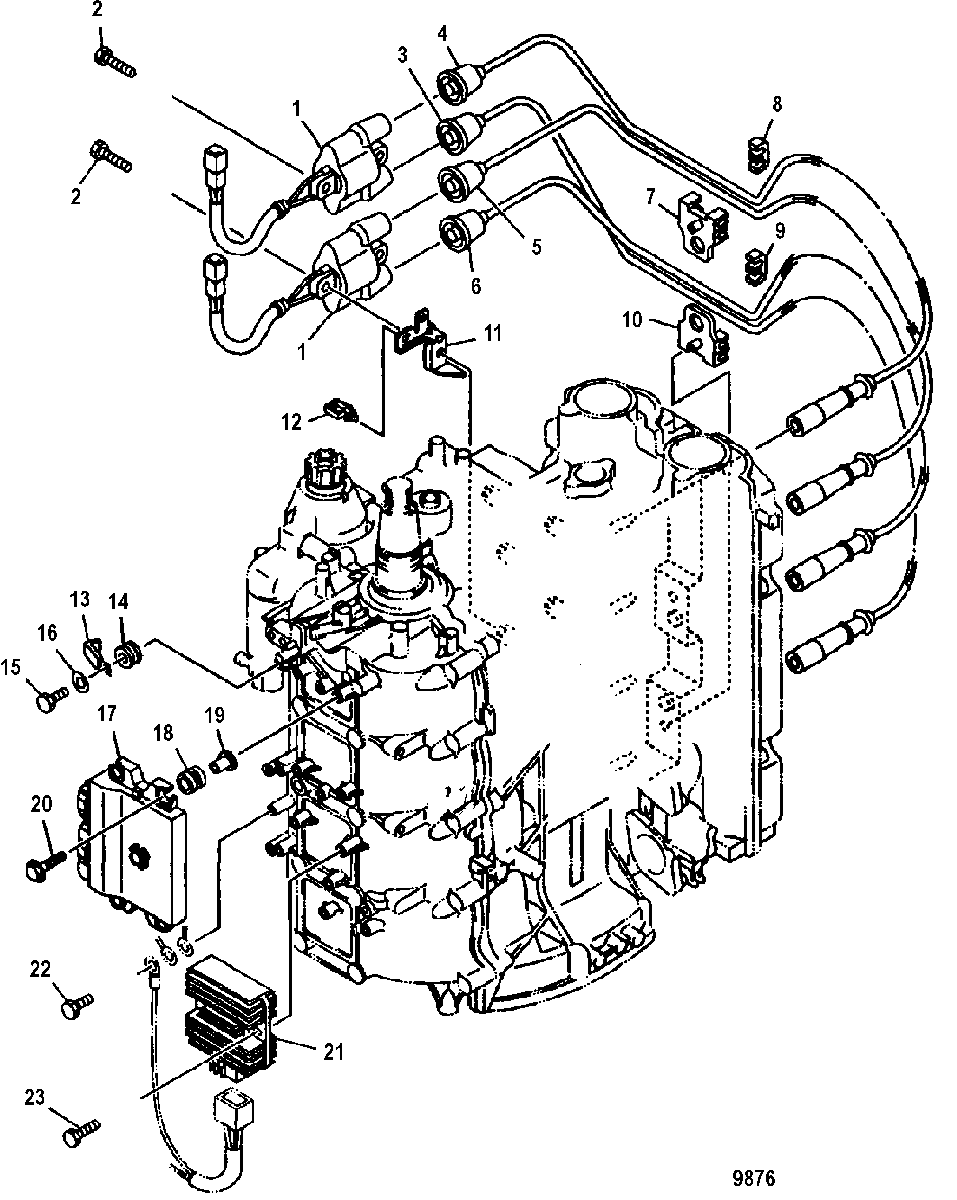

Electrical Components, Ignition Coil and ECU Mounting для Mariner - 75 EFI (4-STROKE) 1B172291 THRU 1B366822

  • №
    Артикул
    Название
  • 1
    339-880892001 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 2
    10-853536 BOLT, (M6 x 25)
    BOLT, (M6 x 25)
  • 3
    84-804272A1 CABLE SET, Hi Tension
    CABLE SET, Hi Tension
  • 4
    NSS NOT SOLD SEPARATE, High Tension Lead
    NOT SOLD SEPARATE, High Tension Lead
  • 5
    NSS NOT SOLD SEPARATE, High Tension Lead
    NOT SOLD SEPARATE, High Tension Lead
  • 6
    NSS NOT SOLD SEPARATE, High Tension Lead
    NOT SOLD SEPARATE, High Tension Lead
  • 7
    54-804277 CLAMP
    CLAMP
  • 8
    54-804276 CLAMP
    CLAMP
  • 9
    54-804276 CLAMP
    CLAMP
  • 10
    54-804277 CLAMP
    CLAMP
  • 11
    888239002 PLATE
    PLATE
  • 12
    54-888588001 CLAMP
    CLAMP
  • 13
    54-888588002 CLAMP
    CLAMP
  • 14
    25-804082001 GROMMET
    GROMMET
  • 15
    10-84368M BOLT
    BOLT
  • 16
    12-82214M WASHER
    WASHER
  • 17
    880891T03 ECU, Engine Control Unit
    (75)
    ECU, Engine Control Unit
    (75)
  • 17
    880891T16 ECU, Engine Control Unit
    (80 EU)
    ECU, Engine Control Unit
    (80 EU)
  • 17
    8M0121259 ECU, Engine Control Unit
    (90) SN# 1B226999 & Below
    ECU, Engine Control Unit
    (90) SN# 1B226999 & Below
  • 17
    8M0121259 ECU, Engine Control Unit
    (90) SN# 1B227000 & Up
    ECU, Engine Control Unit
    (90) SN# 1B227000 & Up
  • 17
    880891T17 ECU, Engine Control Unit
    (100 EU)
    ECU, Engine Control Unit
    (100 EU)
  • 18
    25-881304 GROMMET
    GROMMET
  • 19
    23-804344003 COLLAR
    COLLAR
  • 20
    10-804270 BOLT, (M6 x 28)
    BOLT, (M6 x 28)
  • 21
    881346T RECTIFIER/REGULATOR ASSEMBLY
    RECTIFIER/REGULATOR ASSEMBLY
  • 22
    10-804604 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 23
    10-853536 BOLT, (M6 x 25)
    BOLT, (M6 x 25)
