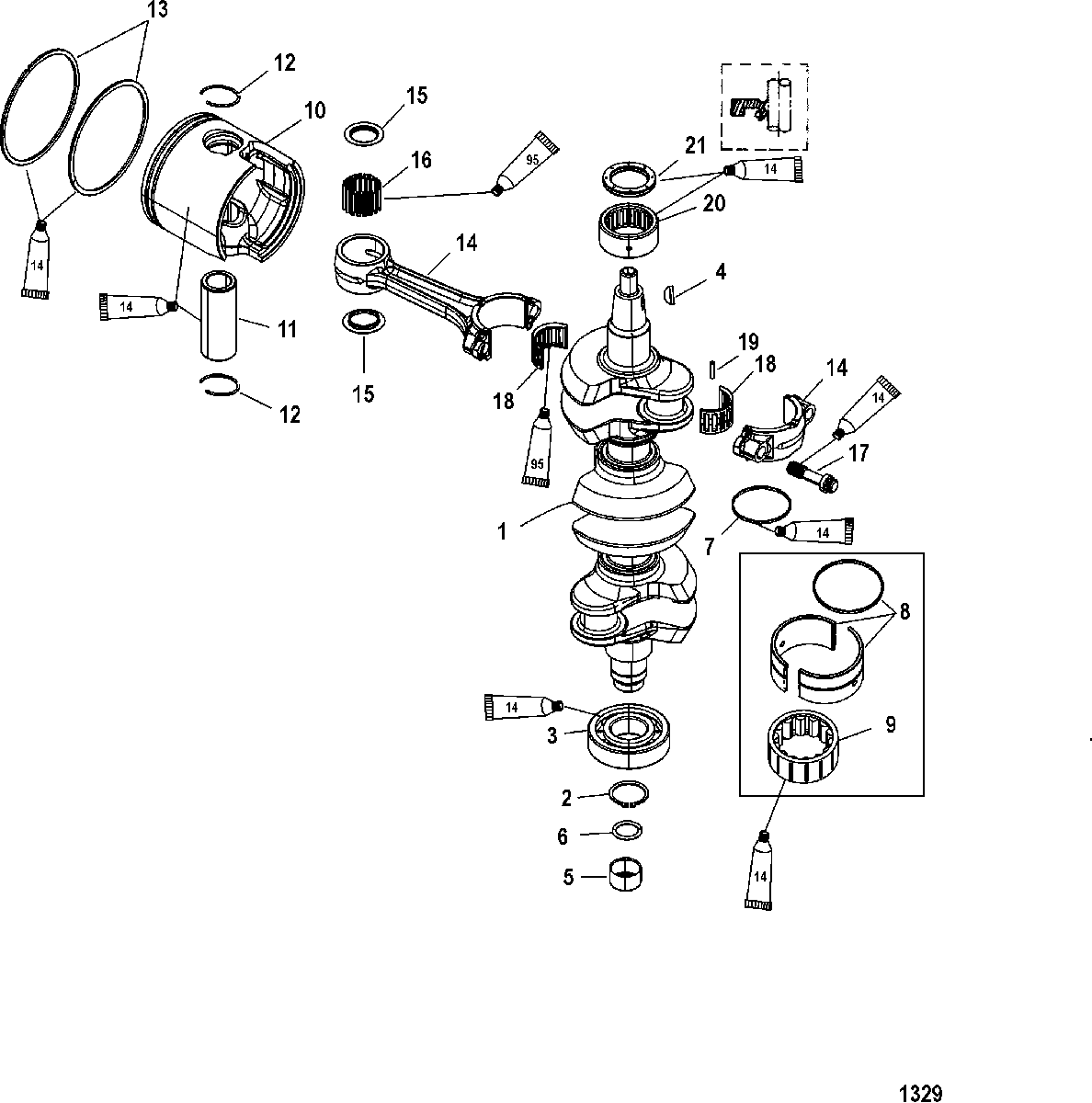

Crankshaft, Pistons and Connecting Rods для Mariner - 75 DFI (3 CYL.)(1.5L) 0T980000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    400-879633T01 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    53-880119 RING, Retaining
    RING, Retaining
  • 3
    30-43011T BEARING, Ball (LOWER)
    BEARING, Ball (LOWER)
  • 4
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 5
    786611 WEAR SLEEVE
    WEAR SLEEVE
  • 6
    25-35126 O-RING, (.859 x .139)
    O-RING, (.859 x .139)
  • 7
    39-8M0071643 RING, Seal
    RING, Seal
  • 8
    31-879848A02 BEARING
    BEARING
  • 9
    NSS NOT SOLD SEPARATE, Needle Bearing
    NOT SOLD SEPARATE, Needle Bearing
  • 10
    700-879858T08 PISTON ASSEMBLY
    (Standard)
    PISTON ASSEMBLY
    (Standard)
  • 10
    700-896961A02 PISTON ASSEMBLY
    (.015 Oversize)
    PISTON ASSEMBLY
    (.015 Oversize)
  • 10
    700-896962A02 PISTON ASSEMBLY
    (.030 Oversize)
    PISTON ASSEMBLY
    (.030 Oversize)
  • 11
    NSS NOT SOLD SEPARATE, Piston Pin
    NOT SOLD SEPARATE, Piston Pin
  • 12
    40-841202 RING
    RING
  • 13
    39-827179A12 RING SET, Piston
    (Standard)
    RING SET, Piston
    (Standard)
  • 13
    39-875252A12 RING SET, Piston
    (.015 Oversize)
    RING SET, Piston
    (.015 Oversize)
  • 13
    39-875257A12 RING SET, Piston
    (.030 Oversize)
    RING SET, Piston
    (.030 Oversize)
  • 14
    600-888470T05 CONNECTING ROD ASSEMBLY
    SN# 0T845718 & Below
    CONNECTING ROD ASSEMBLY
    SN# 0T845718 & Below
  • 14
    600-888470T02 CONNECTING ROD ASSEMBLY
    SN# 0T845719 THRU 1B189548
    CONNECTING ROD ASSEMBLY
    SN# 0T845719 THRU 1B189548
  • 14
    600-888470T06 CONNECTING ROD ASSEMBLY
    SN# 1B189549 & Up
    CONNECTING ROD ASSEMBLY
    SN# 1B189549 & Up
  • 15
    12-88263 THRUST WASHER
    THRUST WASHER
  • 16
    29-88258001 BEARING, Needle
    BEARING, Needle
  • 17
    10-94320 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 18
    31-892287A01 BEARING ASSEMBLY
    SN# 1B189548 & Below
    BEARING ASSEMBLY
    SN# 1B189548 & Below
  • 18
    31-844338A01 BEARING/CAGE KIT
    SN# 1B189549 & Up
    BEARING/CAGE KIT
    SN# 1B189549 & Up
  • 19
    NSS NOT SOLD SEPARATE, Roller Bearing
    NOT SOLD SEPARATE, Roller Bearing
  • 20
    31-879853A01 BEARING ASSEMBLY, Roller (UPPER)
    BEARING ASSEMBLY, Roller (UPPER)
  • 21
    26-879635 SEAL, Oil
    SEAL, Oil
  • 0
    27-879855A04 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • 0
    895233A07 POWERHEAD ASSEMBLY
    (75)
    POWERHEAD ASSEMBLY
    (75)
  • 0
    891767A07 POWERHEAD ASSEMBLY
    (90/115)
    POWERHEAD ASSEMBLY
    (90/115)
