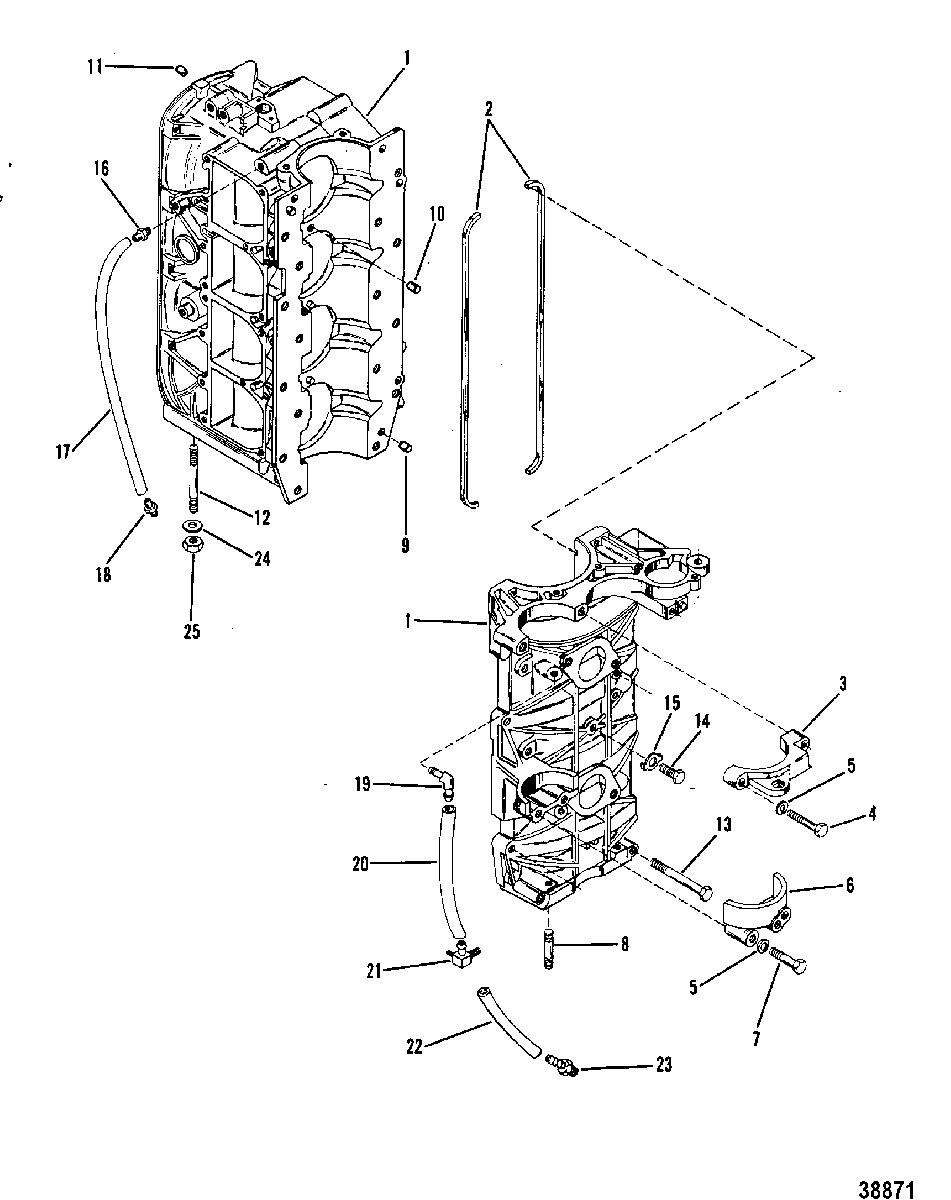

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mariner - 75 (4 CYL.) 9393856 & Up

  • №
    Артикул
    Название
  • 1
    871-8338A3 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    27-53650 GASKET, CRANKCASE TO CYLINDER BLOCK
    GASKET, CRANKCASE TO CYLINDER BLOCK
  • 3
    56029T COVER, STARTER MOTOR(UPPER)
    COVER, STARTER MOTOR(UPPER)
  • 4
    10-31984 SCREW, (.312-18 x 1.375), COVER TO CRANKCASE
    SCREW, (.312-18 x 1.375), COVER TO CRANKCASE
  • 4
    10-35385 SCREW, (.312-18 x 1-3/4), COVER TO CRANKCASE
    SCREW, (.312-18 x 1-3/4), COVER TO CRANKCASE
  • 5
    13-26993 LOCKWASHER, (.312), COVER SCREW
    LOCKWASHER, (.312), COVER SCREW
  • 6
    76867 COVER, STARTER MOTOR (LOWER)
    COVER, STARTER MOTOR (LOWER)
  • 7
    10-73279 SCREW, (.312-18 x 1.880), COVER TO CRANKCASE
    SCREW, (.312-18 x 1.880), COVER TO CRANKCASE
  • 7
    10-73658 SCREW, COVER TO CRANKCASE (5-1/2")
    SCREW, COVER TO CRANKCASE (5-1/2")
  • 8
    16-64281 STUD, (.375-16/.375-24 x 1.880)
    STUD, (.375-16/.375-24 x 1.880)
  • 9
    17-43044 PIN, Dowel, CRANKCASE TO CYLINDER BLOCK
    PIN, Dowel, CRANKCASE TO CYLINDER BLOCK
  • 10
    17-63779 PIN, Dowel (.250 x .625), CYLINDER BLOCK TO MAIN BEARING
    PIN, Dowel (.250 x .625), CYLINDER BLOCK TO MAIN BEARING
  • 11
    66517 RESTRICTOR, CRANKCASE BLEED
    RESTRICTOR, CRANKCASE BLEED
  • 12
    16-64282 STUD, (4 In.), CYLINDER BLOCK TO EXHAUST PLATE (4")
    STUD, (4 In.), CYLINDER BLOCK TO EXHAUST PLATE (4")
  • 13
    10-57841 SCREW, (.312-18 x 2.750)
    SCREW, (.312-18 x 2.750)
  • 13
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 13
    10-73657 SCREW, (.312-18 x 1.50)
    SCREW, (.312-18 x 1.50)
  • 14
    10-20359 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 15
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
  • 16
    21-42866 CHECK VALVE, BLEED HOSE-TOP
    CHECK VALVE, BLEED HOSE-TOP
  • 17
    32-9938779 HOSE, CYLINDER BLEED (15-1/2")
    HOSE, CYLINDER BLEED (15-1/2")
  • 18
    21-428671 CHECK VALVE, BLEED HOSE-BOTTOM
    CHECK VALVE, BLEED HOSE-BOTTOM
  • 19
    22-996642 ELBOW
    ELBOW
  • 20
    32-8M0108355 LINE, (57.00 Inches Bulk), BALANCE (6-1/4")
    LINE, (57.00 Inches Bulk), BALANCE (6-1/4")
  • 21
    22-130342 TEE, BALANCE HOSE TO CYLINDER BLOCK-LOWER
    TEE, BALANCE HOSE TO CYLINDER BLOCK-LOWER
  • 22
    32-9938779 HOSE, BALANCE (5")
    HOSE, BALANCE (5")
  • 23
    22-56759 CONNECTOR, AIR INLET COVER
    CONNECTOR, AIR INLET COVER
  • 24
    12-20553 WASHER, POWERHEAD STUDS
    WASHER, POWERHEAD STUDS
  • 25
    11-69254 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 25
    11-82671013 NUT, (.375-24), POWERHEAD STUDS
    NUT, (.375-24), POWERHEAD STUDS
  • -
    97471T87 POWERHEAD
    (Use with Triangular Fuel Pump)
    POWERHEAD
    (Use with Triangular Fuel Pump)
  • -
    97471T87 POWERHEAD ASSEMBLY
    (Use with Square Fuel Pump)
    POWERHEAD ASSEMBLY
    (Use with Square Fuel Pump)
