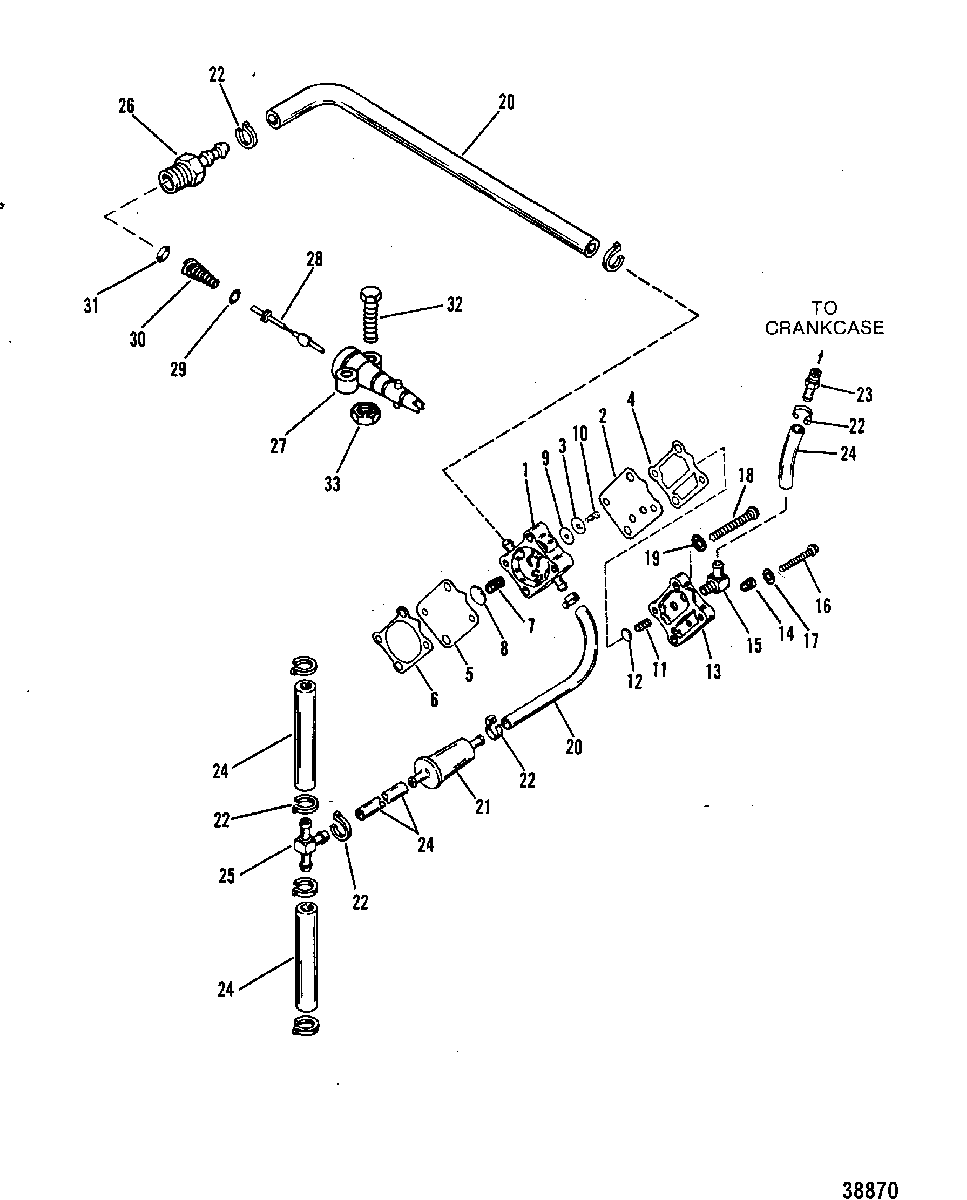

FUEL PUMP AND FUEL LINES(SQUARE FUEL PUMP) для Mariner - 75 (4 CYL.) 6432901 & Up
-
№АртикулНазвание
-
114360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, CHECK VALVE-RUBBERNOT SOLD SEPARATE, CHECK VALVE-RUBBER
-
4NSS NOT SOLD SEPARATE, GASKET-BOOSTNOT SOLD SEPARATE, GASKET-BOOST
-
5NSS NOT SOLD SEPARATE, DIAPHRAGMNOT SOLD SEPARATE, DIAPHRAGM
-
6NSS NOT SOLD SEPARATE, GASKET-PULSENOT SOLD SEPARATE, GASKET-PULSE
-
7NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
8NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
9NSS NOT SOLD SEPARATE, DISC-RUBBERNOT SOLD SEPARATE, DISC-RUBBER
-
10NSS NOT SOLD SEPARATE, RETAINERNOT SOLD SEPARATE, RETAINER
-
11NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
12NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
13987752 PLATE, FUEL PUMPPLATE, FUEL PUMP
-
1422-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
1522-19688 FITTINGFITTING
-
1610-90190 SCREW, FUEL PUMPSCREW, FUEL PUMP
-
1610-73013 SCREW, 10-32 x 1.50, FUEL PUMPSCREW, 10-32 x 1.50, FUEL PUMP
-
1712-89302 WASHER, FUEL PUMP SCREWWASHER, FUEL PUMP SCREW
-
1810-40057132 SCREW, FUEL PUMPSCREW, FUEL PUMP
-
1912-4002215 WASHER, FUEL PUMP SCREWWASHER, FUEL PUMP SCREW
-
2032-8M0108349 TUBINGTUBING
-
2135-816296Q2 FILTER, FuelFILTER, Fuel
-
2254-816311T CLAMP, FUEL TUBINGCLAMP, FUEL TUBING
-
2322-64705 FITTING, FUEL LINEFITTING, FUEL LINE
-
2432-8M0108355 LINE, (57.00 Inches Bulk)LINE, (57.00 Inches Bulk)
-
2522-73318 TEE, Plastic, FUEL LINETEE, Plastic, FUEL LINE
-
2622-34982 CONNECTOR, FUEL LINE TO ADAPTORCONNECTOR, FUEL LINE TO ADAPTOR
-
2730186 ADAPTOR, CHECK UNITADAPTOR, CHECK UNIT
-
2830185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2925-16524 O-RING, ADAPTOR STEMO-RING, ADAPTOR STEM
-
3024-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
3130188 WASHER, ADAPTORWASHER, ADAPTOR
-
3210-36154 SCREW, (.250-28 x 1.380)SCREW, (.250-28 x 1.380)
-
3311-36069 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
-27-73645A87 GASKET SETGASKET SET
