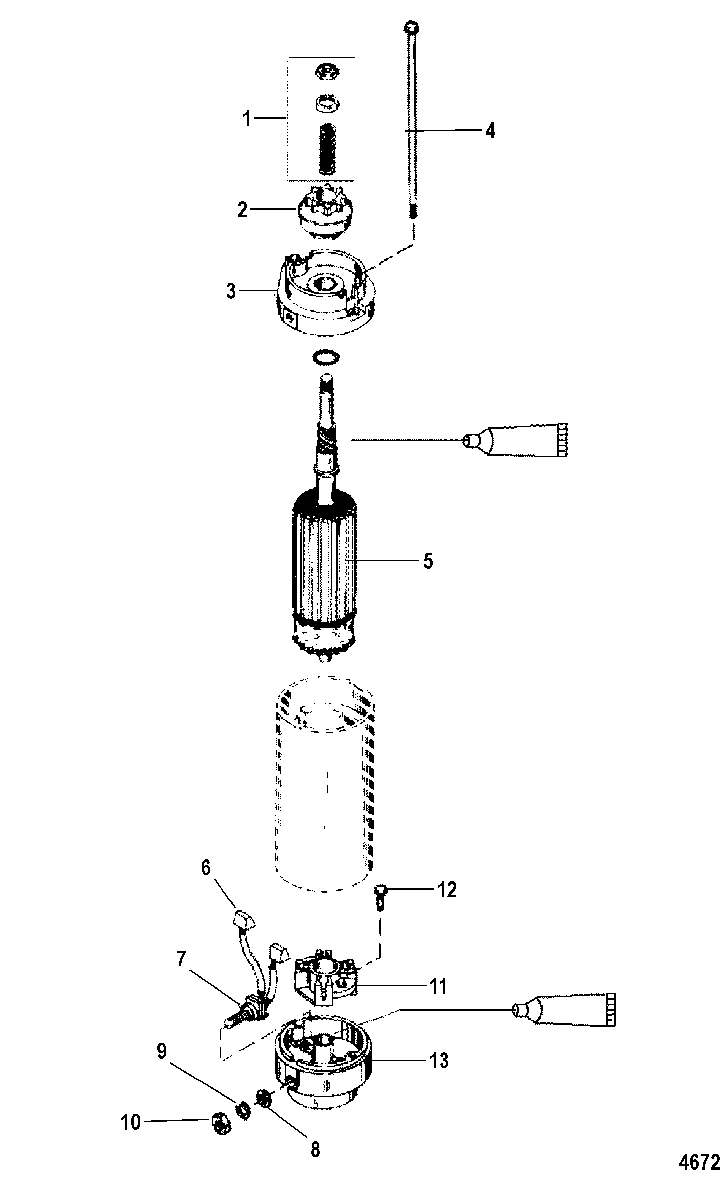

Starter Motor, Service для Mariner - 75 (3 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • -
    50-893891T STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • -
    50-893891T STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 1
    90643 DRIVE KIT
    DRIVE KIT
  • 2
    685753 DRIVE ASSEMBLY
    DRIVE ASSEMBLY
  • 3
    75660 PLATE
    PLATE
  • 4
    10-75385 BOLT
    BOLT
  • 5
    75386 ARMATURE
    ARMATURE
  • 6
    898265016 BRUSH/SPRING KIT
    BRUSH/SPRING KIT
  • 7
    23-57387 BUSHING
    BUSHING
  • 8
    NSS NOT SOLD SEPARATE, Washer (AMER. BOSCH #WA-1728)
    NOT SOLD SEPARATE, Washer (AMER. BOSCH #WA-1728)
  • 9
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 10
    11-20890 NUT, (.250-20)
    NUT, (.250-20)
  • 11
    898265014 HOLDER
    HOLDER
  • 12
    NSS NOT SOLD SEPARATE (AMER. BOSCH #02441-22-SC-30SM DRIVE TIGHT)
    NOT SOLD SEPARATE (AMER. BOSCH #02441-22-SC-30SM DRIVE TIGHT)
  • 13
    15386001 END CAP
    END CAP
