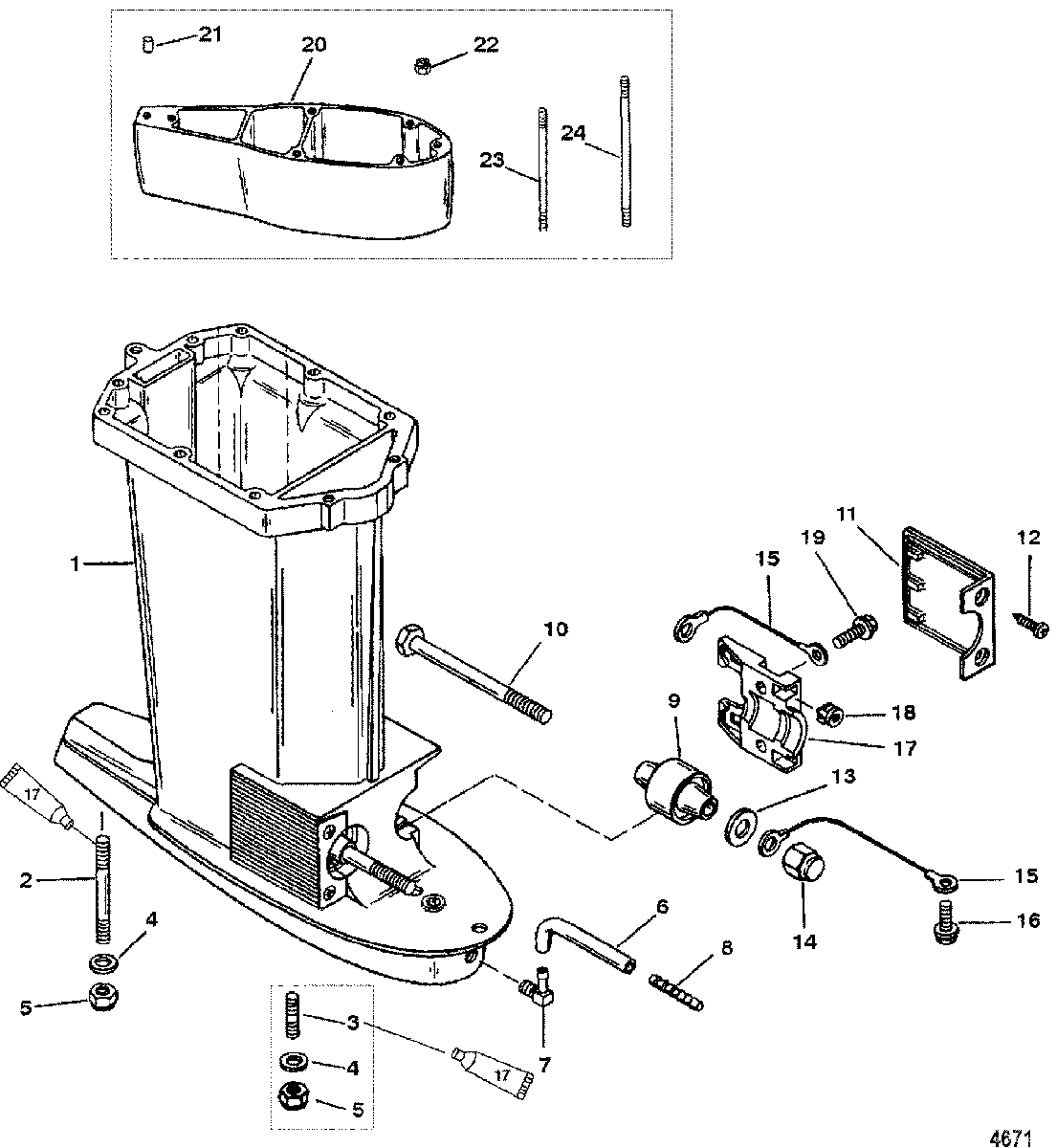

Driveshaft Housing(USA-0T800999/BEL-0P267999 and Below) для Mariner - 75 (3 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
1898289A49 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
11598-8974A26 HOUSING ASSEMBLY, Driveshaft
(Jet)HOUSING ASSEMBLY, Driveshaft
(Jet) -
216-903501 STUD, (M10 x 100)
(Long)STUD, (M10 x 100)
(Long) -
216-8M0034445 STUD, (M10 x 166)
(LL)STUD, (M10 x 166)
(LL) -
216-8M0034467 STUD, (M10 x 227)
(XL)STUD, (M10 x 227)
(XL) -
316-9035012 STUD, (M10 x 63)
(Long)STUD, (M10 x 63)
(Long) -
316-8M0034446 STUD, (M10 x 124)
(LL)STUD, (M10 x 124)
(LL) -
316-8M0034462 STUD, (M10 x 190)
(XL)STUD, (M10 x 190)
(XL) -
412-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
511-40140 NUT, (M10)NUT, (M10)
-
622-85822A4 PICKUP ASSEMBLY, SpeedometerPICKUP ASSEMBLY, Speedometer
-
722-433351 CONNECTOR, 90 Degree (.125-27) NylonCONNECTOR, 90 Degree (.125-27) Nylon
-
822-85822T CONNECTOR, StraightCONNECTOR, Straight
-
942930A1 MOUNT ASSEMBLY, Lower
(Oil Injection) (Jet 65)MOUNT ASSEMBLY, Lower
(Oil Injection) (Jet 65) -
944343T1 MOUNT
(Non Oil Injection)MOUNT
(Non Oil Injection) -
1010-898835001 BOLT, (M12 x 154)BOLT, (M12 x 154)
-
11100-8M4500752 COVER, BlackCOVER, Black
-
1210-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
1312-30119 WASHER, (.875 Inch Outside Diameter)WASHER, (.875 Inch Outside Diameter)
-
1411-43528 NUT, (M12)NUT, (M12)
-
1588238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1610-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
178M0036730 CLAMPCLAMP
-
1811-35521 NUTNUT
-
1910-4010725 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
20816696T7 SPACER
(LL)SPACER
(LL) -
2012092A3 SPACER KIT
(XL)SPACER KIT
(XL) -
2117-43044 PIN, Dowel - Without Hole (.375 x .625)
(LL/XL)PIN, Dowel - Without Hole (.375 x .625)
(LL/XL) -
2117-8M0084244 PIN, Dowel - With Hole (.375 x .625) , With Hole
(LL/XL)PIN, Dowel - With Hole (.375 x .625) , With Hole
(LL/XL) -
2211-40140 NUT, (M10)
(LL/XL)NUT, (M10)
(LL/XL) -
2316-8M0034446 STUD, (M10 x 124)
(LL/XL)STUD, (M10 x 124)
(LL/XL) -
2416-8M0034445 STUD, (M10 x 166)
(LL/XL)STUD, (M10 x 166)
(LL/XL)
