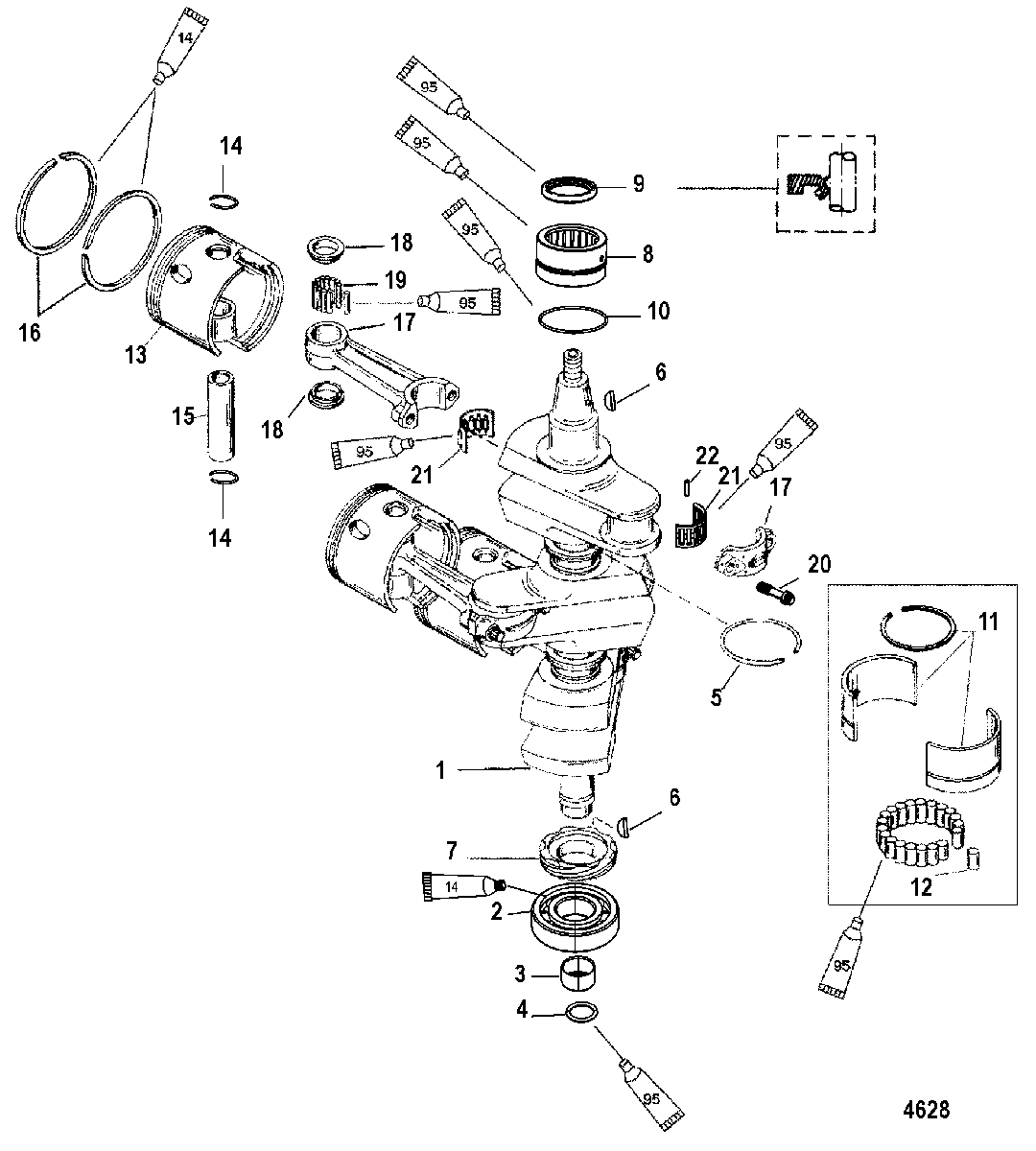

Crankshaft, Pistons and Connecting Rods для Mariner - 75 (3 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
1493-827616T1 CRANKSHAFTCRANKSHAFT
-
230-43011T BEARING, Ball, LowerBEARING, Ball, Lower
-
3786611 WEAR SLEEVEWEAR SLEEVE
-
425-35126 O-RING, (.859 x .139)O-RING, (.859 x .139)
-
539-818412A4 RING ASSEMBLYRING ASSEMBLY
-
628-91800 KEY, WoodruffKEY, Woodruff
-
743-43019A1 GEAR ASSEMBLYGEAR ASSEMBLY
-
831-43013T3 BEARING ASSEMBLY, Roller, UpperBEARING ASSEMBLY, Roller, Upper
-
926-43993 SEAL, OilSEAL, Oil
-
1025-858225 O-RING (2.112 X .103 Square)O-RING (2.112 X .103 Square)
-
1025-823683 O-RING, (1.989 x .070) (1.989 X .070 Round)O-RING, (1.989 x .070) (1.989 X .070 Round)
-
1142943A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
12NSS NOT SOLD SEPARATE, Roller BearingNOT SOLD SEPARATE, Roller Bearing
-
132704-826191T4 PISTON ASSEMBLY
(Standard)PISTON ASSEMBLY
(Standard) -
132704-821896A3 PISTON ASSEMBLY (.015 Oversize)PISTON ASSEMBLY (.015 Oversize)
-
132704-821896A4 PISTON ASSEMBLY (.030 Oversize)PISTON ASSEMBLY (.030 Oversize)
-
1453-857196 LOCK RINGLOCK RING
-
15NSS NOT SOLD SEPARATE, Piston RingNOT SOLD SEPARATE, Piston Ring
-
1639-822321A12 RING KIT, Piston - Standard (Standard)RING KIT, Piston - Standard (Standard)
-
1639-822321A1 RING KIT, Piston - .015 Oversize (.015 Oversize)RING KIT, Piston - .015 Oversize (.015 Oversize)
-
1639-822321A2 RING SET, Piston (.030 Oversize)RING SET, Piston (.030 Oversize)
-
17646-818846T6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1812-8M0012298 WASHERWASHER
-
1929-818391001 BEARING, NeedleBEARING, Needle
-
2010-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
2131-844338A01 BEARING/CAGE KITBEARING/CAGE KIT
-
22NSS NOT SOLD SEPARATE, Roller BearingNOT SOLD SEPARATE, Roller Bearing
-
-27-43004A99 GASKET SET, PowerheadGASKET SET, Powerhead
-
-898208A02 POWERHEAD ASSEMBLY
(Non Oil Injection)POWERHEAD ASSEMBLY
(Non Oil Injection) -
-809837T97 POWERHEAD ASSEMBLY
(Oil Injection)POWERHEAD ASSEMBLY
(Oil Injection)
