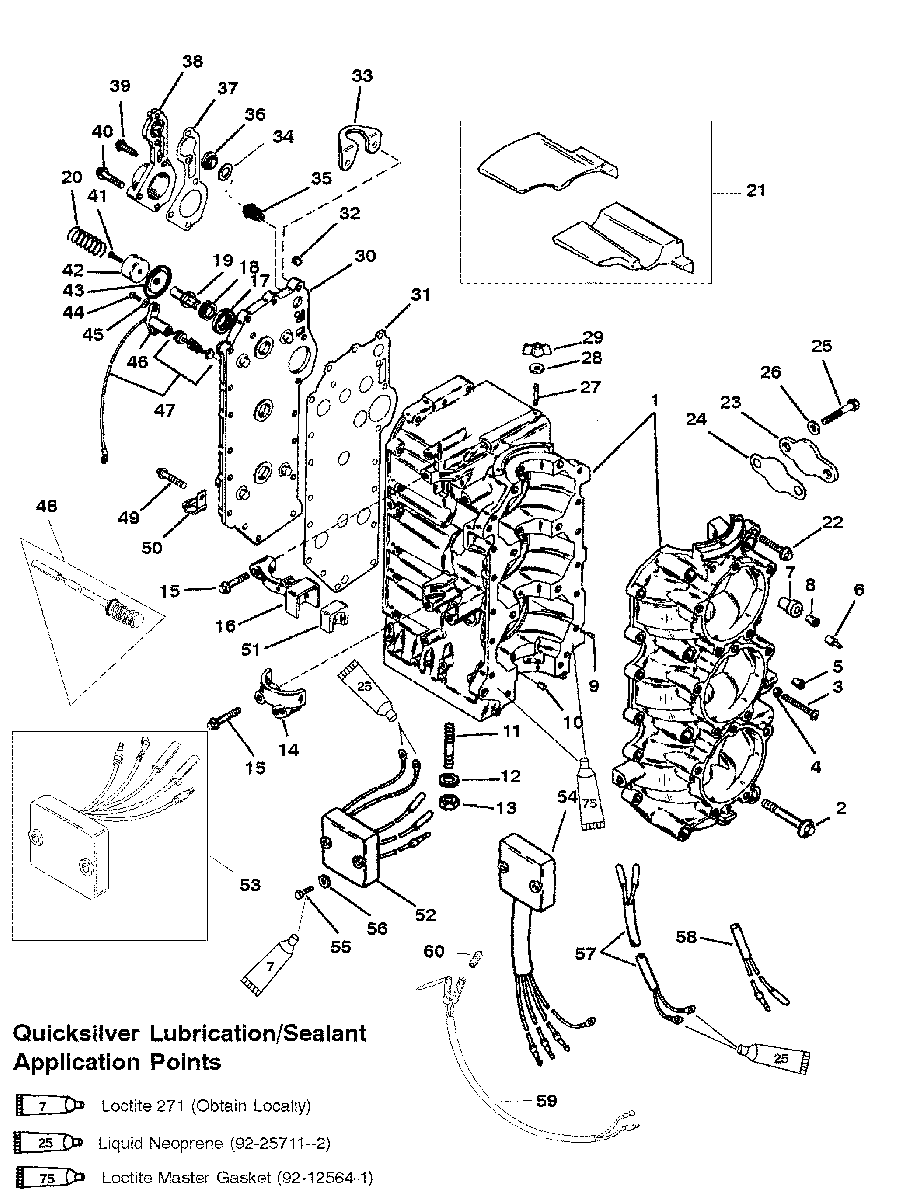

CYLINDER BLOCK (USA-S/N-0G127500/BEL-9836633 & UP) для Mariner - 75 (3 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
3627-62386001 GASKETGASKET
-
3727-430068 GASKETGASKET
-
388M0047619 COVERCOVER
-
3910-12896 SCREW-AIR VENT HOLE (USE WHERE APPLICABLE)SCREW-AIR VENT HOLE (USE WHERE APPLICABLE)
-
4010-82127335 SCREW (M8 X 35)SCREW (M8 X 35)
-
4110-69570 SCREW(10-16 X 3/4)SCREW(10-16 X 3/4)
-
4212-94182 WASHERWASHER
-
43648771 DIAPHRAGMDIAPHRAGM
-
4410-48409 SCREW (10-16 X 5/8)SCREW (10-16 X 5/8)
-
4512-56681 WASHERWASHER
-
4644290T RETAINERRETAINER
-
4778799 TEMPERATURE SENDER
(DESIGN I)TEMPERATURE SENDER
(DESIGN I) -
48787992 TEMPERATURE SENDER
(DESIGN II)TEMPERATURE SENDER
(DESIGN II) -
4910-82127335 SCREW (M8 X 35)SCREW (M8 X 35)
-
5054-814634 CLAMPCLAMP
-
5199162001 BOOTBOOT
-
5214857A16 OIL WARNING MODULE
USA-S/N-0G127500 THRU 0G437999 BEL-9836633 THRU 9926999OIL WARNING MODULE
USA-S/N-0G127500 THRU 0G437999 BEL-9836633 THRU 9926999 -
5314857A16 OIL WARNING MODULE
USA-S/N-0G438000 THRU 0G589999/BEL-9927000 THRU 9973099)OIL WARNING MODULE
USA-S/N-0G438000 THRU 0G589999/BEL-9927000 THRU 9973099) -
54821889A51 REV LIMITER
(ELECTRIC) USA-S/N-0G127500 THRU 0G437999 BEL-S/N9836633 THRU 9926999REV LIMITER
(ELECTRIC) USA-S/N-0G127500 THRU 0G437999 BEL-S/N9836633 THRU 9926999 -
54821889A34 REV LIMITER
(MANUAL) USA-S/N-0G127500 THRU 0G437999 BEL-S/N9836633 THRU 9926999REV LIMITER
(MANUAL) USA-S/N-0G127500 THRU 0G437999 BEL-S/N9836633 THRU 9926999 -
54821889A51 REV LIMITER
(ELECTRIC) USA-S/N-0G438000 THRU 0G589999 BEL-9927000 THRU 9973099REV LIMITER
(ELECTRIC) USA-S/N-0G438000 THRU 0G589999 BEL-9927000 THRU 9973099 -
54821889A49 REV LIMITER
(MANUAL) USA-S/N-0G438000 THRU 0G589999 BEL-9927000 THRU 9973099REV LIMITER
(MANUAL) USA-S/N-0G438000 THRU 0G589999 BEL-9927000 THRU 9973099 -
54821889A51 REV LIMITER
(ELECTRIC) USA-S/N-0G590000/BEL-9973100 & UPREV LIMITER
(ELECTRIC) USA-S/N-0G590000/BEL-9973100 & UP -
54821889A49 REV LIMITER
(MANUAL) USA-S/N-0G590000/BEL-9973100 & UPREV LIMITER
(MANUAL) USA-S/N-0G590000/BEL-9973100 & UP -
5510-82130050 SCREW (M6 X 1 X 50)SCREW (M6 X 1 X 50)
-
5510-82130030 SCREW (M6 X 1 X 30)SCREW (M6 X 1 X 30)
-
5612-29245 WASHERWASHER
-
5784-823147A6 HARNESS-SPEED LIMITER
(NON OIL INJECTION)HARNESS-SPEED LIMITER
(NON OIL INJECTION) -
5884-11149A8 HARNESS ADAPTOR
(ELECTRIC NON OIL INJECTIONHARNESS ADAPTOR
(ELECTRIC NON OIL INJECTION -
5984-855212A1 HARNESS-ADAPTOR
(USA-S/N-0G590000/BEL-9973100 & UP)HARNESS-ADAPTOR
(USA-S/N-0G590000/BEL-9973100 & UP) -
6013541 PLUGPLUG
-
-27-43004A99 GASKET SETGASKET SET
-
-809837T97 POWERHEADPOWERHEAD
