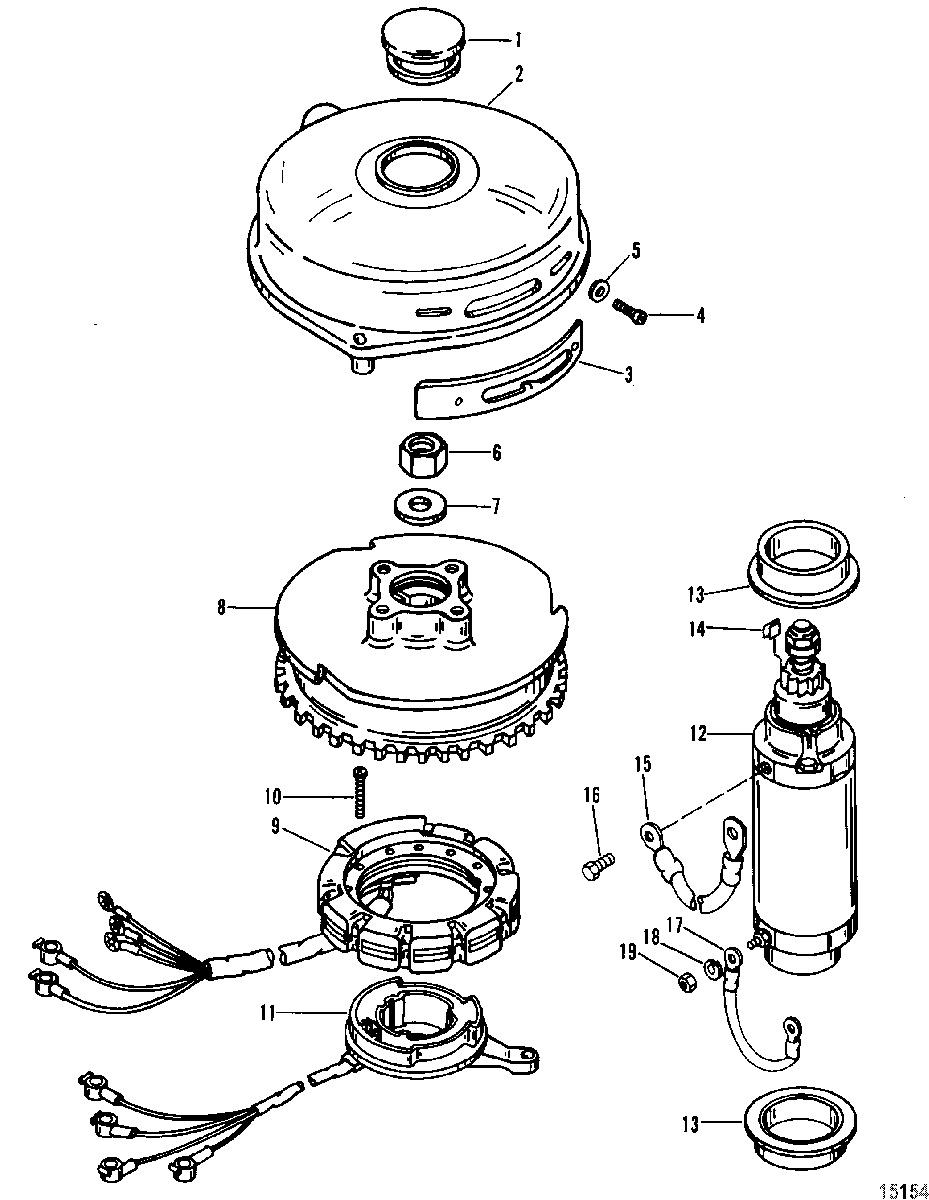

Flywheel and Starter Motor для Mariner - 70 (3 CYL.) 9506481 THRU 9589038

№

Артикул

Название
1

19-45907 PLUG, Yellow, Flywheel

PLUG, Yellow, Flywheel

430 ₽
2

42956A1 COVER ASSEMBLY, Flywheel

COVER ASSEMBLY, Flywheel

4 060 ₽
3

79022 MARKER, Timing

MARKER, Timing

1 910 ₽
4

10-37572 SCREW, (.190-32 x .380), Timing Marker

SCREW, (.190-32 x .380), Timing Marker

100 ₽
5

12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, Timing Marker Screw

WASHER, (.203 x .562 x .060) Stainless Steel, Timing Marker Screw

140 ₽
6

11-42979 NUT, (M16), Flywheel

NUT, (M16), Flywheel

300 ₽
7

12-33001 WASHER, (.641 x 1.250 x .190), Flywheel

WASHER, (.641 x 1.250 x .190), Flywheel

600 ₽
8

261-859234T30 FLYWHEEL ASSEMBLY

FLYWHEEL ASSEMBLY

76 430 ₽
9

398-8778A10 STATOR ASSEMBLY, Stamped 398-8778A16

STATOR ASSEMBLY, Stamped 398-8778A16

0 ₽
9

398-832075A5 STATOR ASSEMBLY, Stamped 398-9710A14

STATOR ASSEMBLY, Stamped 398-9710A14

47 200 ₽
10

10-4007325 SCREW, (M5 x 25), Stator

SCREW, (M5 x 25), Stator

60 ₽
11

99021A3 TRIGGER ASSEMBLY

TRIGGER ASSEMBLY

11 150 ₽
12

50-893891T STARTER MOTOR ASSEMBLY

STARTER MOTOR ASSEMBLY

50 090 ₽
13

23-8M0034918 COLLAR, Starter Motor

COLLAR, Starter Motor

680 ₽
14

8M0043376 STOP, Rubber, Starter Motor

STOP, Rubber, Starter Motor

340 ₽
15

84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, Starter Motor To Plate

CABLE ASSEMBLY, (6.00 Inches) Black, Starter Motor To Plate

1 120 ₽
16

10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, Wire To Starter Motor

SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, Wire To Starter Motor

140 ₽
17

84-88439A20 WIRE, Starter Motor, Black

WIRE, Starter Motor, Black

1 200 ₽
18

13-26992 LOCKWASHER, (.250) Stainless Steel, Starter Motor Terminal

LOCKWASHER, (.250) Stainless Steel, Starter Motor Terminal

70 ₽
19

11-64015 NUT, (.250-20), Starter Motor Terminal

NUT, (.250-20), Starter Motor Terminal

150 ₽
