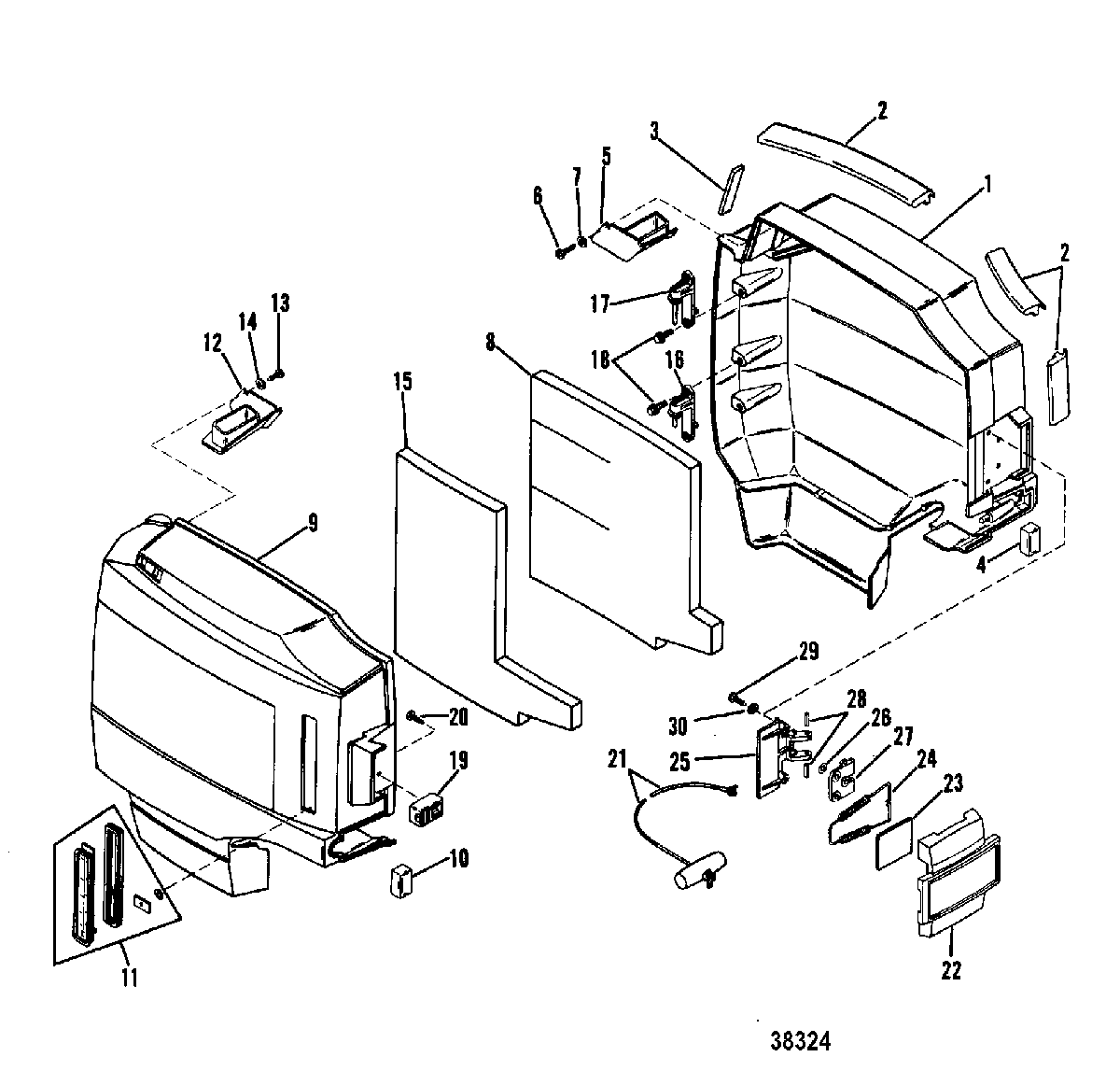

COWLS AND FRONT COVER для Mariner - 70 (3 CYL.) 9483121 THRU 9506480

  • №
    Артикул
    Название
  • 1
    2188-9006A2 TOP COWL ASSEMBLY, PORT
    (MERCURY)
    TOP COWL ASSEMBLY, PORT
    (MERCURY)
  • 1
    2188-9006A3 TOP COWL ASSEMBLY, PORT
    (MARINER)
    TOP COWL ASSEMBLY, PORT
    (MARINER)
  • 2
    429404 SEAL, UPPER COWL
    SEAL, UPPER COWL
  • 3
    12401 SEAL, COWL (REAR)
    SEAL, COWL (REAR)
  • 4
    90274 SEAL
    SEAL
  • 5
    42958 SHIELD, AIR INLET
    SHIELD, AIR INLET
  • 6
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIELD
    SCREW, (#10-16 x .625) Stainless Steel, SHIELD
  • 7
    12-4002313 WASHER, SHIELD SCREW
    WASHER, SHIELD SCREW
  • 8
    435331 SOUND BLANKET
    SOUND BLANKET
  • 9
    2187-9070A4 COWL ASSEMBLY, STARBOARD
    (MERCURY)
    COWL ASSEMBLY, STARBOARD
    (MERCURY)
  • 9
    2187-9070A5 COWL ASSEMBLY, STARBOARD
    (MARINER)
    COWL ASSEMBLY, STARBOARD
    (MARINER)
  • 9
    2187-9070A4 COWL ASSEMBLY, STARBOARD
    (MERCURY)(HANDLE MODELS)
    COWL ASSEMBLY, STARBOARD
    (MERCURY)(HANDLE MODELS)
  • 9
    2187-9070A5 COWL ASSEMBLY, STARBOARD
    (MARINER)(HANDLE MODELS)
    COWL ASSEMBLY, STARBOARD
    (MARINER)(HANDLE MODELS)
  • 10
    26-60297 SEAL
    SEAL
  • 11
    11315A1 OIL LEVEL GAUGE ASSEMBLY
    OIL LEVEL GAUGE ASSEMBLY
  • 12
    42957 SHIELD, AIR INLET
    SHIELD, AIR INLET
  • 13
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIELD
    SCREW, (#10-16 x .625) Stainless Steel, SHIELD
  • 14
    12-4002313 WASHER, SHIELD SCREW
    WASHER, SHIELD SCREW
  • 15
    435342 SOUND BLANKET
    SOUND BLANKET
  • 16
    87985 BRACKET (LOWER)
    BRACKET (LOWER)
  • 17
    879871 BRACKET (UPPER)
    BRACKET (UPPER)
  • 18
    10-40011149 SCREW, BRACKET
    SCREW, BRACKET
  • 19
    120811 LATCH, Cowl
    LATCH, Cowl
  • 20
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, LATCH
    SCREW, (#10-16 x .625) Stainless Steel, LATCH
  • 21
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (MANUAL STARTING)
    ROPE AND HANDLE KIT, Manual/Emergency Start (MANUAL STARTING)
  • 22
    43138A2 COVER ASSEMBLY MERCURY
    COVER ASSEMBLY MERCURY
  • 22
    43138A3 COVER ASSEMBLY MARINER
    COVER ASSEMBLY MARINER
  • 23
    12356 BUMPER
    BUMPER
  • 24
    24-17288 SPRING, COVER
    SPRING, COVER
  • 25
    43137A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 26
    11-434181 SPEED NUT
    SPEED NUT
  • 27
    15432 RETAINER, BRACKET
    RETAINER, BRACKET
  • 28
    17-43134 PIN, BRACKET
    PIN, BRACKET
  • 29
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 30
    12-814806 WASHER
    WASHER
