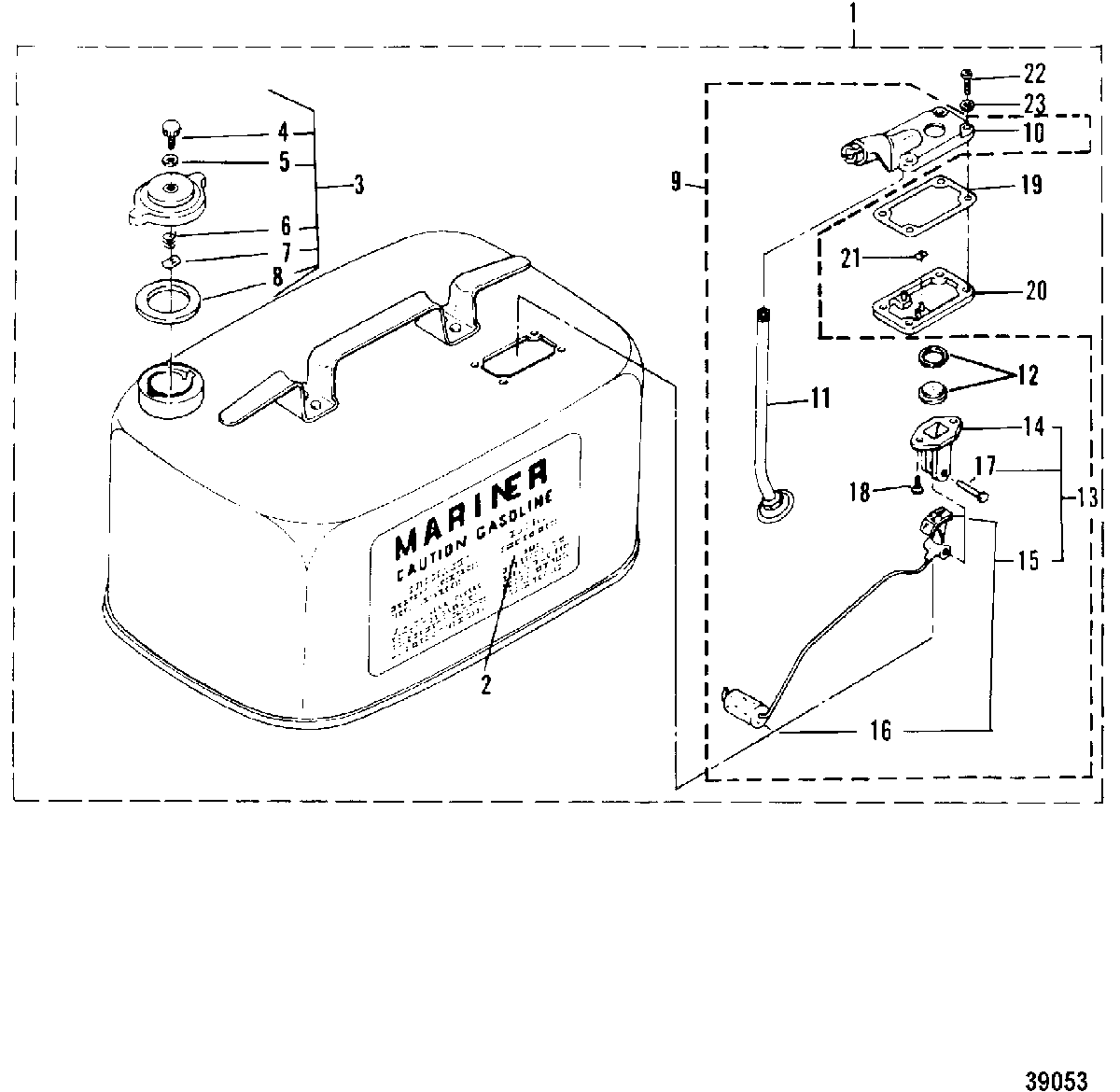

FUEL TANK (NOT ORIGINAL EQUIPMENT TANK) для Mariner - 6D 6H6-001302 & Up
-
№АртикулНазвание
-
11259-812410A1 TANK ASSEMBLY, Fuel, COMPLETE (6 GALLON)TANK ASSEMBLY, Fuel, COMPLETE (6 GALLON)
-
237-13921 DECAL, FUEL TANKDECAL, FUEL TANK
-
337-13921 DECALDECAL
-
410-25575 SCREW, VENT-FILLER CAPSCREW, VENT-FILLER CAP
-
512-49221 WASHER, VENT SCREWWASHER, VENT SCREW
-
624-22227 SPRING, TENSION-VENT SCREWSPRING, TENSION-VENT SCREW
-
711-28587 NUT, SPEED-SPRING RETAINERNUT, SPEED-SPRING RETAINER
-
827-41065 GASKET, FILLER CAP TO FUEL TANKGASKET, FILLER CAP TO FUEL TANK
-
964841A1 CONNECTOR/GAUGE ASSEMBLY, COMPLETECONNECTOR/GAUGE ASSEMBLY, COMPLETE
-
1017792A1 COVER, FUEL TANKCOVER, FUEL TANK
-
1132-75239 TUBETUBE
-
1298542A1 WINDOW ASSEMBLY, FUEL GAUGEWINDOW ASSEMBLY, FUEL GAUGE
-
1328897A2 GAUGE ASSEMBLY, Fuel, COMPLETEGAUGE ASSEMBLY, Fuel, COMPLETE
-
1420430 RETAINER, FUEL GAUGERETAINER, FUEL GAUGE
-
1528897A1 INDICATOR AND FLOAT ASSEMBLYINDICATOR AND FLOAT ASSEMBLY
-
1699274 FLOAT, FUEL GAUGEFLOAT, FUEL GAUGE
-
1717-20426 RIVET, INDICATOR TO RETAINERRIVET, INDICATOR TO RETAINER
-
1810-62568 SCREW, (#10-16 x .375), RETAINER TO FUEL TANK COVERSCREW, (#10-16 x .375), RETAINER TO FUEL TANK COVER
-
1927-28862 GASKET, COVER ASSEMBLY TO FRAMEGASKET, COVER ASSEMBLY TO FRAME
-
2028860 FRAME, RETAINING-FUEL TANK COVERFRAME, RETAINING-FUEL TANK COVER
-
2111-28903 NUT, RETAINING FRAME TO FUEL TANKNUT, RETAINING FRAME TO FUEL TANK
-
2210-20411 SCREW, (.190-24 x .62), FUEL TANK COVER TO FUEL TANKSCREW, (.190-24 x .62), FUEL TANK COVER TO FUEL TANK
-
2312-29070 WASHER, FUEL TANK COVER FASTENING SCREWWASHER, FUEL TANK COVER FASTENING SCREW
Все узлы модели:
- C.D.I. MAGNETO
- CARBURETOR
- CLAMP AND SWIVEL BRACKET
- COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- • FUEL TANK (NOT ORIGINAL EQUIPMENT TANK)
- FUEL TANK AND FUEL LINE(ORIGINAL)(12 LITRE)
- FUEL TANK AND FUEL LINES(ORIGINAL)(14 LITRE)
- GEAR SHIFT LINKAGE
- GEARHOUSING ASSEMBLY
- INTAKE MANIFOLD
- OPTIONAL PARTS
- PROP CHART
- RECOIL STARTER
- REMOTE CONTROL ATTACHING KIT
- REVERSE LOCK
- STEERING HANDLE
- THROTTLE LINKAGE
