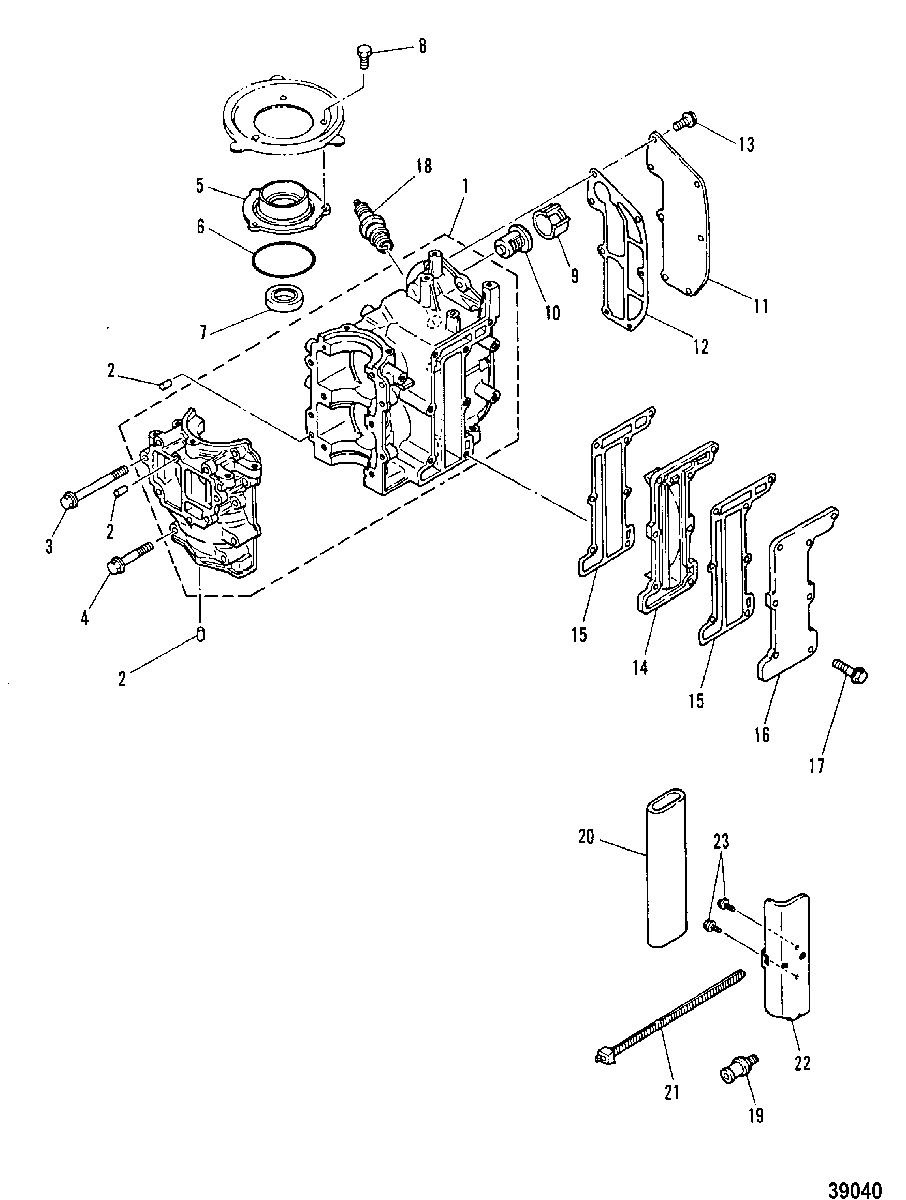

CRANKCASE AND CYLINDER HEAD для Mariner - 6C 6H8-000317 THRU 010381

  • №
    Артикул
    Название
  • 1
    968-9304M CRANKCASE ASSEMBLY
    CRANKCASE ASSEMBLY
  • 2
    17-82354M PIN, DOWEL
    PIN, DOWEL
  • 3
    10-11448M BOLT, WITH WASHER
    BOLT, WITH WASHER
  • 4
    10-11449M BOLT, WITH WASHER
    BOLT, WITH WASHER
  • 5
    14201M HOUSING, OIL SEAL
    HOUSING, OIL SEAL
  • 6
    25-11451M O-RING
    O-RING
  • 7
    26-14195M SEAL, Oil
    SEAL, Oil
  • 8
    10-826957M BOLT
    BOLT
  • 9
    11452M COLLAR
    COLLAR
  • 10
    11919001 THERMOSTAT
    THERMOSTAT
  • 11
    11453M COVER, CYLINDER HEAD
    COVER, CYLINDER HEAD
  • 12
    27-11454M GASKET, HEAD COVER
    GASKET, HEAD COVER
  • 13
    10-91686M BOLT, WITH WASHER
    BOLT, WITH WASHER
  • 14
    11455M INNER COVER, EXHAUST
    INNER COVER, EXHAUST
  • 15
    27-11456 GASKET, EXHAUST INNER COVER
    GASKET, EXHAUST INNER COVER
  • 16
    11457M OUTER COVER, EXHAUST
    OUTER COVER, EXHAUST
  • 17
    10-11945M BOLT, WITH WASHER
    BOLT, WITH WASHER
  • 18
    33-8M0114740 SPARK PLUG (NGK # B7HS10)
    SPARK PLUG (NGK # B7HS10)
  • 18
    33-8M0114738 SPARK PLUG (NGK # B6HS10)
    SPARK PLUG (NGK # B6HS10)
  • 19
    22-8M0121335 PLUG, WATER CHECK
    PLUG, WATER CHECK
  • 20
    91-803581 TOOL KIT
    TOOL KIT
  • 21
    61990 STRAP
    STRAP
  • 22
    11459M BRACKET, TOOL KIT
    BRACKET, TOOL KIT
  • 23
    10-95456M BOLT
    BOLT
  • -
    27-11434M GASKET SET
    GASKET SET
  • -
    11948M POWERHEAD ASSEMBLY
    (8M)
    POWERHEAD ASSEMBLY
    (8M)
  • -
    11948M POWERHEAD ASSEMBLY, Complete
    (6M)
    POWERHEAD ASSEMBLY, Complete
    (6M)
