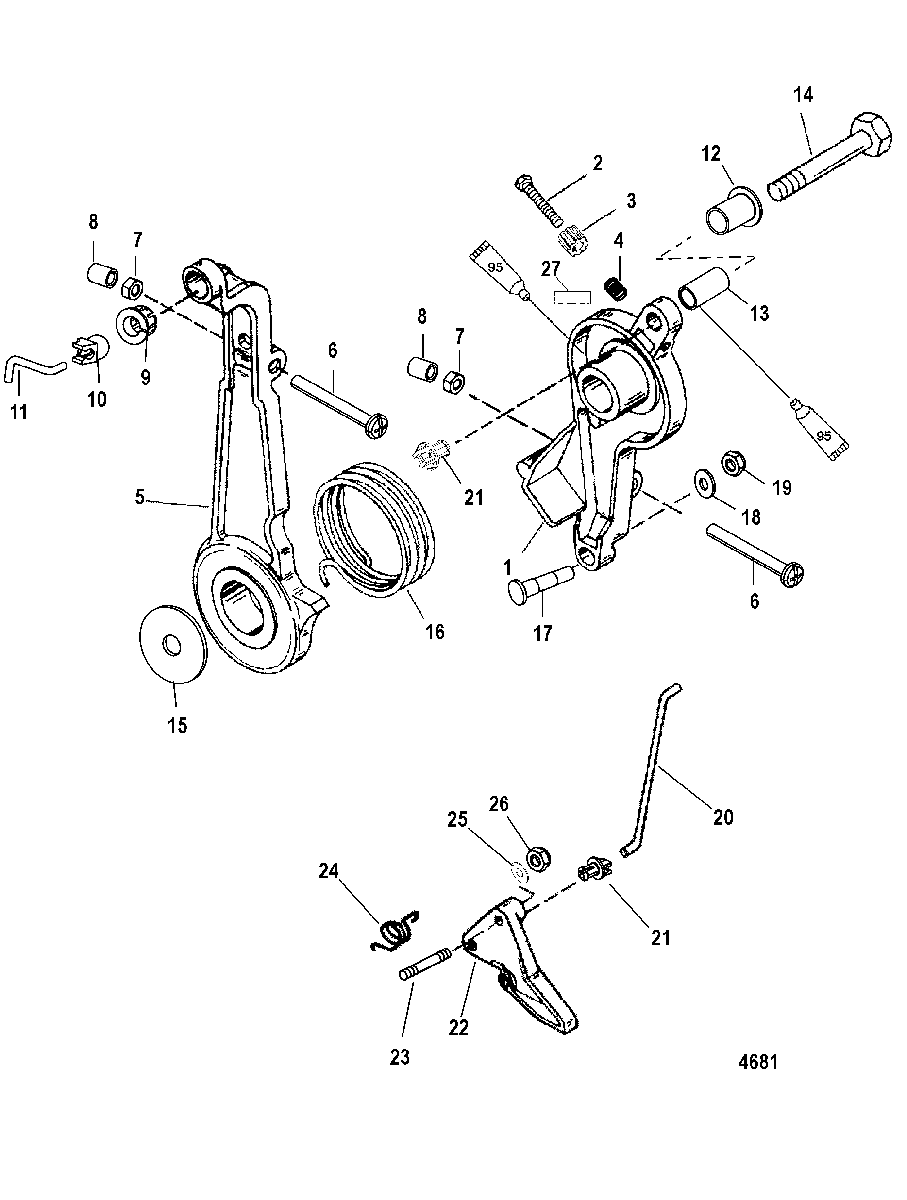

Throttle Lever and Linkage для Mariner - 65 JET 0P017000 THRU 0P325499

  • №
    Артикул
    Название
  • 1
    42946T1 LEVER, Throttle
    LEVER, Throttle
  • 2
    10-827008 SCREW, (M5 x 35)
    SCREW, (M5 x 35)
  • 3
    826264 CAP
    CAP
  • 4
    24-826382 SPRING
    SPRING
  • 5
    429471 LEVER, Spark Advance
    LEVER, Spark Advance
  • 6
    10-814776 SCREW, Adjusting (M6 x 55)
    SCREW, Adjusting (M6 x 55)
  • 7
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 8
    42942 CAP
    CAP
  • 9
    93254 SWIVEL BASE
    SWIVEL BASE
  • 10
    93421 SWIVEL BALL
    SWIVEL BALL
  • 11
    878172 ROD, Spark Advance
    ROD, Spark Advance
  • 12
    23-812930A1 BUSHING
    BUSHING
  • 13
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 14
    10-4007180 SCREW, (M10 x 45)
    SCREW, (M10 x 45)
  • 15
    12-42980 WASHER
    WASHER
  • 16
    24-55162 SPRING
    SPRING
  • 17
    42927 INSERT
    INSERT
  • 18
    12-35459 WASHER
    WASHER
  • 19
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 20
    878420T ROD
    ROD
  • 21
    23-932481 BUSHING
    BUSHING
  • 22
    42948A7 CAM ASSEMBLY, Throttle
    CAM ASSEMBLY, Throttle
  • 23
    16-8161949 STUD, (M6 x 44)
    STUD, (M6 x 44)
  • 24
    24-14159 SPRING
    SPRING
  • 25
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 26
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 27
    NSS NOT SOLD SEPARATE (Decal-Idle Screw-Arrow up)
    NOT SOLD SEPARATE (Decal-Idle Screw-Arrow up)
