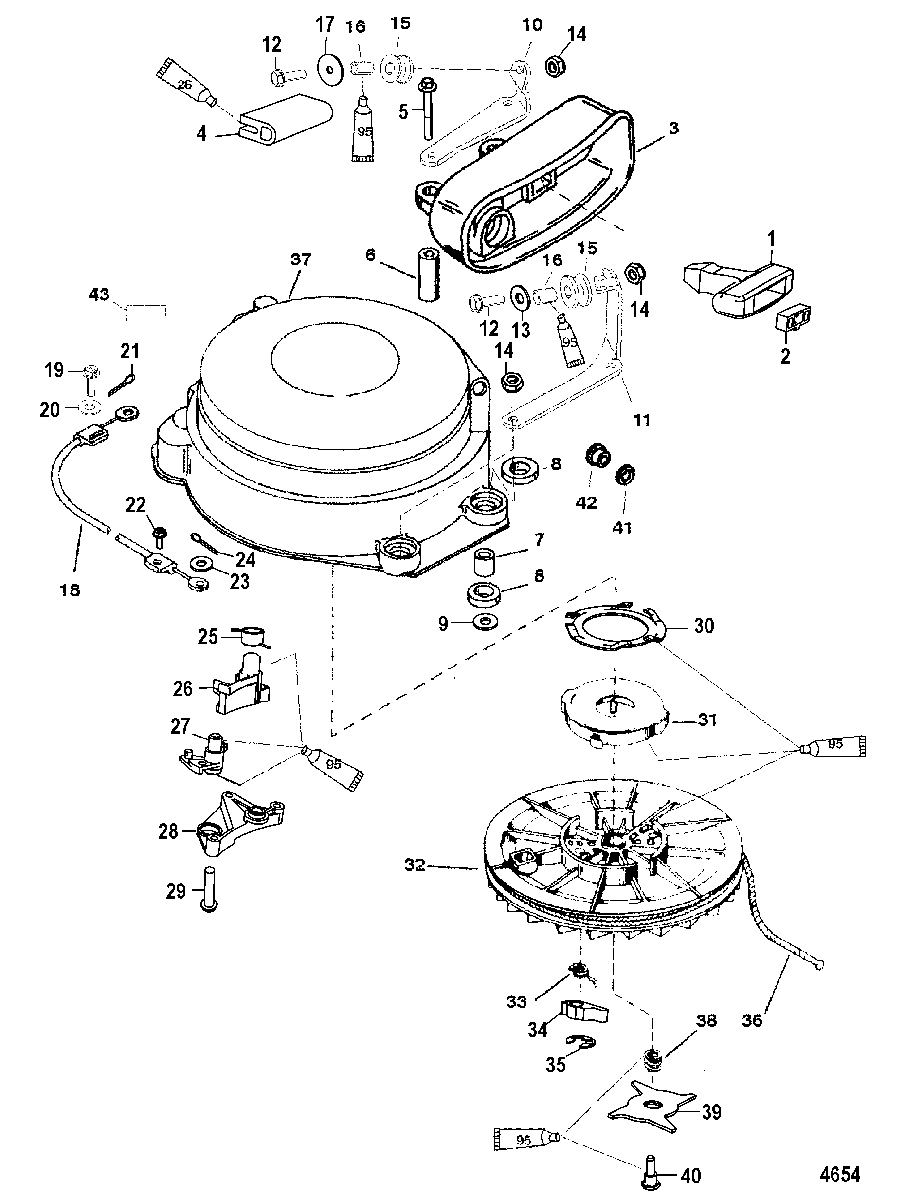

Starter Assembly(Manual) для Mariner - 65 JET 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • 1
    85174A2 HANDLE ASSEMBLY
    HANDLE ASSEMBLY
  • 2
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 3
    8220721 REST
    REST
  • 4
    8M0043270 SEAL
    SEAL
  • 5
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 6
    23-8217021 SPACER
    SPACER
  • 7
    23-816086 BUSHING
    BUSHING
  • 8
    25-815795 GROMMET
    GROMMET
  • 9
    12-69057 WASHER, (.281 x .734 x .063)
    (Quantity of 2 used in Front. Quantity of 4 used in Back.)
    WASHER, (.281 x .734 x .063)
    (Quantity of 2 used in Front. Quantity of 4 used in Back.)
  • 10
    855596 BRACKET
    BRACKET
  • 11
    855597 BRACKET
    BRACKET
  • 12
    10-40011129 SCREW, (M6 x 25) Stainless Steel
    SCREW, (M6 x 25) Stainless Steel
  • 13
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 14
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 15
    11704A1 PULLEY KIT
    PULLEY KIT
  • 16
    NSS NOT SOLD SEPARATE, Spacer
    NOT SOLD SEPARATE, Spacer
  • 17
    12-67983 WASHER
    WASHER
  • 18
    8567541 CABLE, Interlock
    CABLE, Interlock
  • 19
    10-8214281 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 20
    12-73288 WASHER, (.220 x .500 x .030) Stainless Steel
    WASHER, (.220 x .500 x .030) Stainless Steel
  • 21
    18-26811 COTTER PIN
    COTTER PIN
  • 22
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 23
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 24
    18-26811 COTTER PIN
    COTTER PIN
  • -
    816728T14 STARTER ASSEMBLY, Recoil
    STARTER ASSEMBLY, Recoil
  • 25
    24-826791 SPRING
    SPRING
  • 26
    8166903 LEVER
    LEVER
  • 27
    816712T01 CAM
    CAM
  • 28
    816711 RETAINER
    RETAINER
  • 29
    10-8182491 SCREW, (#10-16 x 1.00)
    SCREW, (#10-16 x 1.00)
  • 30
    13-826229 LOCKWASHER
    LOCKWASHER
  • 31
    24-86857T01 SPRING
    SPRING
  • 32
    50-825269T01 SHEAVE, Starter
    SHEAVE, Starter
  • 33
    24-86851T02 SPRING
    SPRING
  • 34
    868501 CAM
    CAM
  • 35
    53-86849T01 RING, Retaining
    RING, Retaining
  • 36
    50-12066Q10 ROPE
    ROPE
  • 37
    816728T05 HOUSING
    HOUSING
  • 38
    24-868523 SPRING
    SPRING
  • 39
    86853T01 CAM
    CAM
  • 40
    10-826253 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 41
    42690 BUSHING
    BUSHING
  • 42
    53-818853 RING, Retaining
    RING, Retaining
  • 43
    NSS NOT SOLD SEPARATE, Decal-Manual Start
    NOT SOLD SEPARATE, Decal-Manual Start
