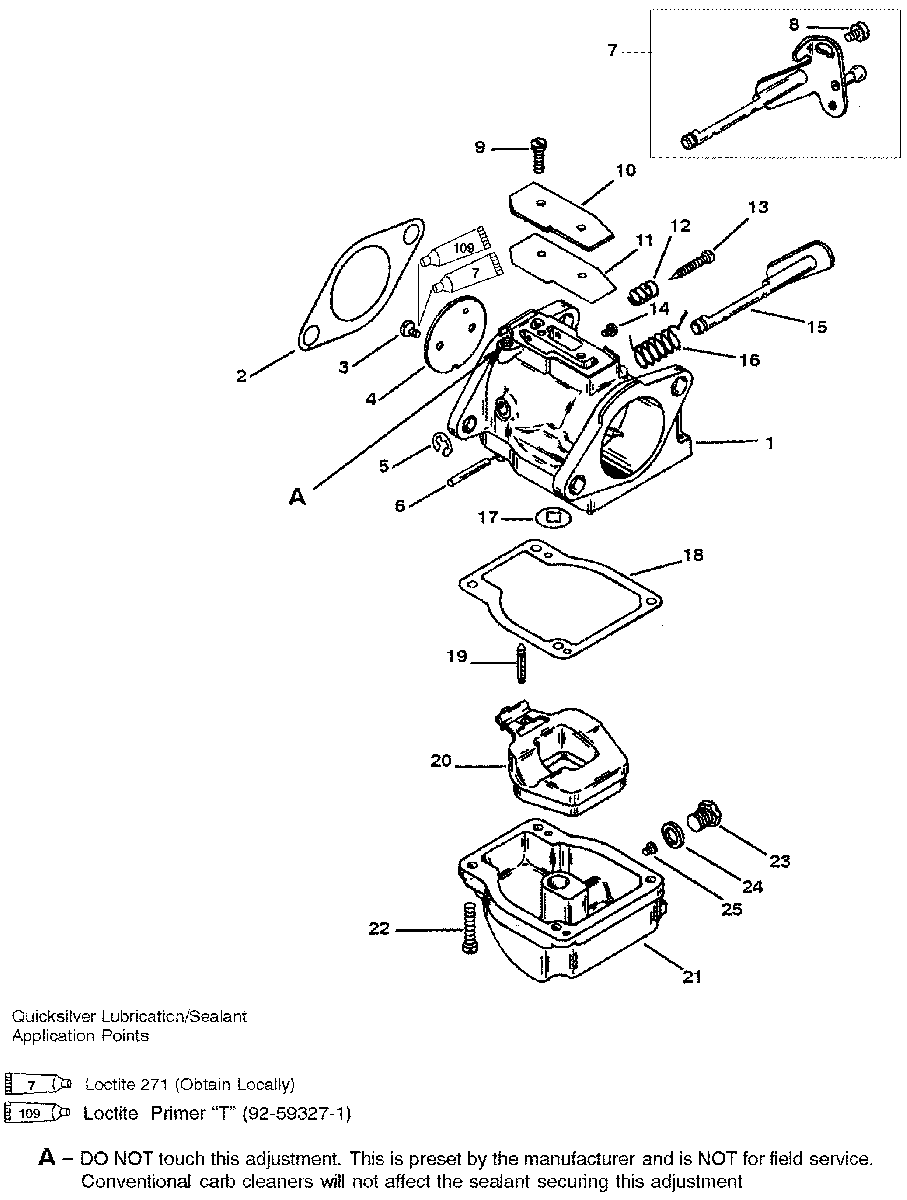

CARBURETOR (WME-29/30/31/41/46/47/48/49) для Mariner - 65 JET 0D283222 THRU 0G760299
-
№АртикулНазвание
-
13301-821679A23 CARBURETOR (TOP)
75 MANUAL-WME-47CARBURETOR (TOP)
75 MANUAL-WME-47 -
13301-821679A24 CARBURETOR (CENTER)
75 MANUAL-WME-47CARBURETOR (CENTER)
75 MANUAL-WME-47 -
13301-821679A25 CARBURETOR (BOTTOM)
75 MANUAL-WME-47CARBURETOR (BOTTOM)
75 MANUAL-WME-47 -
13301-821679A20 CARBURETOR (TOP)
75 ELECTRIC-WME-46CARBURETOR (TOP)
75 ELECTRIC-WME-46 -
13301-821679A21 CARBURETOR (CENTER)
75 ELECTRIC-WME-46CARBURETOR (CENTER)
75 ELECTRIC-WME-46 -
13301-824924T50 CARBURETOR (BOTTOM)
75 ELECTRIC-WME-46CARBURETOR (BOTTOM)
75 ELECTRIC-WME-46 -
13301-821679A26 CARBURETOR (TOP)
75 ELECTRIC-WME-48 NON -OILCARBURETOR (TOP)
75 ELECTRIC-WME-48 NON -OIL -
13301-821679A27 CARBURETOR (CENTER)
75 ELECTRIC-WME-48 NON -OILCARBURETOR (CENTER)
75 ELECTRIC-WME-48 NON -OIL -
13301-821679A28 CARBURETOR (BOTTOM)
75 ELECTRIC-WME-48 NON -OILCARBURETOR (BOTTOM)
75 ELECTRIC-WME-48 NON -OIL -
13301-821946T30 CARBURETOR (TOP)
90-WME-49CARBURETOR (TOP)
90-WME-49 -
13301-821946A31 CARBURETOR (CENTER)
90-WME-49CARBURETOR (CENTER)
90-WME-49 -
13301-821946A32 CARBURETOR (BOTTOM)
90-WME-49CARBURETOR (BOTTOM)
90-WME-49 -
227-151724 GASKET-FLANGEGASKET-FLANGE
-
310-F10155 SCREW-THROTTLE VALVESCREW-THROTTLE VALVE
-
41395-97242 THROTTLE VALVE
(WME-29/30/31/41)THROTTLE VALVE
(WME-29/30/31/41) -
41395-97244 THROTTLE VALVE
(WME-46/47/48/49)THROTTLE VALVE
(WME-46/47/48/49) -
590-8M0143356 RETAINING RINGRETAINING RING
-
6F10064 FLOAT SHAFTFLOAT SHAFT
-
71395-8236321 THROTTLE SHAFT (CENTER)THROTTLE SHAFT (CENTER)
-
81395-823634 SCREW-LEVER ADJUSTMENTSCREW-LEVER ADJUSTMENT
-
91395-811220 SCREWSCREW
-
101395-811221 COVER PLATECOVER PLATE
-
1190-8M0143356 GASKET-COVER PLATEGASKET-COVER PLATE
-
1290-8M0143356 SPRING-IDLE NEEDLESPRING-IDLE NEEDLE
-
1390-8M0143356 IDLE NEEDLEIDLE NEEDLE
-
141395-8423 JET (.094)
(WME-29)JET (.094)
(WME-29) -
151395-823632 THROTTLE SHAFT (UPPER/LOWER)THROTTLE SHAFT (UPPER/LOWER)
-
1690-8M0143356 SPRING-THROTTLE RETURNSPRING-THROTTLE RETURN
-
171395-808738 GASKET-NOZZLE WELLGASKET-NOZZLE WELL
-
1890-8M0143356 GASKET-FUEL BOWLGASKET-FUEL BOWL
-
1910-95951 INLET NEEDLE VALVEINLET NEEDLE VALVE
-
201395-9594 FLOATFLOAT
-
211395-811695 FUEL BOWL (UPPER)
(WME-30/46/47/49)FUEL BOWL (UPPER)
(WME-30/46/47/49) -
211395-811696 FUEL BOWL (UPPER)
(WME-29/31/41/48)FUEL BOWL (UPPER)
(WME-29/31/41/48) -
211395-811693 FUEL BOWL (CENTER/LOWER)FUEL BOWL (CENTER/LOWER)
-
221395-808612 SCREW-FUEL BOWLSCREW-FUEL BOWL
-
231395-811694 PLUGPLUG
-
241395-802731 SEAL (CONSISTS OF 4 SEALS)SEAL (CONSISTS OF 4 SEALS)
-
251395-6028 MAIN FUEL JET (.050)
(75)MAIN FUEL JET (.050)
(75) -
251395-6359 MAIN FUEL JET (.052)
(75)MAIN FUEL JET (.052)
(75) -
251399-5225 MAIN FUEL JET (.054)
(75)MAIN FUEL JET (.054)
(75) -
251399-4217 MAIN FUEL JET (.062)
(90)MAIN FUEL JET (.062)
(90) -
251399-4216 MAIN FUEL JET (.064)
(90)MAIN FUEL JET (.064)
(90) -
251395-7394 MAIN FUEL JET (.044)
(BELGIUM)MAIN FUEL JET (.044)
(BELGIUM) -
251399-5317 MAIN FUEL JET (.046)
(BELGIUM)MAIN FUEL JET (.046)
(BELGIUM) -
-1395-8112231 CARB GASKET KITCARB GASKET KIT
-
-1395-8236354 CARB REPAIR KITCARB REPAIR KIT
-
-27-43004A99 GASKET SETGASKET SET
