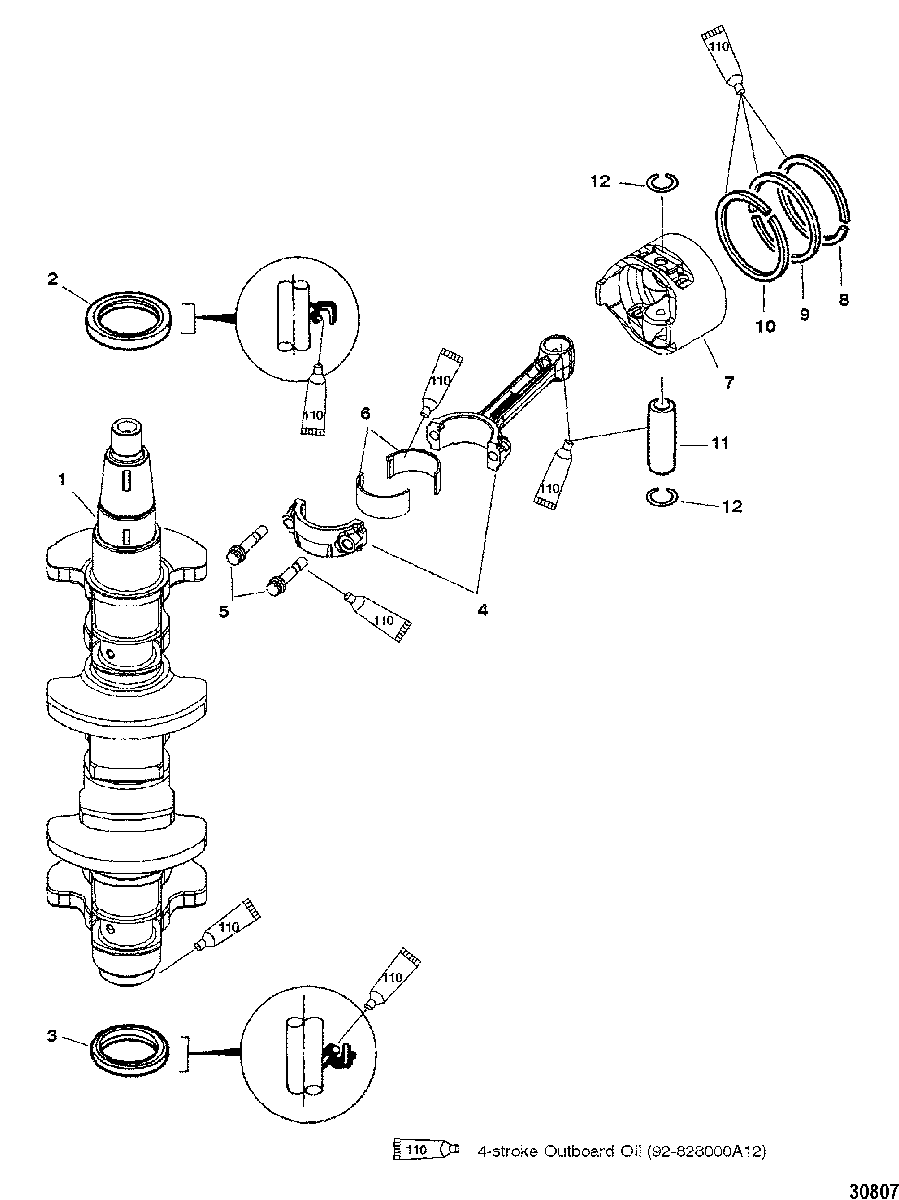

CRANKSHAFT для Mariner - 60 (4-STROKE)(4 CYL.) 0P094500 THRU 0P206999

  • №
    Артикул
    Название
  • 1
    413-857077T02 CRANKSHAFT
    CRANKSHAFT
  • 2
    26-893949 SEAL
    SEAL
  • 3
    26-893948 SEAL
    SEAL
  • 4
    600-893530T01 CONNECTING ROD
    CONNECTING ROD
  • 5
    10-8M0049884 BOLT
    BOLT
  • 6
    23-893630 BEARING, Brown
    BEARING, Brown
  • 6
    23-893630001 BEARING, Black
    BEARING, Black
  • 6
    23-893630002 BEARING, Blue
    BEARING, Blue
  • 7
    700-893524T08 PISTON ASSEMBLY
    (STANDARD)
    PISTON ASSEMBLY
    (STANDARD)
  • 7
    700-8M0057775 PISTON, w/o Rings
    (.25MM Oversized)(Bare Piston)
    PISTON, w/o Rings
    (.25MM Oversized)(Bare Piston)
  • 7
    700-8M0057776 PISTON, w/o Rings
    (.50MM Oversized)(Bare Piston)
    PISTON, w/o Rings
    (.50MM Oversized)(Bare Piston)
  • 8
    39-893525A01 RING SET, Piston (TOP)
    (STANDARD)
    RING SET, Piston (TOP)
    (STANDARD)
  • 8
    39-893525A02 RING, Piston (TOP)
    (.25MM Oversized)
    RING, Piston (TOP)
    (.25MM Oversized)
  • 8
    39-893525A03 RING, Piston (TOP)
    (.50MM Oversized)
    RING, Piston (TOP)
    (.50MM Oversized)
  • 9
    NSS NOT SOLD SEPARATE, Piston (SECOND)
    (STANDARD)
    NOT SOLD SEPARATE, Piston (SECOND)
    (STANDARD)
  • 9
    NSS NOT SOLD SEPARATE, Piston (SECOND)
    (.25MM Oversized)
    NOT SOLD SEPARATE, Piston (SECOND)
    (.25MM Oversized)
  • 9
    NSS NOT SOLD SEPARATE, Piston (SECOND)
    (.50MM Oversized)
    NOT SOLD SEPARATE, Piston (SECOND)
    (.50MM Oversized)
  • 10
    39-893950 RING, Oil
    RING, Oil
  • 11
    41-893863 PIN, Piston
    PIN, Piston
  • 12
    40-893529 RETAINER
    RETAINER
  • -
    61-893678T03 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    27-859352A01 GASKET SET
    GASKET SET
