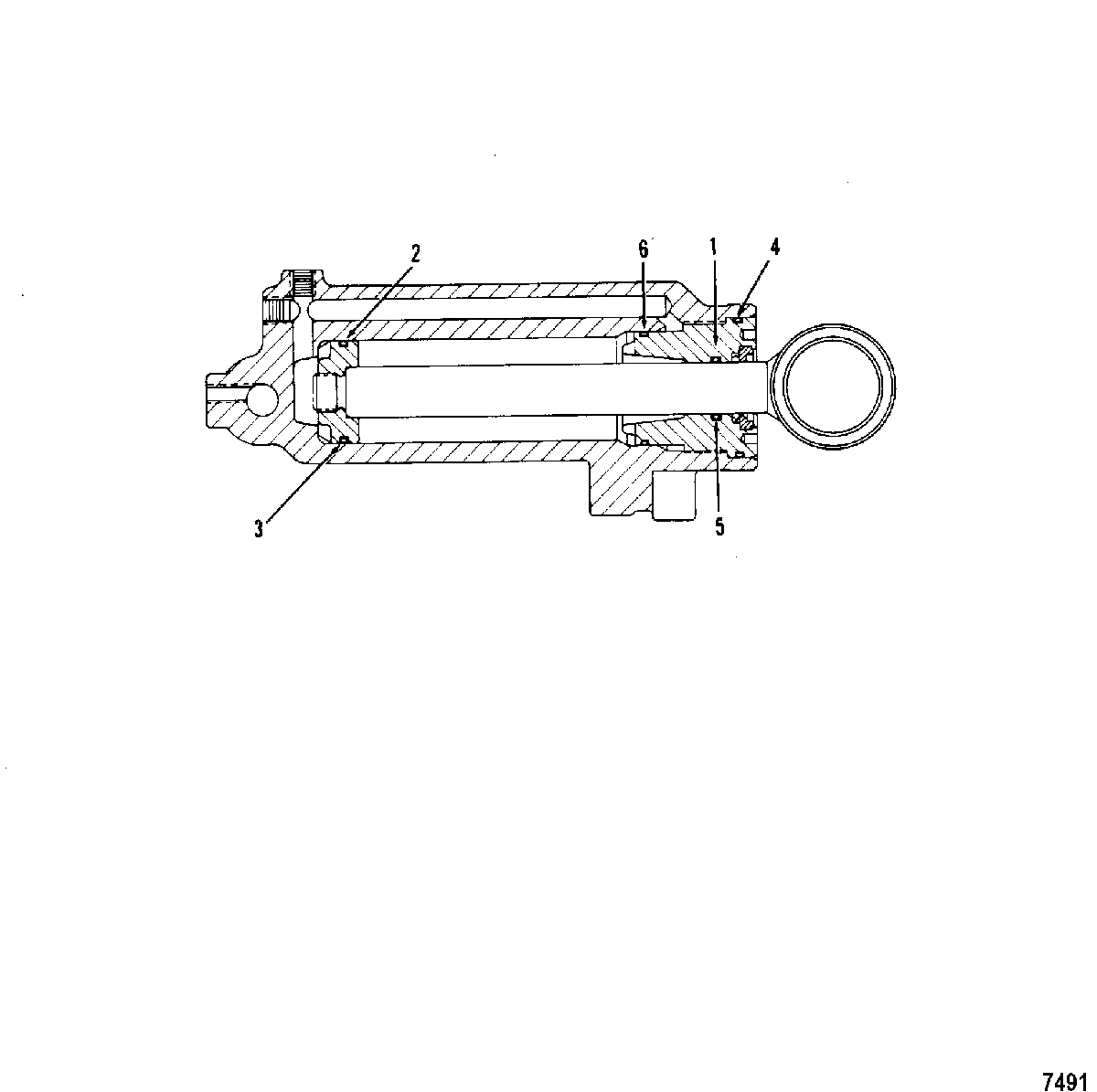

POWER TRIM CYLINDER REPAIR KITS для Mariner - 60 (3 CYL.) 7208333 THRU 0A721307
-
№АртикулНазвание
-
-92188A2 REPAIR KIT (SEE NOTE)REPAIR KIT (SEE NOTE)
-
1N.S.S. Not Sold Separate, Cylinder CapNot Sold Separate, Cylinder Cap
-
2N.S.S. Not Sold Separate, O-Ring (1-1/4" x 1-1/2" x 1/8")Not Sold Separate, O-Ring (1-1/4" x 1-1/2" x 1/8")
-
3N.S.S. Not Sold Separate, SpacerNot Sold Separate, Spacer
-
4N.S.S. Not Sold Separate, O-Ring (1-7/8" x 2-1/16" x 3/32")Not Sold Separate, O-Ring (1-7/8" x 2-1/16" x 3/32")
-
5N.S.S. Not Sold Separate, O-Ring (3/4" x 15/16" x 3/32")Not Sold Separate, O-Ring (3/4" x 15/16" x 3/32")
-
6N.S.S. Not Sold Separate, O-Ring (1-1/2" x 1-3/4" x 3/32")Not Sold Separate, O-Ring (1-1/2" x 1-3/4" x 3/32")
