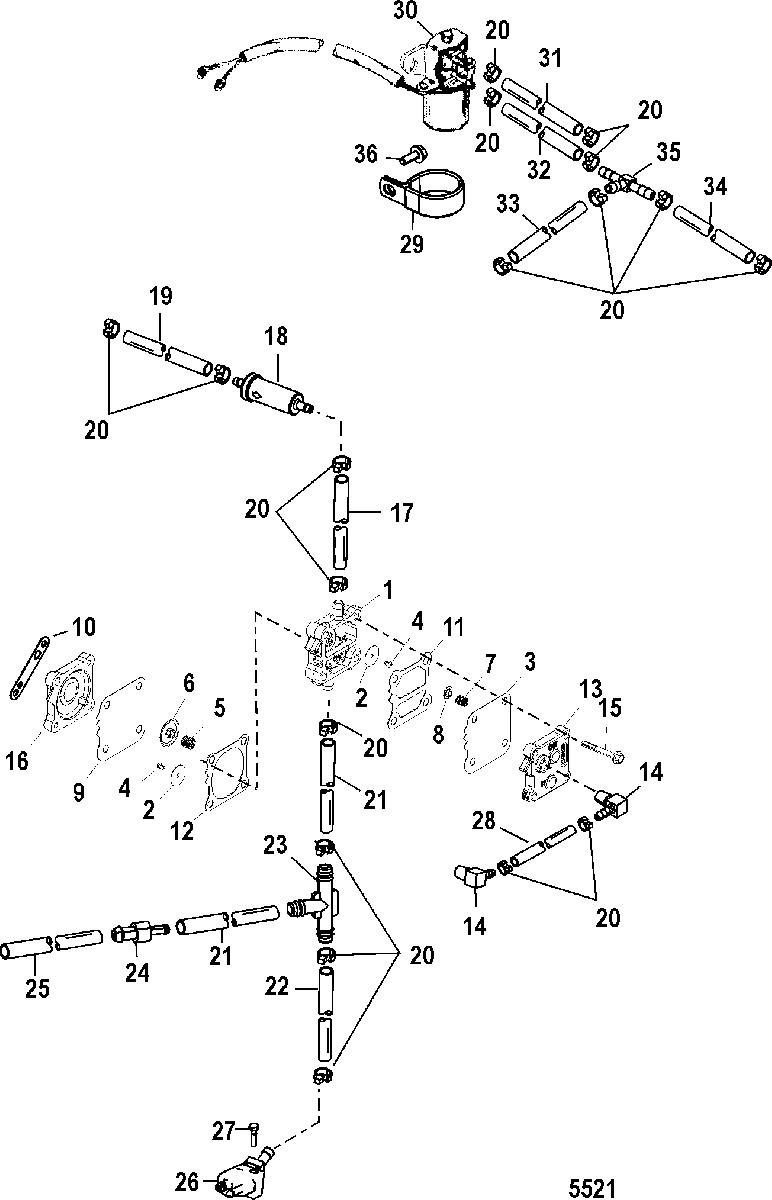

Fuel Pump, Electric для Mariner - 60 (3 CYL.) 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • -
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 1
    NSS NOT SOLD SEPARATE, Fuel Pump
    NOT SOLD SEPARATE, Fuel Pump
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Diaphragm Kit
    NOT SOLD SEPARATE, Diaphragm Kit
  • 4
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 5
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 6
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 10
    27-987691 GASKET
    GASKET
  • 11
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 12
    NSS NOT SOLD SEPARATE, Gsket-Pulse
    NOT SOLD SEPARATE, Gsket-Pulse
  • 13
    987752 PLATE
    PLATE
  • 14
    22-433351 CONNECTOR, 90 Degree (.125-27) Nylon
    CONNECTOR, 90 Degree (.125-27) Nylon
  • 15
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 15
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 16
    144303 BASE
    BASE
  • 17
    32-831949 HOSE
    HOSE
  • 18
    35-816296Q2 FILTER, Fuel
    FILTER, Fuel
  • 19
    32-830761 LINE, Fuel
    LINE, Fuel
  • 20
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 21
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.25 Inch Length)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.25 Inch Length)
  • 22
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 14.25 Inch Length)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 14.25 Inch Length)
  • 23
    22-818993 CONNECTOR, Tee
    CONNECTOR, Tee
  • 24
    22-8189941 CHECK VALVE
    CHECK VALVE
  • 25
    32-82381335 TUBING, (15.00 Inches Bulk) (Cut to 1.50 Inch Length)
    TUBING, (15.00 Inches Bulk) (Cut to 1.50 Inch Length)
  • 26
    22-816856T01 CONNECTOR ASSEMBLY, Fuel
    CONNECTOR ASSEMBLY, Fuel
  • 27
    10-4000332 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 28
    32-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)
    HOSE, (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)
  • 29
    54-633003 CLAMP
    CLAMP
  • 30
    89-819503A5 SOLENOID KIT, Enrichner Valve
    SOLENOID KIT, Enrichner Valve
  • 31
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 8.00 Inch Length)
    TUBING, (36.00 Inches Bulk) (Cut to 8.00 Inch Length)
  • 32
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 4.00 Inch Length)
    TUBING, (36.00 Inches Bulk) (Cut to 4.00 Inch Length)
  • 33
    32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 14.00 Inch Length)
    TUBING, (20.00 Feet Bulk) (Cut to 14.00 Inch Length)
  • 34
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 2.00 Inch Length)
    TUBING, (36.00 Inches Bulk) (Cut to 2.00 Inch Length)
  • 35
    22-59169003 FITTING, Tee
    FITTING, Tee
  • 36
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • -
    27-812867A97 GASKET SET
    GASKET SET
  • -
    852071T97 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
