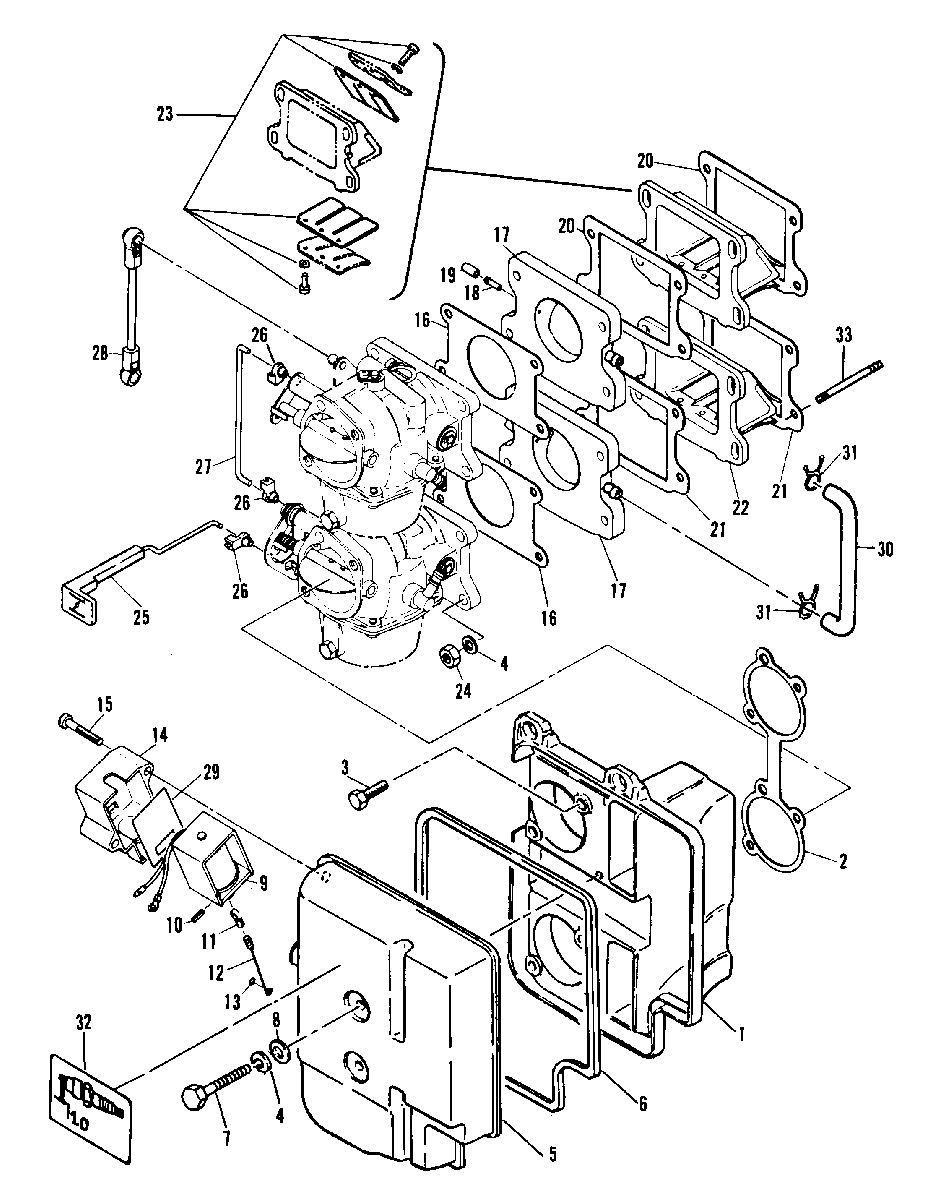

INTAKE MANIFOLD для Mariner - 60 (2 CYL.) 6F0-300311 AND UP

  • №
    Артикул
    Название
  • 1
    92629M BASE, AIR INTAKE
    BASE, AIR INTAKE
  • 2
    27-81276M GASKET, AIR INTAKE TO CARBURETOR
    GASKET, AIR INTAKE TO CARBURETOR
  • 3
    10-82405M BOLT
    BOLT
  • 4
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 5
    92630M COVER, AIR INTAKE
    COVER, AIR INTAKE
  • 6
    27-92631M GASKET, AIR INTAKE
    GASKET, AIR INTAKE
  • 7
    10-84657M BOLT
    BOLT
  • 8
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 9
    89-97843M SOLENOID
    SOLENOID
  • 10
    17-82145M PIN, ROLL
    PIN, ROLL
  • 11
    84411M HOOK, WIRE PULL
    HOOK, WIRE PULL
  • 12
    84412M WIRE, PULL
    WIRE, PULL
  • 13
    25-82258M O-RING, PULL WIRE
    O-RING, PULL WIRE
  • 14
    81551M COVER, SOLENOID
    COVER, SOLENOID
  • 15
    10-82568M SCREW
    SCREW
  • 16
    27-81272 GASKET, CARBURETOR TO MANIFOLD
    GASKET, CARBURETOR TO MANIFOLD
  • 17
    92632M MANIFOLD, INTAKE
    MANIFOLD, INTAKE
  • 18
    22-80122M PIPE, OVER FLOW
    PIPE, OVER FLOW
  • 19
    80454M CAP, OVER FLOW PIPE
    CAP, OVER FLOW PIPE
  • 20
    27-81269M GASKET, MANIFOLD TO REED VALVE - UPPER
    GASKET, MANIFOLD TO REED VALVE - UPPER
  • 21
    27-81270M GASKET, MANIFOLD TO REED VALVE - LOWER
    GASKET, MANIFOLD TO REED VALVE - LOWER
  • 22
    34-92633M REED VALVE
    REED VALVE
  • 23
    34-92634M REED SET (REED STOPS NOT INCLUDED)
    REED SET (REED STOPS NOT INCLUDED)
  • 24
    11-82389M NUT
    NUT
  • 25
    81337M ROD, CHOKE
    ROD, CHOKE
  • 26
    16333 CONNECTOR, CHOKE LEVER
    CONNECTOR, CHOKE LEVER
  • 27
    810938M ROD, CHOKE LINK
    ROD, CHOKE LINK
  • 28
    810939M ROD, THROTTLE ADJUSTMENT
    ROD, THROTTLE ADJUSTMENT
  • 29
    81554M DAMPER
    DAMPER
  • 30
    32-84415M HOSE
    HOSE
  • 31
    54-82047M CLAMP, HOSE
    CLAMP, HOSE
  • 32
    37-84416M DECAL
    DECAL
  • 33
    16-81735M STUD
    STUD
