ELECTRIC STARTER MOTOR для Mariner - 60 (2 CYL.) 6F0-000101 AND UP

  • №
    Артикул
    Название
  • 0-1
    1651-8612M GEARHOUSING ASS'Y (E)
    GEARHOUSING ASS'Y (E)
  • 0-1
    1651-8613M GEARHOUSING ASS'Y (EL)
    GEARHOUSING ASS'Y (EL)
  • 1
    1651-7971M GEAR HOUSING
    GEAR HOUSING
  • 2
    81449M GUIDE, SEAL
    GUIDE, SEAL
  • 3
    22-81924M PLUG
    PLUG
  • 4
    27-81987 GASKET
    GASKET
  • 5
    81445M COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 6
    25-82281M O-RING, COVER TO GEAR HOUSING
    O-RING, COVER TO GEAR HOUSING
  • 7
    26-82257M OIL SEAL, GEAR HOUSING COVER
    OIL SEAL, GEAR HOUSING COVER
  • 8
    10-826957M BOLT
    BOLT
  • 9
    12-82214M WASHER
    WASHER
  • 10
    81408M ROD, SHIFT - LOWER
    ROD, SHIFT - LOWER
  • 11
    53-82334M SNAPP RING
    SNAPP RING
  • 12
    81409M CAM, SHIFT
    CAM, SHIFT
  • 13
    45-81451M DRIVESHAFT (E)
    DRIVESHAFT (E)
  • 13
    45-81452M DRIVESHAFT (EL)
    DRIVESHAFT (EL)
  • 14
    28-97089M KEY
    KEY
  • 15
    31-82319T BEARING, DRIVESHAFT
    BEARING, DRIVESHAFT
  • 16
    15-81467M SHIM, DRIVESHAFT BEARING (.05MM)
    SHIM, DRIVESHAFT BEARING (.05MM)
  • 16
    15-81468M SHIM, DRIVESHAFT BEARING (.08MM)
    SHIM, DRIVESHAFT BEARING (.08MM)
  • 16
    15-19148002 SHIM, DRIVEHSAFT BEARING (.12MM)
    SHIM, DRIVEHSAFT BEARING (.12MM)
  • 16
    15-19148004 SHIM, DRIVESHAFT BEARING (.30MM)
    SHIM, DRIVESHAFT BEARING (.30MM)
  • 16
    15-19153M SHIM, DRIVESHAFT BEARING (.50MM)
    SHIM, DRIVESHAFT BEARING (.50MM)
  • 17
    23-98934M SLEEVE, DRIVESHAFT
    SLEEVE, DRIVESHAFT
  • 18
    31-98935M BEARING, NEEDLE - DRIVESHAFT
    BEARING, NEEDLE - DRIVESHAFT
  • 19
    12-81455M THRUST WASHER, DRIVESHAFT
    THRUST WASHER, DRIVESHAFT
  • 20
    11-81772M NUT, DRIVESHAFT
    NUT, DRIVESHAFT
  • 21
    43-84208M GEAR, PINION
    GEAR, PINION
  • 22
    43-84206M GEAR, FORWARD
    GEAR, FORWARD
  • 23
    43-84207M GEAR, REVERSE
    GEAR, REVERSE
  • 24
    15-81456M SHIM, FORWARD GEAR ADJUST (.05MM)
    SHIM, FORWARD GEAR ADJUST (.05MM)
  • 24
    15-81457M SHIM, FORWARD GEAR ADJUST (.08MM)
    SHIM, FORWARD GEAR ADJUST (.08MM)
  • 24
    15-19148003 SHIM, FORWARD GEAR AADJUST (.12MM)
    SHIM, FORWARD GEAR AADJUST (.12MM)
  • 24
    15-19158M SHIM, FORWARD GE AR ADJUST (.30MM)
    SHIM, FORWARD GE AR ADJUST (.30MM)
  • 24
    15-81460M SHIM, FORWARD GEAR ADJUST (.50MM)
    SHIM, FORWARD GEAR ADJUST (.50MM)
  • 25
    31-82320T BEARING, FORWARD GEAR
    BEARING, FORWARD GEAR
  • 26
    52-81473T CLUTCH
    CLUTCH
  • 27
    17-81903M CROSS PIN, CLUTCH
    CROSS PIN, CLUTCH
  • 28
    81474M RING, CROSS PIN
    RING, CROSS PIN
  • 29
    92643M PLUNGER, SHIFT
    PLUNGER, SHIFT
  • 30
    81475M SLIDE, SHIFT
    SLIDE, SHIFT
  • 31
    24-82091M SPRING, SHIFT
    SPRING, SHIFT
  • 32
    44-92644M SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 33
    12-81837M THRUST WASHER, REVERSE GEAR
    THRUST WASHER, REVERSE GEAR
  • 34
    15-81462M SHIM, REVERSE GEAR ADJ (.05 MM)
    SHIM, REVERSE GEAR ADJ (.05 MM)
  • 34
    15-81463M SHIM, REVERSE GEAR ADJ (.08 MM)
    SHIM, REVERSE GEAR ADJ (.08 MM)
  • 34
    15-19163002 SHIM, REVERSE GEAR ADJ (.12 MM)
    SHIM, REVERSE GEAR ADJ (.12 MM)
  • 34
    15-19163001 SHIM, REVERSE GEAR ADJ (.30 MM)
    SHIM, REVERSE GEAR ADJ (.30 MM)
  • 34
    15-19165M SHIM, REVERSE GEAR ADJ (.50 MM)
    SHIM, REVERSE GEAR ADJ (.50 MM)
  • 35
    12-81461M THRUST WASHER, REVERSE GEAR
    THRUST WASHER, REVERSE GEAR
  • 36
    30-82296T BEARING, REVERSE GEAR
    BEARING, REVERSE GEAR
  • 37
    25-82289M O-RING, BEARING HOUSING
    O-RING, BEARING HOUSING
  • 38
    81446M HOUSING, BEARING
    HOUSING, BEARING
  • 39
    28-81916M KEY
    KEY
  • 40
    31-82317M BEARING, NEEDLE - PROPELLER SHAFT
    BEARING, NEEDLE - PROPELLER SHAFT
  • 41
    26-854017 OIL SEAL, PROPELLER SHAFT
    OIL SEAL, PROPELLER SHAFT
  • 42
    14-81877M WASHER, CLAW
    WASHER, CLAW
  • 43
    11-8M0059031 NUT
    NUT
  • 44
    46-81416M BODY, WATER PUMP
    BODY, WATER PUMP
  • 45
    81419M INSERT, CARTRIDGE
    INSERT, CARTRIDGE
  • 46
    47-97108M IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 47
    27-81417 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 48
    81420M OUTER PLATE, CARTRIDGE
    OUTER PLATE, CARTRIDGE
  • 49
    27-81421M GASKET, CARTRIDGE OUTER PLATE
    GASKET, CARTRIDGE OUTER PLATE
  • 50
    46-81422M BASE, WATER PUMP
    BASE, WATER PUMP
  • 51
    27-81418M GASKET, WATER PUMP BASE
    GASKET, WATER PUMP BASE
  • 52
    25-82275M O-RING, WATER PUMP BASE
    O-RING, WATER PUMP BASE
  • 53
    26-82234M OIL SEAL, WATER PUMP
    OIL SEAL, WATER PUMP
  • 54
    17-82354M PIN, DOWEL
    PIN, DOWEL
  • 55
    10-84057M BOLT
    BOLT
  • 56
    10-85277614 BOLT
    BOLT
  • 57
    12-82217M WASHER
    WASHER
  • 58
    26-81426M SEAL, WATER TUBE - UPPER
    SEAL, WATER TUBE - UPPER
  • 59
    81448M SEAL, RUBBER
    SEAL, RUBBER
  • 60
    81410M CAM, REVERSE ROD
    CAM, REVERSE ROD
  • 61
    19166M COVER, WATER INLET - PORT
    COVER, WATER INLET - PORT
  • 62
    19167M COVER, WATER INLET - STARBOARD
    COVER, WATER INLET - STARBOARD
  • 63
    10-82484M SCREW
    SCREW
  • 64
    11-8528165 NUT
    NUT
  • 65
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 66
    10-91636M BOLT
    BOLT
  • 67
    13-82218M WASHER, LOCK
    WASHER, LOCK
  • 68
    10-43103M BOLT
    BOLT
  • 69
    13-82215M WASHER, LOCK
    WASHER, LOCK
  • 70
    83859T TRIM TAB
    TRIM TAB
  • 71
    10-82801M BOLT
    BOLT
  • 72
    98937M GUIDE, REVERSE ROD
    GUIDE, REVERSE ROD
  • 73
    73345A1 THRUST WASHER
    THRUST WASHER
  • 74
    859935 NUT, PROPELLER
    NUT, PROPELLER
  • 75
    18-82132M PIN, COTTER
    PIN, COTTER
  • 76
    12-81852M WASHER, WATER TUBE
    WASHER, WATER TUBE
  • 77
    32-81424M TUBE, WATER (E)
    TUBE, WATER (E)
  • 77
    32-81425M TUBE, WATER (EL)
    TUBE, WATER (EL)
  • 78
    25-81989M GASKET, WATER TUBE
    GASKET, WATER TUBE
  • 79
    26-81427M SEAL, WATER TUBE - LOWER
    SEAL, WATER TUBE - LOWER
  • 80
    84187T CHRIME WATER PUMP KIT (OPT)
    CHRIME WATER PUMP KIT (OPT)
  • 81
    83131M INNER PLATE
    INNER PLATE
  • 82
    81672M INSERT, CARTRIDGE
    INSERT, CARTRIDGE
  • 83
    81673M FACE PLATE
    FACE PLATE
  • 83
    27-92648M GASKET SET, LOWER UNIT
    GASKET SET, LOWER UNIT
  • 83
    84188T REPAIR KIT, WATER PUMP
    REPAIR KIT, WATER PUMP

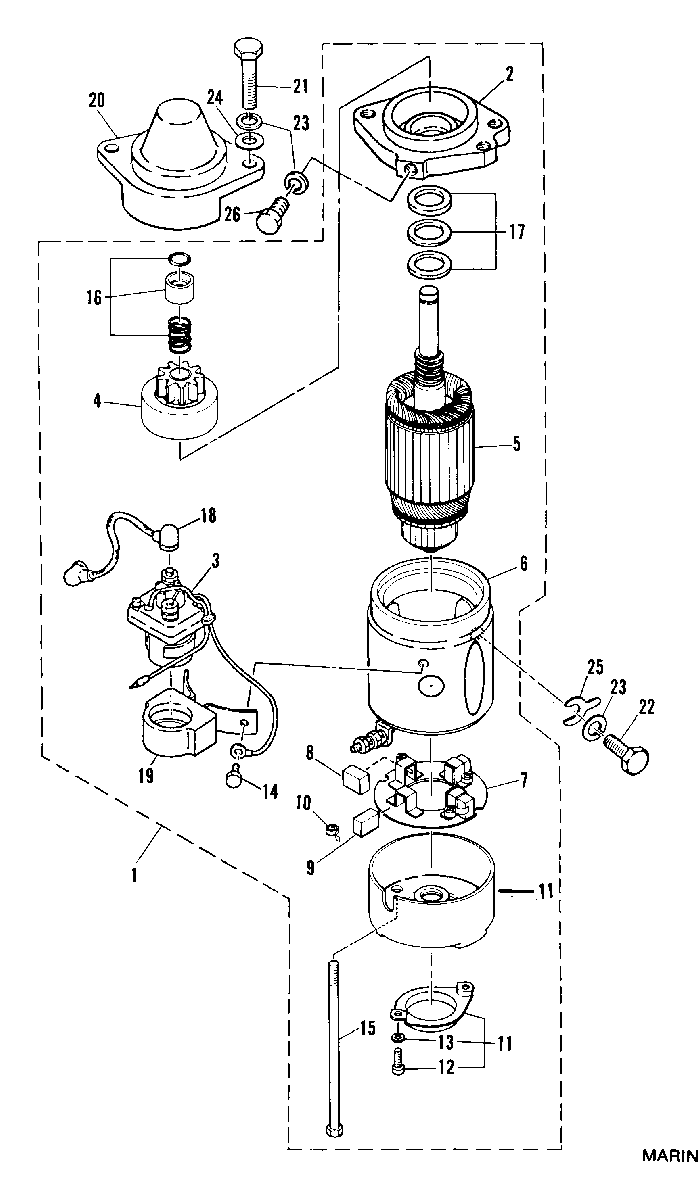

  • 1
    50-97072T ELECTRIC MOTOR ASS'Y
    ELECTRIC MOTOR ASS'Y
  • 2
    83654M FRONT BRACKET
    FRONT BRACKET
  • 3
    89-96357T SWITCH, SOLENOID
    SWITCH, SOLENOID
  • 4
    81504T GEAR
    GEAR
  • 5
    83651M ARMATURE
    ARMATURE
  • 6
    81493M STATOR 1
    STATOR 1
  • 7
    81507M BRUSH HOLDER
    BRUSH HOLDER
  • 8
    94475M BRUSH(+)
    BRUSH(+)
  • 9
    94478M BRUSH (-)
    BRUSH (-)
  • 10
    24-81496M SPRING, BRUSH
    SPRING, BRUSH
  • 11
    81499M REAR COVER ASS'Y
    REAR COVER ASS'Y
  • 12
    10-82515M SCREW
    SCREW
  • 13
    13-82206M WASHER, LOCK
    WASHER, LOCK
  • 14
    10-84088M BOLT
    BOLT
  • 15
    10-81500M BOLT
    BOLT
  • 16
    92671M RING, STOP
    RING, STOP
  • 17
    12-83652M WASHER KIT
    WASHER KIT
  • 18
    92672M WIRE, LEAD
    WIRE, LEAD
  • 19
    84934M MOUNT
    MOUNT
  • 20
    81508M COVER
    COVER
  • 21
    10-84236M BOLT
    BOLT
  • 22
    10-84342M BOLT
    BOLT
  • 23
    13-82215M WASHER
    WASHER
  • 24
    12-82217M WASHER
    WASHER
  • 25
    10-82437M BOLT
    BOLT
