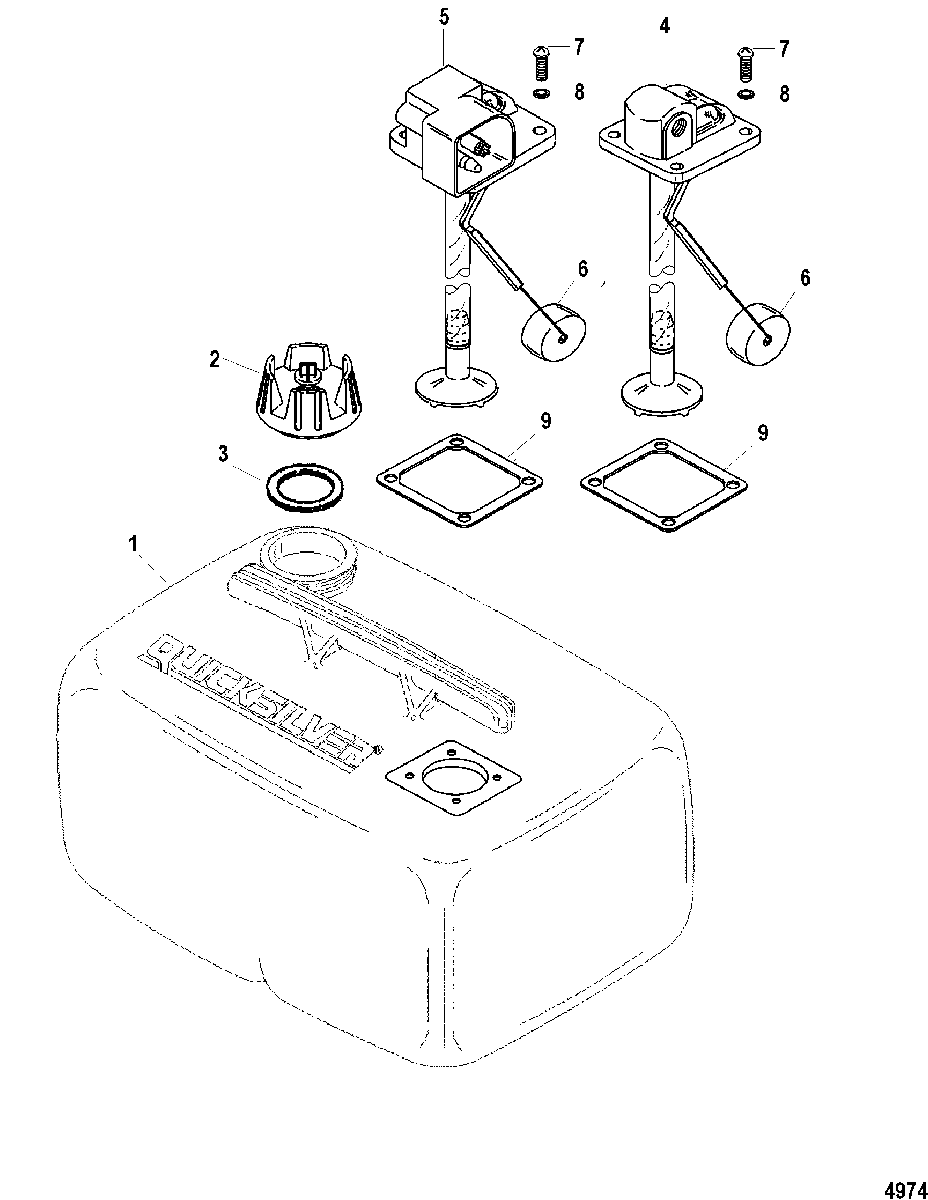

Fuel Tank Assembly(6.6 Gallon) для Mariner - 6 0P017000 THRU 0P325499
-
№АртикулНазвание
-
11265-859065A1 TANK ASSEMBLY, Fuel, Fuel
(Threaded Connection)TANK ASSEMBLY, Fuel, Fuel
(Threaded Connection) -
11265-859065A3 TANK ASSEMBLY, Fuel, Fuel
(Quick Connect)TANK ASSEMBLY, Fuel, Fuel
(Quick Connect) -
236-816976Q1 CAP ASSEMBLY, Fuel, FuelCAP ASSEMBLY, Fuel, Fuel
-
327-8169771 GASKET, Fuel Cap, Fuel CapGASKET, Fuel Cap, Fuel Cap
-
422-8M0047609 PICK UP ASSEMBLY, Fuel
(Threaded Connection)PICK UP ASSEMBLY, Fuel
(Threaded Connection) -
58M0084090 PICK UP ASSEMBLY, Fuel
(Quick Connect)PICK UP ASSEMBLY, Fuel
(Quick Connect) -
6859056 FLOATFLOAT
-
710-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
812-859080 WASHER (Fiber)WASHER (Fiber)
-
927-859072 GASKET, Pick UP BodyGASKET, Pick UP Body
