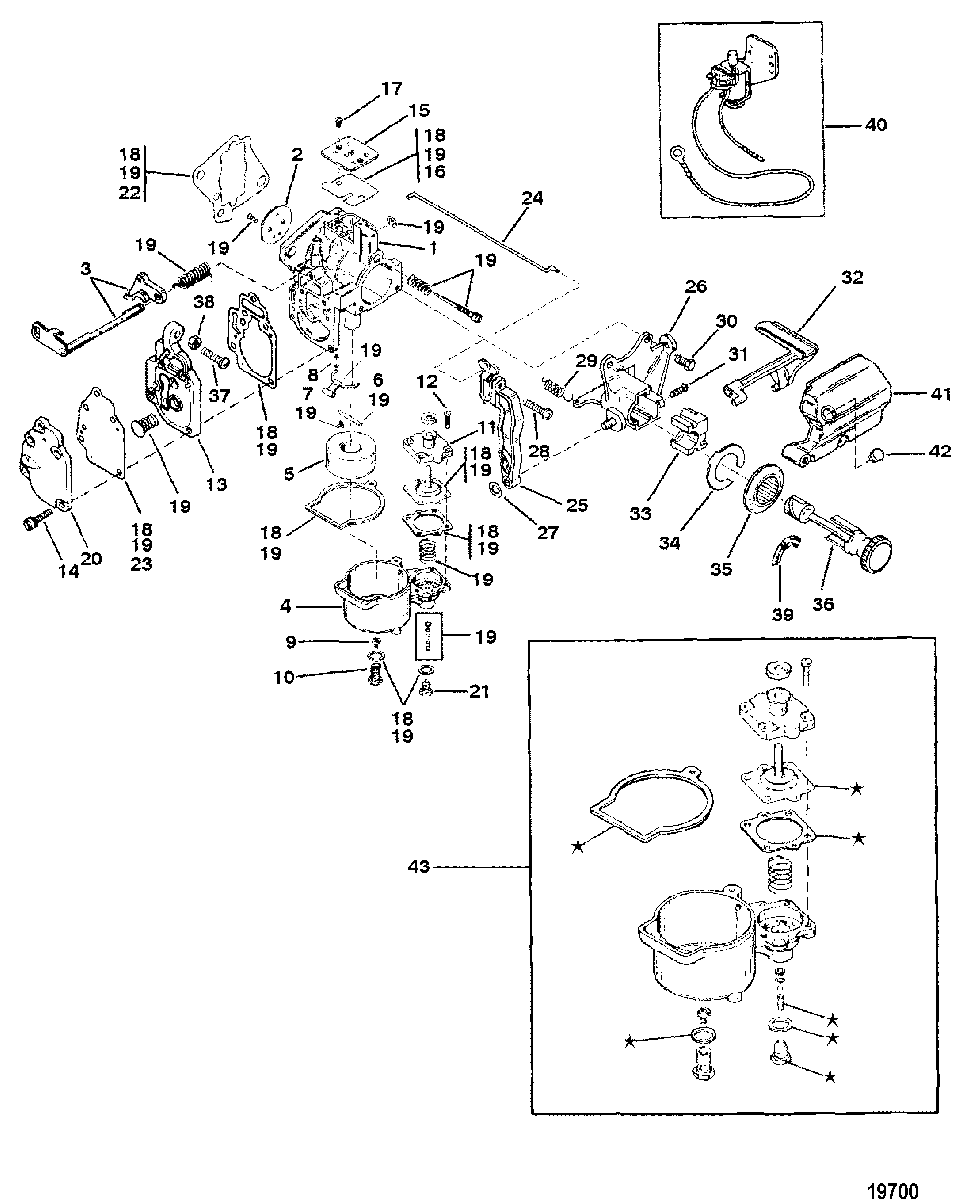

Carb(9.9/15)(USA-S/N-0G112450/BEL-S/N-9831800 & Up) для Mariner - 6 0D281000 THRU 0G760299

№

Артикул

Название
-

1392-8846T28 CARBURETOR
(9.9) (WMC-47)

CARBURETOR
(9.9) (WMC-47)
-

1392-8846T28 CARBURETOR
(9.9) (WMC-47A)

CARBURETOR
(9.9) (WMC-47A)
-

1392-9726T18 CARBURETOR
(15) (WMC-49A)

CARBURETOR
(15) (WMC-49A)
2

1395-94731 VALVE, Throttle
(9.9) (WMC-47/47A)

VALVE, Throttle
(9.9) (WMC-47/47A)
2

1395-823716 VALVE, Throttle
(15) (WMC-49/49A)

VALVE, Throttle
(15) (WMC-49/49A)
3

813022 SHAFT, Throttle (INCL. SCREW/SPRING)
(9.9) (WMC-47/47A)

SHAFT, Throttle (INCL. SCREW/SPRING)
(9.9) (WMC-47/47A)
3

19267 SHAFT, Throttle (INCL. SCREW/SPRING)
(15) (WMC-49/49A)

SHAFT, Throttle (INCL. SCREW/SPRING)
(15) (WMC-49/49A)
4

1395-9164 BOWL, Fuel

BOWL, Fuel
5

1395-91691 FLOAT

FLOAT
6

F10064 SHAFT

SHAFT
7

1395-5902 SCREW, (#6-32 x .187)

SCREW, (#6-32 x .187)
8

98551 VALVE, Inlet Needle

VALVE, Inlet Needle
9

1395-6246 JET, (.048)
(9.9)

JET, (.048)
(9.9)
9

1395-6207 JET, (.072)
(15)

JET, (.072)
(15)
10

1395-9171 PLUG

PLUG
11

1395-823648 COVER, Diaphragm

COVER, Diaphragm
12

1395-9697 SCREW

SCREW
13

1395-9702 BODY

BODY
14

1395-9643 SCREW

SCREW
15

1395-9699 PLATE

PLATE
16

27-44426 GASKET

GASKET
17

1395-9696 SCREW

SCREW
18

1395-97611 GASKET/DIAPHRAGM KIT

GASKET/DIAPHRAGM KIT
19

1395-8237072 REPAIR KIT

REPAIR KIT
20

1395-9637 COVER

COVER
21

1395-9762 PLUG

PLUG
22

27-192061 GASKET, Carburetor (USE WHERE APPLICABLE)

GASKET, Carburetor (USE WHERE APPLICABLE)
23

1395-9635 DIAPHRAGM/GASKET

DIAPHRAGM/GASKET
24

445541 IDLE WIRE

IDLE WIRE
25

128053 LEVER, Fast Idle

LEVER, Fast Idle
26

12803 BRACKET, Primer

BRACKET, Primer
27

11-821979 NUT

NUT
28

10-12110 SCREW, (#6-32 x .750)

SCREW, (#6-32 x .750)
29

24-11277 SPRING, Tension

SPRING, Tension
30

10-400018 SCREW, (M5 x 12)

SCREW, (M5 x 12)
31

10-79965 SCREW, (#8-32 x .500) Stainless Steel

SCREW, (#8-32 x .500) Stainless Steel
32

112731 LEVER, Primer

LEVER, Primer
33

11280 CAM BLOCK

CAM BLOCK
34

53-11278 CLIP, Retaining

CLIP, Retaining
35

12804A1 BEZEL ASSEMBLY, Choke

BEZEL ASSEMBLY, Choke
36

128022 PRIMER KNOB

PRIMER KNOB
37

10-40056110 SCREW, (M5 x 30)

SCREW, (M5 x 30)
38

11-400211 NUT, (M5) Stainless Steel

NUT, (M5) Stainless Steel
39

37-129701 DECAL (SLOW/FAST)

DECAL (SLOW/FAST)
40

1395-823433 CHOKE, Electric

CHOKE, Electric
41

174421 COVER, Carburetor

COVER, Carburetor
42

19-47579 PLUG

PLUG
43

1395-9844A1 SERVICE KIT, Primer/Injector (See Illustration for Contents-Indicated by a Star)

SERVICE KIT, Primer/Injector (See Illustration for Contents-Indicated by a Star)
-

27-42364A92 GASKET SET, Engine

GASKET SET, Engine
-

12750A1 RESTRICTOR PLATE

RESTRICTOR PLATE
