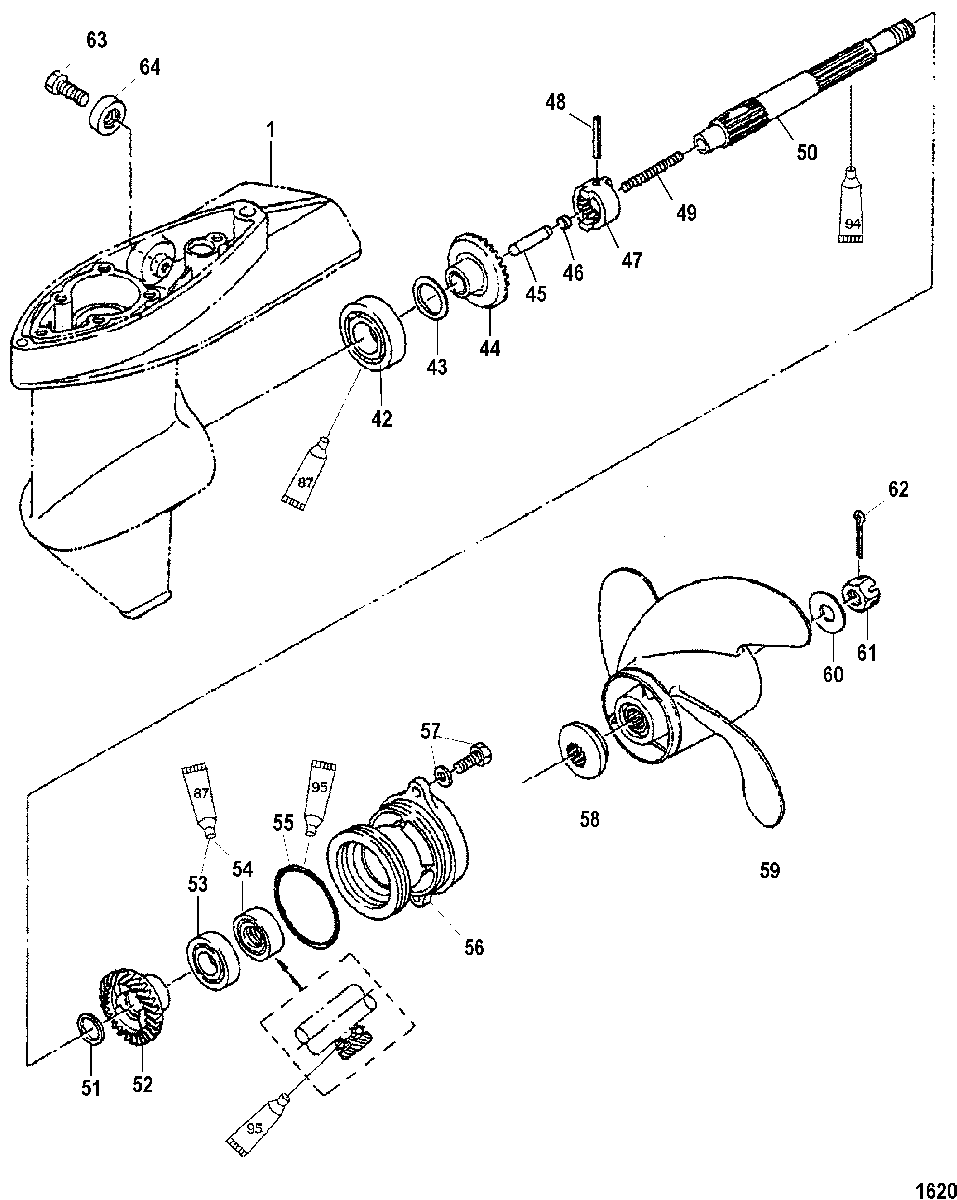

Gear Housing, Propeller Shaft для Mariner - 6 (4-STROKE) 0R411838 & Up

  • №
    Артикул
    Название
  • -
    1600-8M0122306 GEAR HOUSING ASSEMBLY, Complete
    Short
    GEAR HOUSING ASSEMBLY, Complete
    Short
  • -
    1600-8M0122307 GEAR HOUSING ASSEMBLY, Complete
    Long
    GEAR HOUSING ASSEMBLY, Complete
    Long
  • -
    1600-8M0122304 GEAR HOUSING ASSEMBLY, Complete
    Extra long
    GEAR HOUSING ASSEMBLY, Complete
    Extra long
  • -
    1600-8M0122308 GEAR HOUSING ASSEMBLY, Complete
    Sailpower/Sailmate
    GEAR HOUSING ASSEMBLY, Complete
    Sailpower/Sailmate
  • 1
    1668-825132T30 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 1
    1668-9621T6 GEAR HOUSING ASSEMBLY, Basic
    Sailpower/Sailmate
    GEAR HOUSING ASSEMBLY, Basic
    Sailpower/Sailmate
  • 42
    30-16128 BEARING, Ball
    BEARING, Ball
  • 43
    15-16141 SHIM, (0.1)
    SHIM, (0.1)
  • 43
    15-813277 SHIM, (0.15)
    SHIM, (0.15)
  • 44
    43-8M0122680 GEAR
    GEAR
  • 45
    16152 FOLLOWER, Cam
    FOLLOWER, Cam
  • 46
    16153 RETAINER
    RETAINER
  • 47
    52-812946 CLUTCH
    CLUTCH
  • 48
    17-16150 PIN, Clutch
    PIN, Clutch
  • 49
    24-17667 SPRING
    SPRING
  • 50
    44-195133 PROPELLER SHAFT
    PROPELLER SHAFT
  • 51
    12-16140 WASHER
    WASHER
  • 52
    43-8M0122680 GEAR, Reverse
    GEAR, Reverse
  • 53
    30-16132 BEARING, Ball
    BEARING, Ball
  • 54
    26-16130 SEAL, Oil
    SEAL, Oil
  • 55
    25-16131 O-RING
    O-RING
  • 56
    825118T HOUSING
    HOUSING
  • 57
    10-167051 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 58
    16145Q01 THRUST WASHER
    THRUST WASHER
  • 59
    48-16144A01 PROPELLER
    6 Pitch
    PROPELLER
    6 Pitch
  • 59
    48-812951A02 PROPELLER
    6 Pitch - Sailboat
    PROPELLER
    6 Pitch - Sailboat
  • 59
    48-812949A02 PROPELLER, (8.4 X 7 X 3RH)
    7 Pitch - 4 Horsepower - Standard
    PROPELLER, (8.4 X 7 X 3RH)
    7 Pitch - 4 Horsepower - Standard
  • 59
    48-812950A02 PROPELLER
    8 Pitch - 5/6 Horsepower - Standard
    PROPELLER
    8 Pitch - 5/6 Horsepower - Standard
  • 59
    48-8M0081145 PROPELLER
    9 Pitch
    PROPELLER
    9 Pitch
  • 60
    12-16146 WASHER
    WASHER
  • 61
    11-16147 PROP NUT
    PROP NUT
  • 62
    18-815026 COTTER PIN
    COTTER PIN
  • 63
    10-16832 BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 64
    97-875208 ANODE
    ANODE
  • -
    27-8M0134073 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
