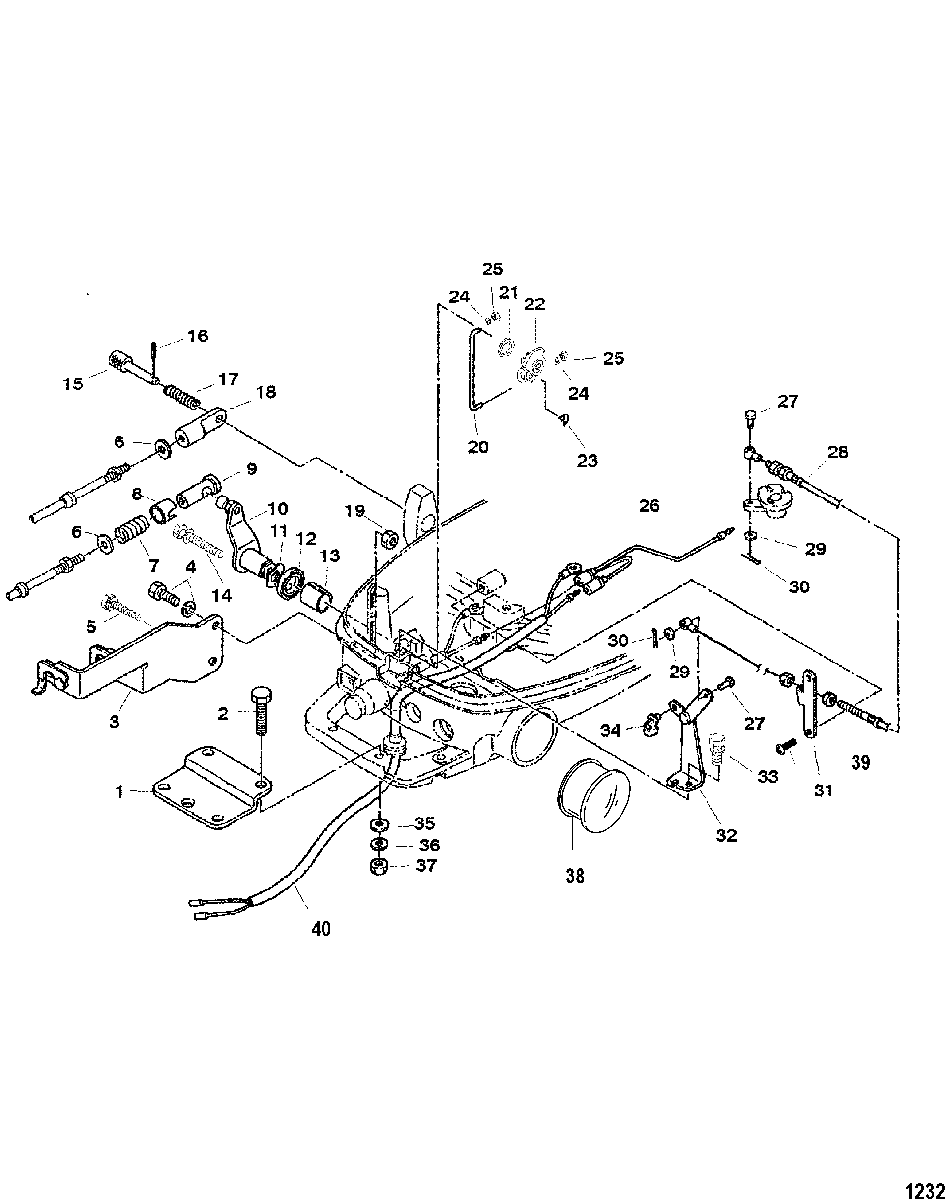

Remote Control Attaching Kit для Mariner - 6 (4-STROKE) 0P401000 THRU 0R411837

№

Артикул

Название
-

803583A4 ATTACHING KIT, Remote Control

ATTACHING KIT, Remote Control
1

8M0062171 PLATE, Steering Hook

PLATE, Steering Hook
2

10-4000354 SCREW, (M8 x 30)

SCREW, (M8 x 30)
3

17023 BRACKET

BRACKET
4

10-8230421 BOLT

BOLT
5

10-162233 SCREW

SCREW
6

12-17029 WASHER

WASHER
7

24-17028 SPRING

SPRING
8

17027 CAP

CAP
9

17026 BRACKET

BRACKET
10

804357 LEVER ASSEMBLY, Throttle

LEVER ASSEMBLY, Throttle
11

13-16221 WAVE WASHER

WAVE WASHER
12

26-16219 SEAL

SEAL
13

23-16220 BUSHING

BUSHING
14

10-162232 BOLT

BOLT
15

17-17031 PIN, Lock

PIN, Lock
16

17-17033 PIN

PIN
17

24-17032 SPRING

SPRING
18

17030 SLEEVE

SLEEVE
19

11-400212 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel
20

803584 ROD, Throttle Link

ROD, Throttle Link
21

23-16849 COLLAR

COLLAR
22

803585 LEVER, Throttle Link

LEVER, Throttle Link
23

11-804993A1 NUT KIT

NUT KIT
24

12-804992 WASHER

WASHER
25

11-804993 WASHER

WASHER
26

84-17035 HARNESS ASSEMBLY

HARNESS ASSEMBLY
27

17-803588 PIN

PIN
28

84-803587 CABLE, Throttle

CABLE, Throttle
29

12-16335 WASHER

WASHER
30

18-16189 COTTER PIN

COTTER PIN
31

803590 BRACKET

BRACKET
32

803589 LINK, Throttle

LINK, Throttle
33

10-16223 BOLT, (M6 x 14)

BOLT, (M6 x 14)
34

16333 ROD, Snap

ROD, Snap
35

12-16192 WASHER

WASHER
36

13-400256 LOCKWASHER, (M6)

LOCKWASHER, (M6)
37

11-400213 NUT, (M8) Stainless Steel

NUT, (M8) Stainless Steel
38

25-885154 GROMMET

GROMMET
39

10-855544 SCREW

SCREW
40

84-17162 HARNESS ASSEMBLY

HARNESS ASSEMBLY
