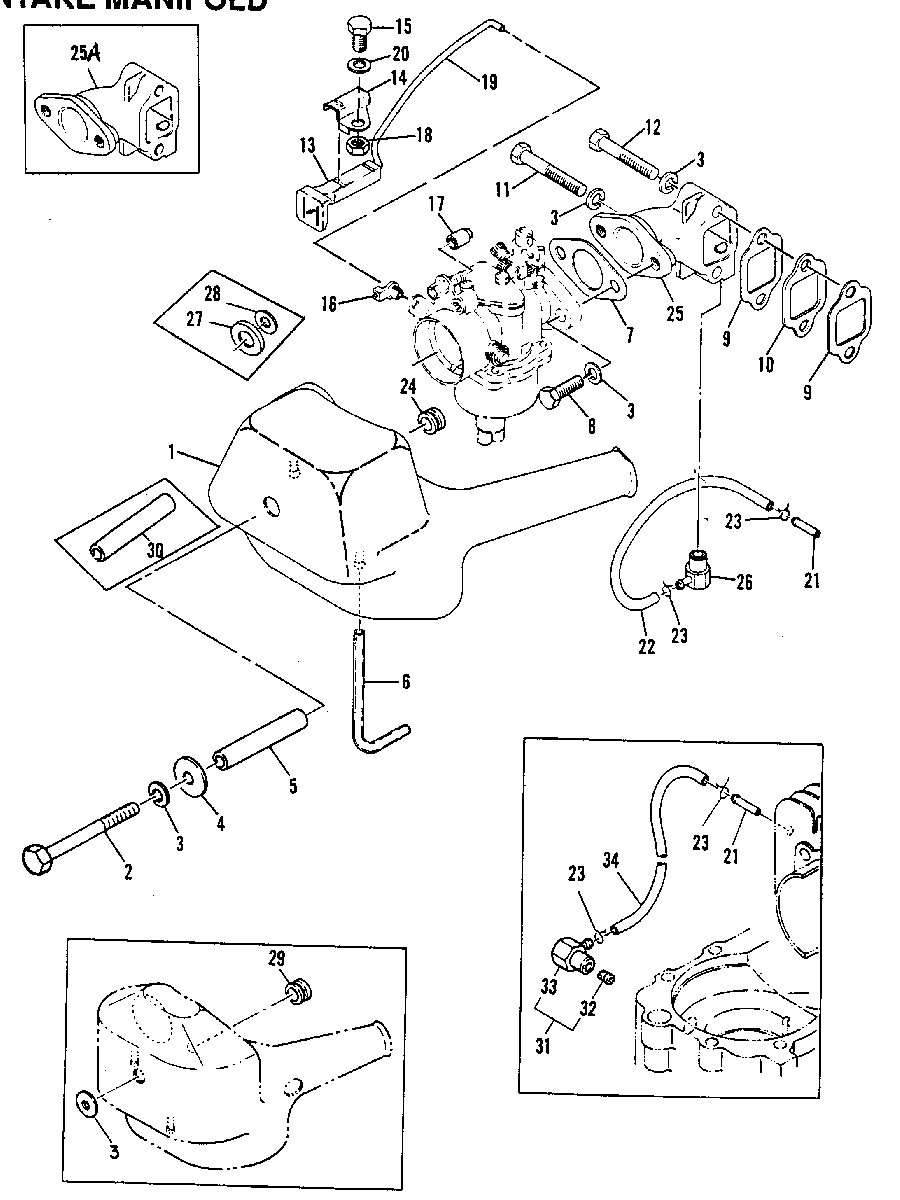

INTAKE MANIFOLD для Mariner - 5A 661-46595 AND BELOW

  • №
    Артикул
    Название
  • 1
    35-82903M AIR FILTER ( AND UP)
    SERIAL 00030091-09999999
    AIR FILTER ( AND UP)
    SERIAL 00030091-09999999
  • 1
    NLA AIR FILTER
    SERIAL 00012656-00030090
    AIR FILTER
    SERIAL 00012656-00030090
  • 1
    35-82588M AIR FILTER
    SERIAL 00000000-00012655
    AIR FILTER
    SERIAL 00000000-00012655
  • 2
    10-84658M BOLT
    BOLT
  • 3
    13-82212M LOCKWASHER
    LOCKWASHER
  • 4
    12-81794M WASHER
    WASHER
  • 5
    23-82719M COLLAR
    COLLAR
  • 6
    32-82026M HOSE
    HOSE
  • 7
    27-80067M GASKET
    GASKET
  • 8
    10-84058M BOLT
    BOLT
  • 9
    27-80956M GASKET
    GASKET
  • 10
    27-80957M SPACER
    SPACER
  • 11
    10-84657M BOLT
    BOLT
  • 12
    10-827043M BOLT
    BOLT
  • 13
    81193M CHOKE KNOB
    CHOKE KNOB
  • 14
    81192M GUIDE
    GUIDE
  • 15
    10-82405M BOLT
    SERIAL 00018546-09999999
    BOLT
    SERIAL 00018546-09999999
  • 15
    10-91772M BOLT
    SERIAL 00000000-00018545
    BOLT
    SERIAL 00000000-00018545
  • 16
    16333 CONNECTOR
    CONNECTOR
  • 17
    80092M COVER
    COVER
  • 18
    11-82389M NUT
    SERIAL 00018546-09999999
    NUT
    SERIAL 00018546-09999999
  • 19
    81190M ROD
    ROD
  • 20
    12-82214M WASHER
    WASHER
  • 21
    22-80122M FITTING
    FITTING
  • 22
    32-811045M HOSE
    SERIAL 00016636-09999999
    HOSE
    SERIAL 00016636-09999999
  • 23
    54-82046M CLAMP
    CLAMP
  • 24
    NLA GROMMET
    SERIAL 00020091-09999999
    GROMMET
    SERIAL 00020091-09999999
  • 25
    NLA INTAKE MANIFOLD
    SERIAL 00016636-09999999
    INTAKE MANIFOLD
    SERIAL 00016636-09999999
  • 26
    21-80727M CHECK VALVE
    SERIAL 00016636-09999999
    CHECK VALVE
    SERIAL 00016636-09999999
  • 25A
    82677M INTAKE MANIFOLD
    SERIAL 00000000-00016635
    INTAKE MANIFOLD
    SERIAL 00000000-00016635
  • 27
    NLA SEAL
    SERIAL 00000000-00030090
    SEAL
    SERIAL 00000000-00030090
  • 28
    12-83769M WASHER
    SERIAL 00000000-00030090
    WASHER
    SERIAL 00000000-00030090
  • 29
    NLA GROMMET
    SERIAL 00000000-00030090
    GROMMET
    SERIAL 00000000-00030090
  • 30
    NLA COLLAR
    SERIAL 00000000-00030090
    COLLAR
    SERIAL 00000000-00030090
  • 31
    21-80727M CHECK VALVE
    SERIAL 00000000-00016635
    CHECK VALVE
    SERIAL 00000000-00016635
  • 32
    22-81256M NIPPLE
    SERIAL 00000000-00016635
    NIPPLE
    SERIAL 00000000-00016635
  • 33
    21-80107M CHECK VALVE
    SERIAL 00000000-00016635
    CHECK VALVE
    SERIAL 00000000-00016635
  • 34
    32-811045M HOSE
    SERIAL 00000000-00016635
    HOSE
    SERIAL 00000000-00016635
