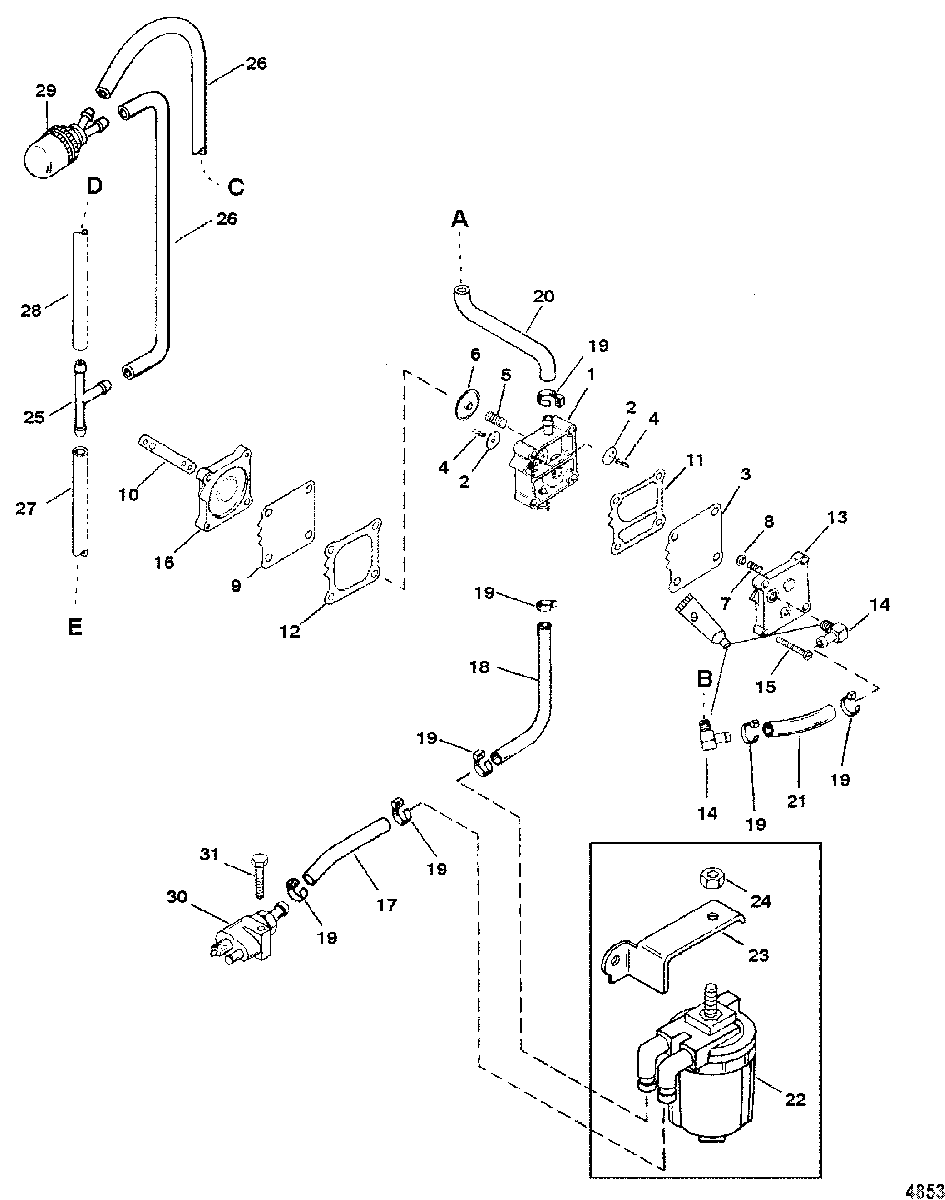

Fuel Pump, Manual для Mariner - 55 (3 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
-14360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
1NSS NOT SOLD SEPARATE, Fuel PumpNOT SOLD SEPARATE, Fuel Pump
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
4NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
5NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
6NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
1027-987691 GASKETGASKET
-
11NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
12NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
13987752 PLATEPLATE
-
1422-433351 CONNECTOR, 90 Degree (.125-27) NylonCONNECTOR, 90 Degree (.125-27) Nylon
-
1510-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1510-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
16144303 BASEBASE
-
1732-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
(Cut to 10.00 Inch Length)TUBING, (.312) (70.00 Inches Bulk)
(Cut to 10.00 Inch Length) -
1832-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
(Cut to 14.25 Inch Length)TUBING, (.312) (70.00 Inches Bulk)
(Cut to 14.25 Inch Length) -
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2032-830768 HOSEHOSE
-
2132-9912878 HOSE, (.187) (26.00 Inches Bulk)
(Cut to 4.25 Inch Length)HOSE, (.187) (26.00 Inches Bulk)
(Cut to 4.25 Inch Length) -
2235-8M0063726 FILTER, Fuel
(Use with WME-57/58 Carburetor)FILTER, Fuel
(Use with WME-57/58 Carburetor) -
2235-8M0063726 FILTER ASSEMBLY, Fuel
(Use with WME-94/95 Carburetor)FILTER ASSEMBLY, Fuel
(Use with WME-94/95 Carburetor) -
238170281 BRACKETBRACKET
-
2411-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2522-59169003 FITTING, TeeFITTING, Tee
-
2632-892024122 TUBING, (20.00 Feet Bulk)
(Cut to 9.50 Inch Length)TUBING, (20.00 Feet Bulk)
(Cut to 9.50 Inch Length) -
2732-892024122 TUBING, (20.00 Feet Bulk)
(Cut to 5.50 Inch Length)TUBING, (20.00 Feet Bulk)
(Cut to 5.50 Inch Length) -
2832-892024122 TUBING, (20.00 Feet Bulk)
(Cut to 1.50 Inch Length)TUBING, (20.00 Feet Bulk)
(Cut to 1.50 Inch Length) -
29858763 PRIMER BULBPRIMER BULB
-
3022-816856T01 CONNECTOR ASSEMBLY, FuelCONNECTOR ASSEMBLY, Fuel
-
3110-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
-27-812867A97 GASKET SETGASKET SET
-
-852071T97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
