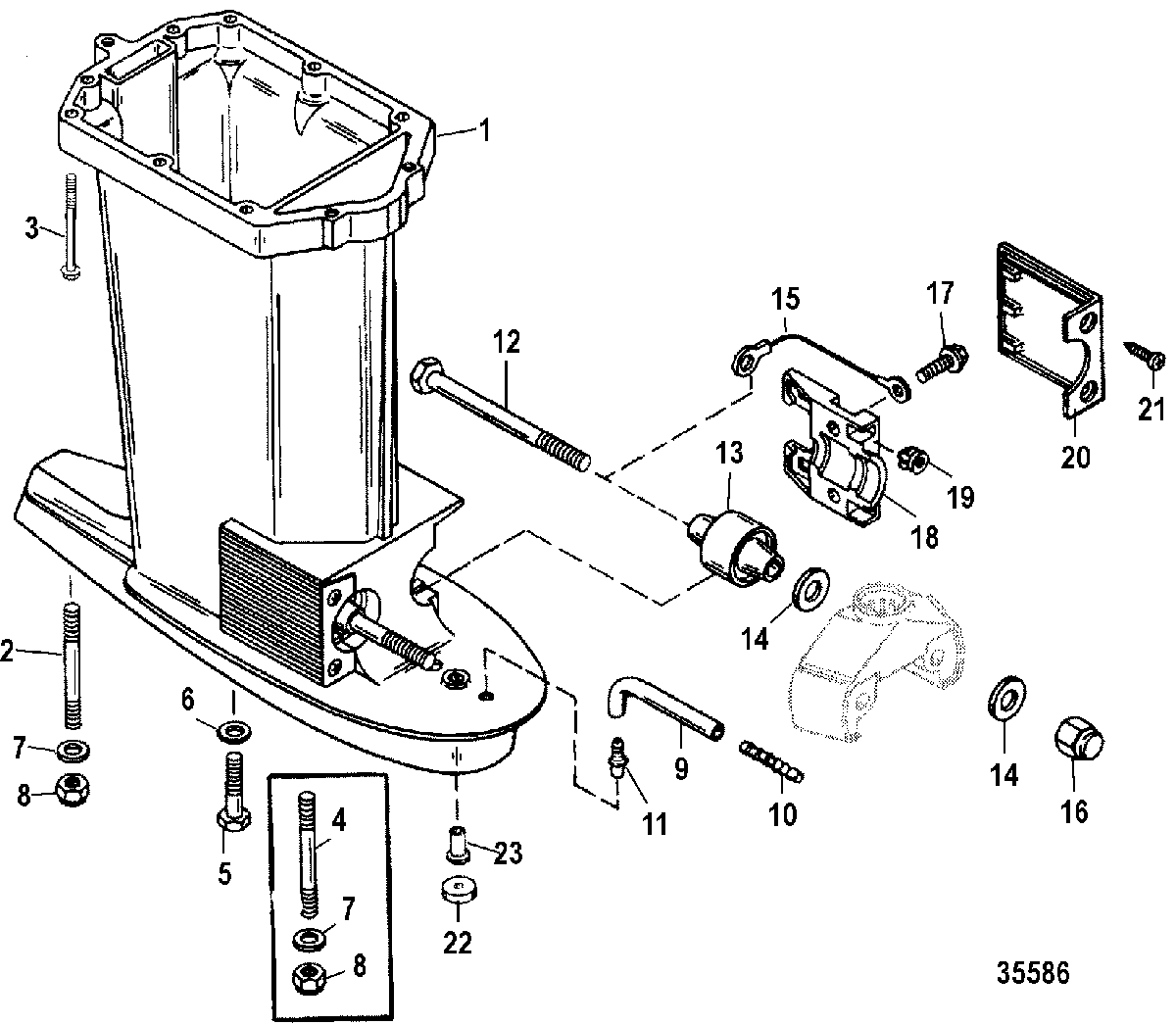

Driveshaft Housing для Mariner - 55 (3 CYL.) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    3516-816528A1 HOUSING ASSEMBLY, Driveshaft
    (BLACK) SHORT
    HOUSING ASSEMBLY, Driveshaft
    (BLACK) SHORT
  • 1
    3516-816528T2 HOUSING ASSEMBLY, Driveshaft
    (GRAY) SHORT
    HOUSING ASSEMBLY, Driveshaft
    (GRAY) SHORT
  • 1
    3510-9864T6 HOUSING ASSEMBLY, Driveshaft
    (BLACK) LONG
    HOUSING ASSEMBLY, Driveshaft
    (BLACK) LONG
  • 1
    3510-9864T6 HOUSING ASSEMBLY, Driveshaft
    (GRAY) LONG
    HOUSING ASSEMBLY, Driveshaft
    (GRAY) LONG
  • 1
    3516-816528A3 HOUSING ASSEMBLY, Driveshaft
    (BLACK - JET 45)
    HOUSING ASSEMBLY, Driveshaft
    (BLACK - JET 45)
  • 1
    3516-816528A4 HOUSING ASSEMBLY, Driveshaft
    (GRAY - JET 45)
    HOUSING ASSEMBLY, Driveshaft
    (GRAY - JET 45)
  • 2
    16-903507 STUD, (M10 x 60)
    (SHORT/LONG)
    STUD, (M10 x 60)
    (SHORT/LONG)
  • 2
    16-903501 STUD, (M10 x 100)
    (60 BIG FOOT - LONG)
    STUD, (M10 x 100)
    (60 BIG FOOT - LONG)
  • 2
    16-8M0034445 STUD, (M10 x 166)
    (60 BIG FOOT - LL)
    STUD, (M10 x 166)
    (60 BIG FOOT - LL)
  • 3
    10-817430110 SCREW, (M10 x 110)
    SCREW, (M10 x 110)
  • 4
    16-8M0034446 STUD, (M10 x 124)
    (60 BIGFOOT LL)
    STUD, (M10 x 124)
    (60 BIGFOOT LL)
  • 4
    16-8M0034425 STUD, (M10 x 120)
    (55 LL)
    STUD, (M10 x 120)
    (55 LL)
  • 5
    10-4000380 SCREW, (M10 x 45)
    (SHORT/LONG)(NON JET MODELS)
    SCREW, (M10 x 45)
    (SHORT/LONG)(NON JET MODELS)
  • 6
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    NON BIGFOOT MODELS
    WASHER, (.406 x .750 x .105) Stainless Steel
    NON BIGFOOT MODELS
  • 7
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    NON BIGFOOT MODELS
    WASHER, (.406 x .750 x .105) Stainless Steel
    NON BIGFOOT MODELS
  • 8
    11-40140 NUT, (M10)
    NON BIGFOOT MODELS
    NUT, (M10)
    NON BIGFOOT MODELS
  • 6
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    BIGFOOT MODELS
    WASHER, (.406 x .750 x .105) Stainless Steel
    BIGFOOT MODELS
  • 7
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    BIGFOOT MODELS
    WASHER, (.406 x .750 x .105) Stainless Steel
    BIGFOOT MODELS
  • 8
    11-40140 NUT, (M10)
    BIGFOOT MODELS
    NUT, (M10)
    BIGFOOT MODELS
  • 9
    22-85822A7 SPEEDOMETER PICK UP
    SPEEDOMETER PICK UP
  • 10
    22-85822T CONNECTOR, Straight
    CONNECTOR, Straight
  • 11
    22-13035002 FITTING
    FITTING
  • 12
    10-898835001 BOLT, (M12 x 154)
    BOLT, (M12 x 154)
  • 13
    42930A1 MOUNT ASSEMBLY, Lower
    MOUNT ASSEMBLY, Lower
  • 14
    12-20959 WASHER
    WASHER
  • 15
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 16
    11-43528 NUT, (M12)
    NUT, (M12)
  • 17
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    SCREW, (M8 x 25) Stainless Steel
  • 18
    8M0036730 CLAMP
    CLAMP
  • 19
    11-35521 NUT
    NUT
  • 20
    100-8M4500752 COVER, Black
    COVER, Black
  • 20
    100-8M4500752 COVER, Gray
    COVER, Gray
  • 21
    10-88417 SCREW, (#12-24 x .620)
    SCREW, (#12-24 x .620)
  • 22
    23-813745 SPACER
    SPACER
  • 22
    23-8137451 SPACER
    (LL)
    SPACER
    (LL)
  • 23
    43585 COUPLING
    COUPLING
