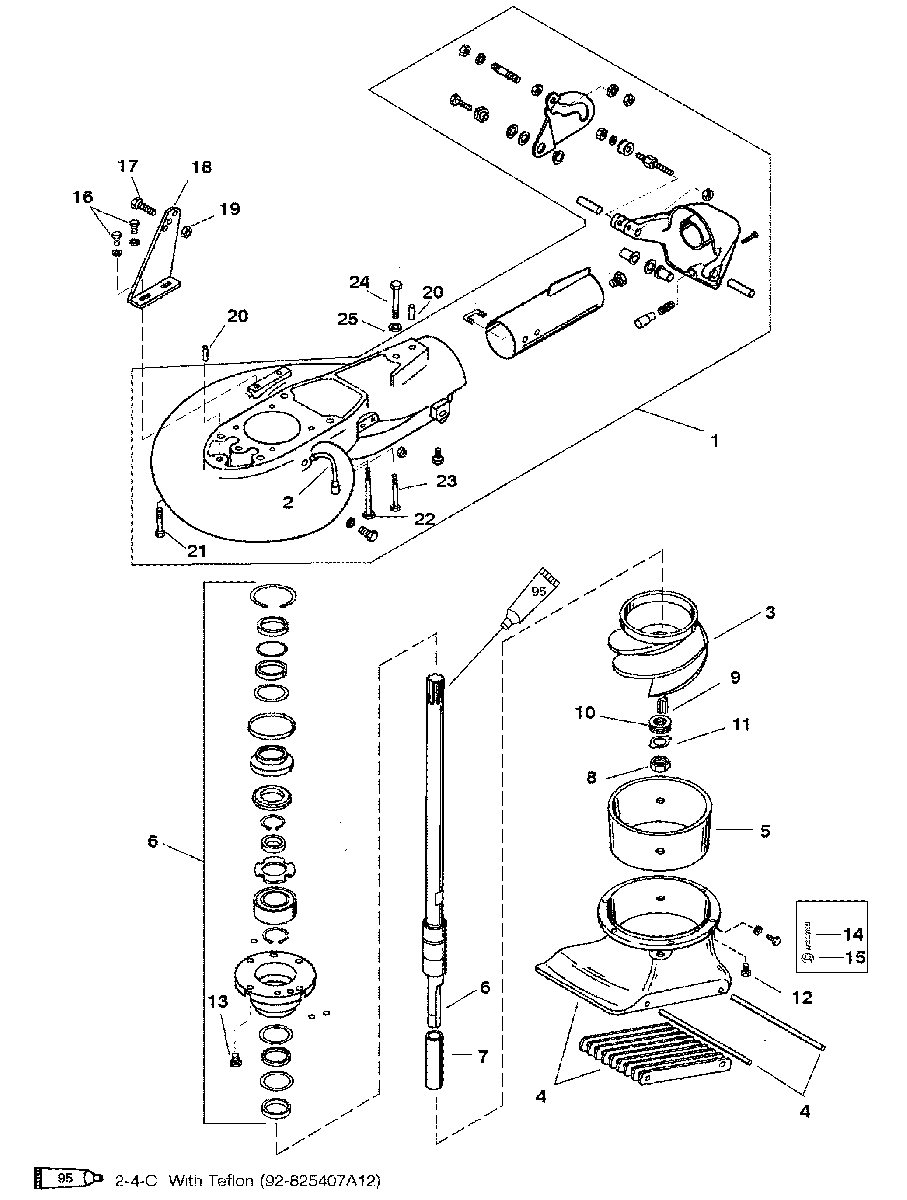

JET PUMP ASSEMBLY для Mariner - 55 (3 CYL.) 0G290585 THRU 0G589999

№

Артикул

Название
-

856143A6 JET PUMP ASSEMBLY
(BLACK) USA-S/N-0G580494 & BELOW

JET PUMP ASSEMBLY
(BLACK) USA-S/N-0G580494 & BELOW
-

856143A6 JET PUMP ASSEMBLY
(GRAY) USA-S/N-0G580494 & BELOW

JET PUMP ASSEMBLY
(GRAY) USA-S/N-0G580494 & BELOW
-

856143A6 JET PUMP ASSEMBLY
(BLACK) (USA-S/N-0G580495 & UP)

JET PUMP ASSEMBLY
(BLACK) (USA-S/N-0G580495 & UP)
1

801411T60 HOUSING-PUMP
(USA-S/N-0G580494 & BELOW)

HOUSING-PUMP
(USA-S/N-0G580494 & BELOW)
1

855767T60 HOUSING-PUMP
(USA-S/N-0G580495 & UP)

HOUSING-PUMP
(USA-S/N-0G580495 & UP)
2

32-827490 HOSE-LUBE

HOSE-LUBE
3

47-855708T60 IMPELLER

IMPELLER
4

80141260 HOUSING-INTAKE

HOUSING-INTAKE
5

8271882 LINER

LINER
6

45-80141360 DRIVESHAFT
(USA-S/N-0G580494 & BELOW)

DRIVESHAFT
(USA-S/N-0G580494 & BELOW)
6

45-85576960 DRIVESHAFT
(USA-S/N-0G580495 & UP)

DRIVESHAFT
(USA-S/N-0G580495 & UP)
7

23-8271891 SLEEVE

SLEEVE
8

11-8271901 NUT

NUT
9

28-801405875 KEY

KEY
10

15-801404875 SHIM

SHIM
11

14-801403875 TAB WASHER

TAB WASHER
12

10-848497 SCREW (.312-18 X .1)

SCREW (.312-18 X .1)
13

10-19923088 SCREW (1/4-20 X .875)
(USA-S/N-0G580494 & BELOW)

SCREW (1/4-20 X .875)
(USA-S/N-0G580494 & BELOW)
13

10-848497 SCREW (.312-18 X .1)
USA-S/N-0G580495 & UP

SCREW (.312-18 X .1)
USA-S/N-0G580495 & UP
14

16-855840 STUD (.312-18 X1.81)
USA-S/N-0G580495 & UP

STUD (.312-18 X1.81)
USA-S/N-0G580495 & UP
15

11-82670910 NUT
USA-S/N-0G580495 & UP

NUT
USA-S/N-0G580495 & UP
16

10-19923062 SCREW (1/4-20 X .625)

SCREW (1/4-20 X .625)
17

10-60411 SCREW (.312-18 X 1.25)

SCREW (.312-18 X 1.25)
18

801410 BRACKET

BRACKET
19

11-82670910 NUT

NUT
20

17-801407 PIN-DOWEL

PIN-DOWEL
21

10-4010860 SCREW (M10 X 60)

SCREW (M10 X 60)
22

10-4010890 SCREW (M10 X 90)

SCREW (M10 X 90)
23

10-4010870 SCREW (M10 X 70)

SCREW (M10 X 70)
24

10-95802 SCREW (.375-16 X 3-1/4)

SCREW (.375-16 X 3-1/4)
25

12-856774 WASHER

WASHER
