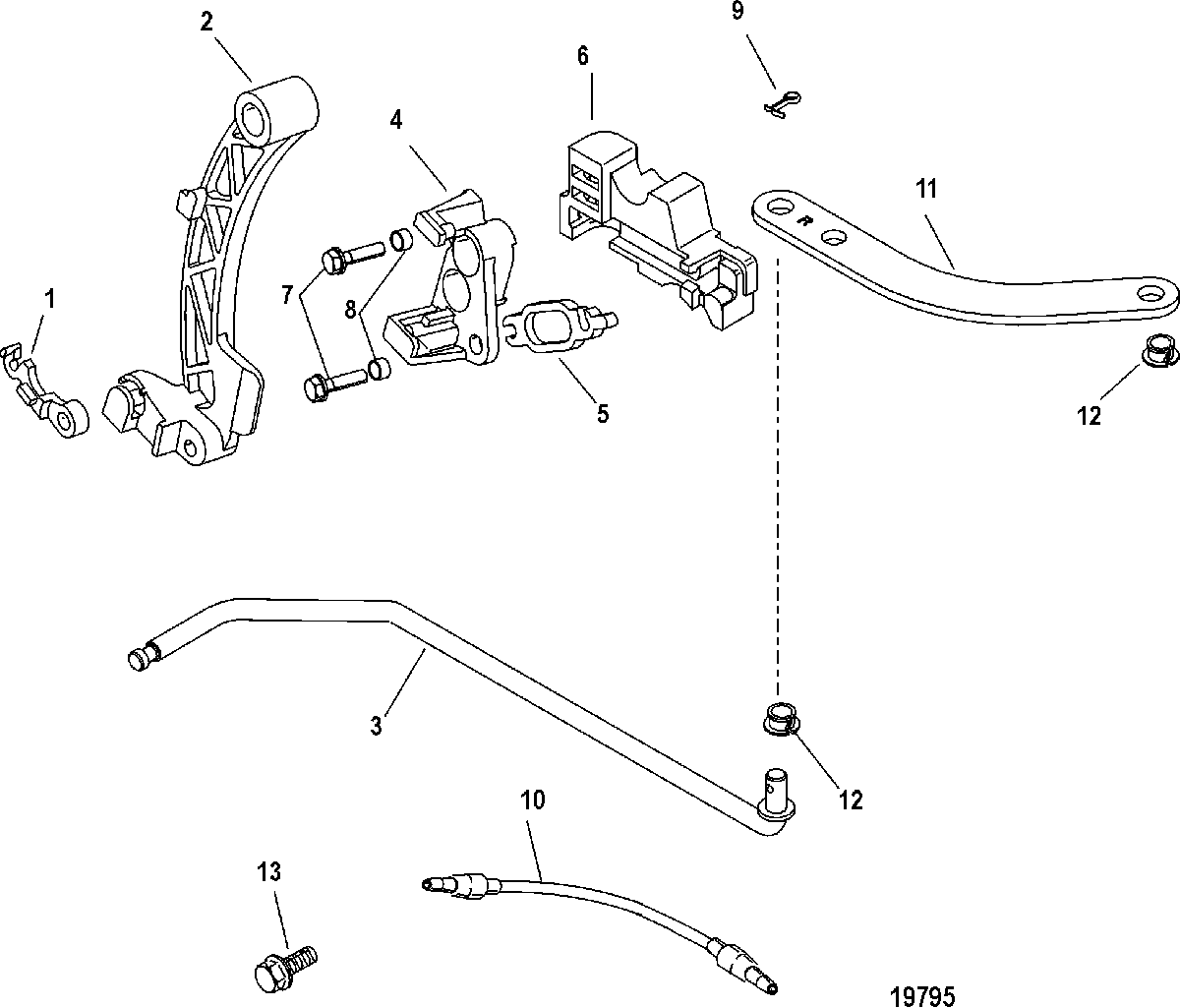

Attaching Kit - Remote Control(880093A 2) для Mariner - 50 EFI (4 CYL.)(4-STROKE) 1C000001 THRU 1C050251
-
№АртикулНазвание
-
-880093A2 ATTACHING KIT, Remote ControlATTACHING KIT, Remote Control
-
1822459 RETAINERRETAINER
-
28259571 LEVER, ShiftLEVER, Shift
-
3893777 SHIFT RODSHIFT ROD
-
4827706A4 BRACKETBRACKET
-
598889 LATCHLATCH
-
6NSS NOT SOLD SEPARATE, Guide-Shift RodNOT SOLD SEPARATE, Guide-Shift Rod
-
710-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
823-15885 SLEEVESLEEVE
-
918-210711 COTTER PINCOTTER PIN
-
1084-11149A52 CABLE ASSEMBLY, Adaptor - YellowCABLE ASSEMBLY, Adaptor - Yellow
-
11893769A01 SHIFT LINKSHIFT LINK
-
1223-48475 BUSHINGBUSHING
-
1310-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
