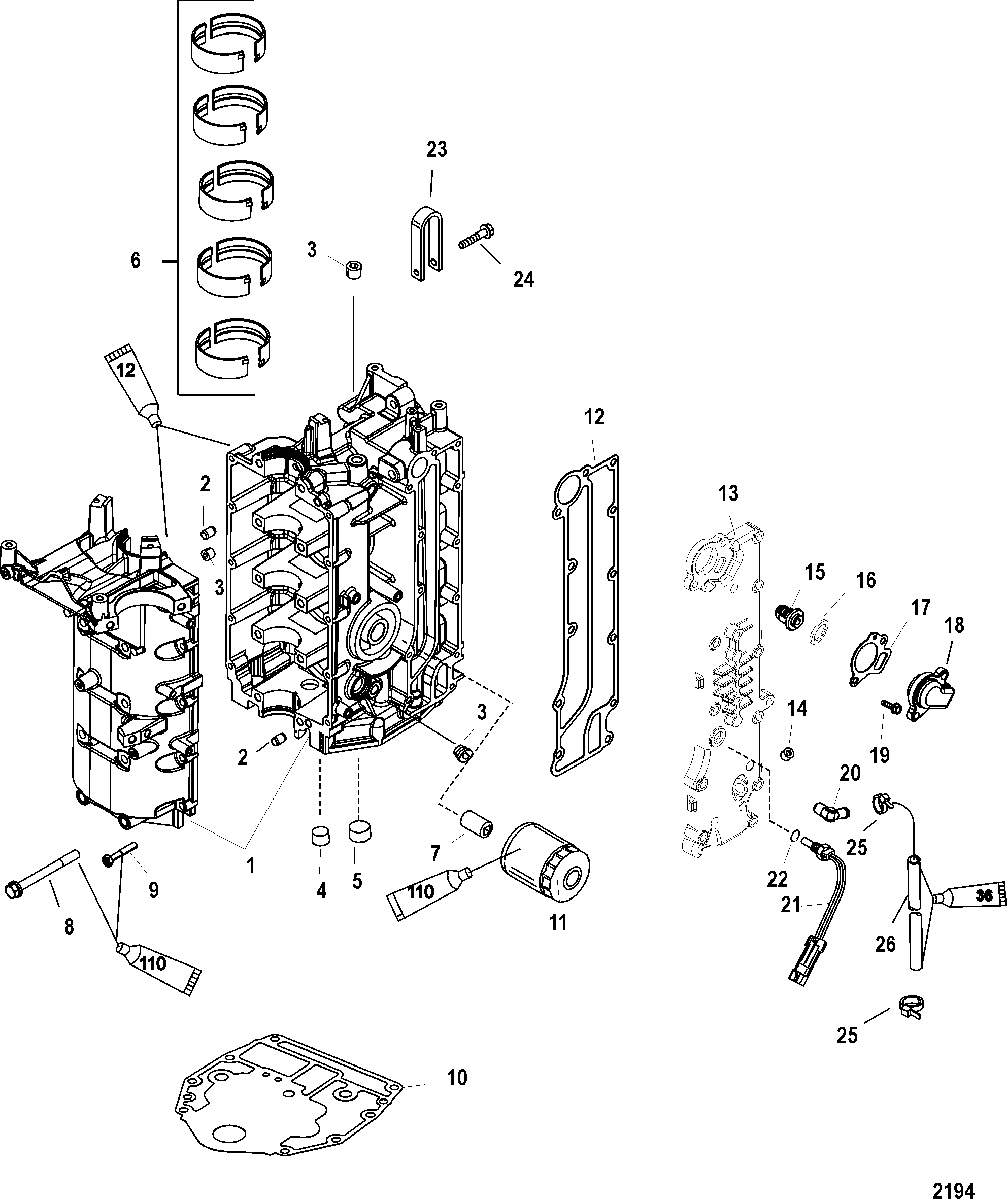

Cylinder Block and Crankcase для Mariner - 50 EFI (4 CYL.)(4-STROKE) 0T409000 THRU 1B344306
-
№АртикулНазвание
-
1800-893502T02 CYLINDER BLOCKCYLINDER BLOCK
-
217-825010 PIN, DowelPIN, Dowel
-
322-479452 PLUGPLUG
-
422-889567 PLUG, (.500-14)PLUG, (.500-14)
-
522-416223 PLUG, Pipe (.750-14)PLUG, Pipe (.750-14)
-
623-893631 BEARING, BrownBEARING, Brown
-
623-893631001 BEARING, BlackBEARING, Black
-
623-893631002 BEARING, BlueBEARING, Blue
-
7822625 NIPPLE, (M20)NIPPLE, (M20)
-
810-82506182 SCREW, (M8 x 82)SCREW, (M8 x 82)
-
910-88348935 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
1027-892319001 GASKET
SN# USA-0T979999/BEL-0P325499 & BelowGASKET
SN# USA-0T979999/BEL-0P325499 & Below -
1027-892319001 GASKET
SN# USA-0T980000/BEL-0P325500 & UpGASKET
SN# USA-0T980000/BEL-0P325500 & Up -
1135-8M0065104 FILTER, Oil
SN# USA-0T800999/BEL-0P267999 & BelowFILTER, Oil
SN# USA-0T800999/BEL-0P267999 & Below -
1135-8M0065104 FILTER, Oil
SN# USA-0T801000/BEL-0P268000 & UpFILTER, Oil
SN# USA-0T801000/BEL-0P268000 & Up -
1227-857078 GASKETGASKET
-
138M0118194 COVER, Exhaust
SN# USA-0T979999/BEL-0P325499 & BelowCOVER, Exhaust
SN# USA-0T979999/BEL-0P325499 & Below -
138M0118194 COVER, Exhaust
SN# USA-0T980000/BEL-0P325500 & UpCOVER, Exhaust
SN# USA-0T980000/BEL-0P325500 & Up -
1422-479452 PLUGPLUG
-
1514586 THERMOSTATTHERMOSTAT
-
1627-887978 GASKETGASKET
-
1727-824853 GASKETGASKET
-
188M0008243 COVERCOVER
-
1910-88348935 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2022-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
21889575 SENSOR ASSEMBLY, Temperature
SN# USA-0T800999/BEL-0P267999 & BelowSENSOR ASSEMBLY, Temperature
SN# USA-0T800999/BEL-0P267999 & Below -
21889575 SENSOR ASSEMBLY
SN# USA-0T801000/BEL-0P268000 & UpSENSOR ASSEMBLY
SN# USA-0T801000/BEL-0P268000 & Up -
2225-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
23893697 LIFTING EYELIFTING EYE
-
2410-857139 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2632-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 10 Inches) To VST CoolerTUBING, (.312) (70.00 Inches Bulk) (Cut to 10 Inches) To VST Cooler
-
-27-883599A02 GASKET SETGASKET SET
-
-61-893678T03 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
