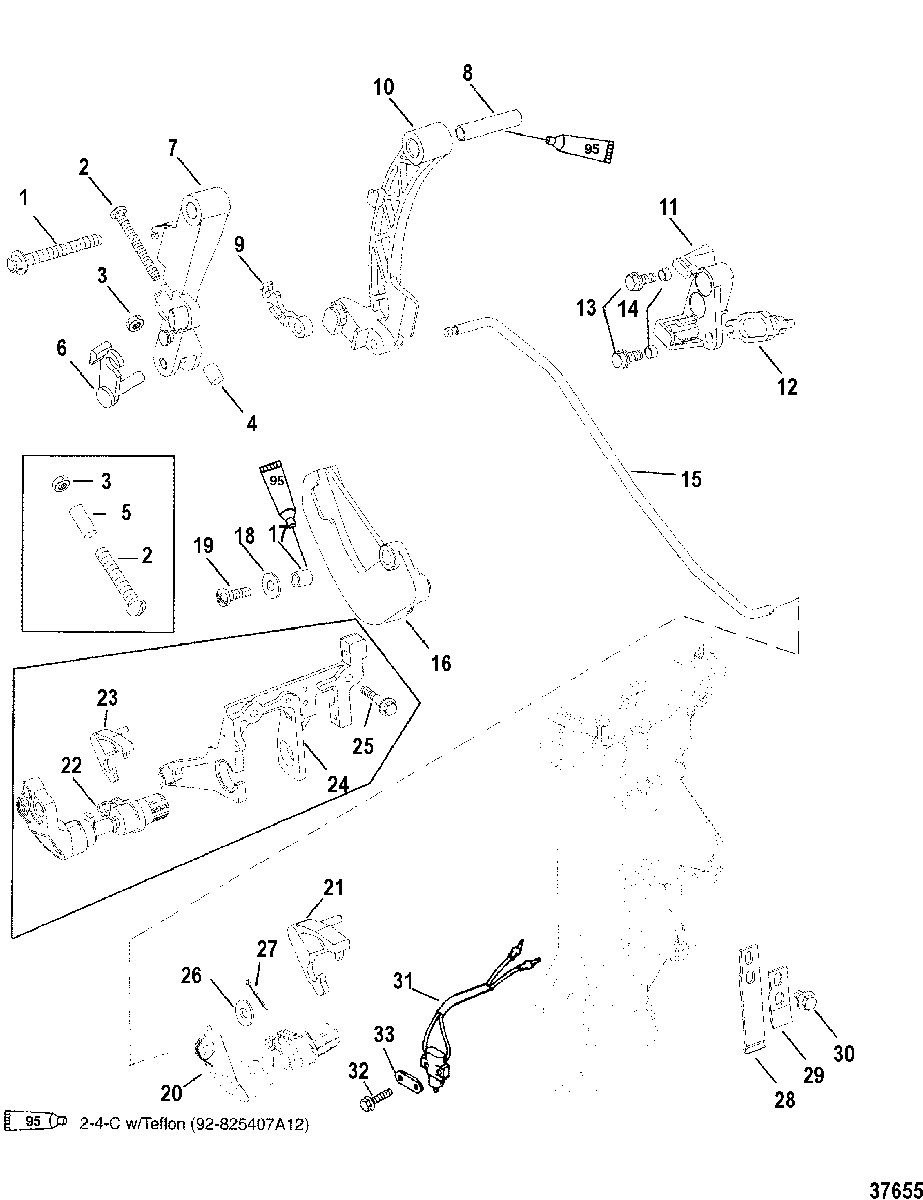

LINKAGE(NON BIGFOOT) для Mariner - 50 BIGFOOT (4-STROKE) 9944807 THRU 0P016999
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAP
(40/50)CAP
(40/50) -
523-830181 BUSHING
(45)BUSHING
(45) -
6826587 RETAINERRETAINER
-
7822682A4 LEVER, ThrottleLEVER, Throttle
-
823-825078 BUSHINGBUSHING
-
9822459 RETAINER
NON HANDLERETAINER
NON HANDLE -
108259571 LEVER, Shift
NON HANDLE SN# 0G590000 & UpLEVER, Shift
NON HANDLE SN# 0G590000 & Up -
108259571 LEVER, Shift
NON HANDLE SN# 0G589999 & BelowLEVER, Shift
NON HANDLE SN# 0G589999 & Below -
11827706A4 BRACKET
NON HANDLEBRACKET
NON HANDLE -
1298889 LATCH
NON HANDLELATCH
NON HANDLE -
1310-8248324 SCREW, (M6 x 16)
NON HANDLESCREW, (M6 x 16)
NON HANDLE -
1423-15885 SLEEVE
NON HANDLESLEEVE
NON HANDLE -
15882820 SHIFT ROD
NON HANDLESHIFT ROD
NON HANDLE -
168262311 CAMCAM
-
168262312 CAM, Throttle
(40 ITALIAN)CAM, Throttle
(40 ITALIAN) -
1723-309772 SPACERSPACER
-
1812-4002314 WASHERWASHER
-
1910-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
20826588A4 SHIFT SHAFT ASSEMBLY, Horizontal
SN# 0G472133 & UpSHIFT SHAFT ASSEMBLY, Horizontal
SN# 0G472133 & Up -
218277071 RETAINER
SN# 0G472133 & UpRETAINER
SN# 0G472133 & Up -
22826588A1 SHIFT SHAFT ASSEMBLY, Horizontal
SN# 0G472132 & BelowSHIFT SHAFT ASSEMBLY, Horizontal
SN# 0G472132 & Below -
238277071 RETAINER
SN# 0G472132 & BelowRETAINER
SN# 0G472132 & Below -
248030072 BRACKET
SN# 0G472132 & BelowBRACKET
SN# 0G472132 & Below -
2510-8248326 SCREW, (M6 x 25 MM)
SN# 0G472132 & BelowSCREW, (M6 x 25 MM)
SN# 0G472132 & Below -
2612-4002316 WASHERWASHER
-
2718-210711 COTTER PINCOTTER PIN
-
2824-826077 SPRING, DetentSPRING, Detent
-
29824994 SPRING, PlateSPRING, Plate
-
3010-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
3187-8M0052927 SWITCH
HANDLE MODELSSWITCH
HANDLE MODELS -
3210-88075020 SCREW, (M3.5 x 20) Stainless Steel
HANDLE MODELSSCREW, (M3.5 x 20) Stainless Steel
HANDLE MODELS -
33824923 PLATE
HANDLE MODELSPLATE
HANDLE MODELS
