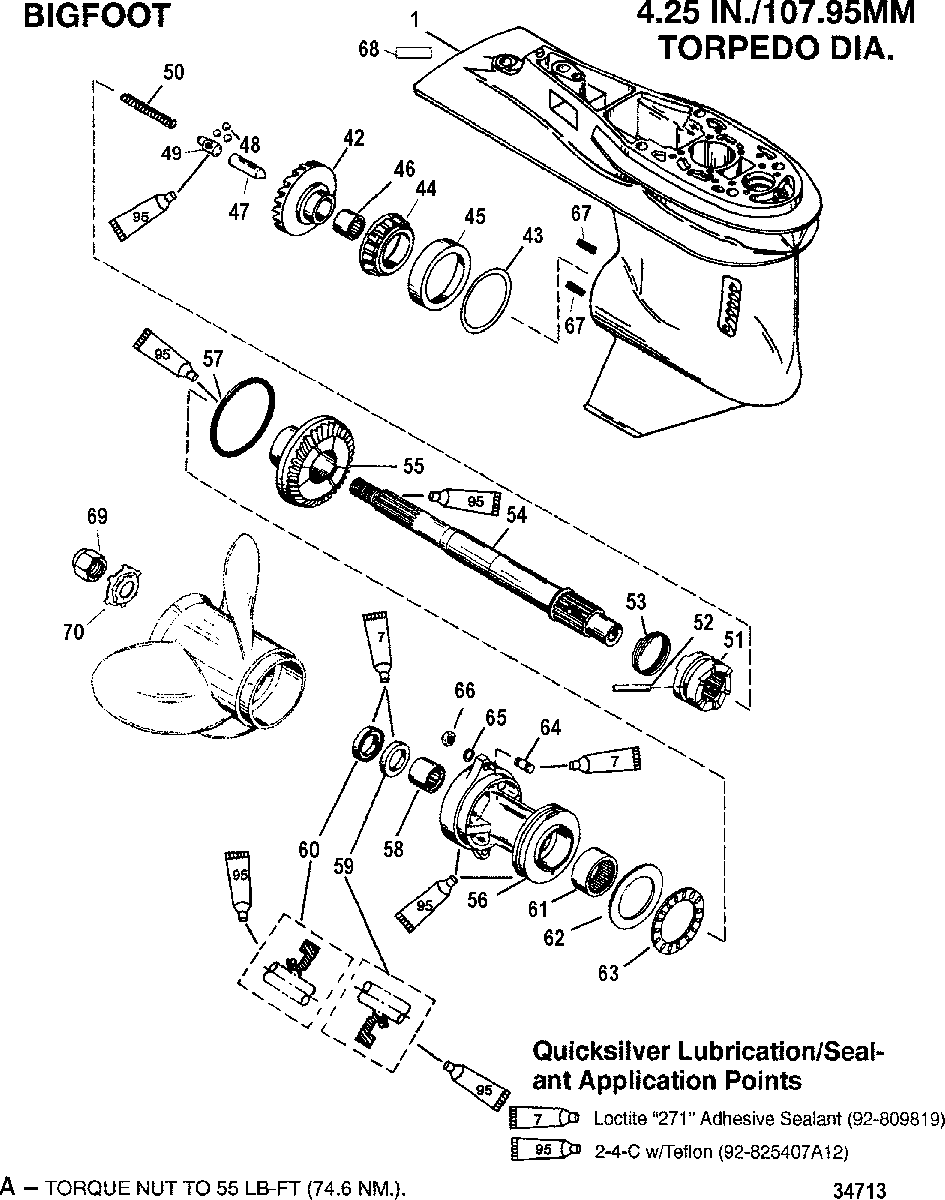

Gearhousing, Propeller Shaft - 2.31:1 Gear Ratio-Bigfoot для Mariner - 50 BIGFOOT (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
-1667-9011G86 GEAR HOUSING ASSEMBLY, Complete
BlackGEAR HOUSING ASSEMBLY, Complete
Black -
-1667-9011G86 GEAR HOUSING ASSEMBLY, Complete
GrayGEAR HOUSING ASSEMBLY, Complete
Gray -
11667-9011G59 GEAR HOUSING ASSEMBLY, Basic
BlackGEAR HOUSING ASSEMBLY, Basic
Black -
11667-9011G59 GEAR HOUSING ASSEMBLY, Basic
GrayGEAR HOUSING ASSEMBLY, Basic
Gray -
4243-859472A3 GEAR KIT, Forward, 30 TeethGEAR KIT, Forward, 30 Teeth
-
4315-8M0063266 SHIM SETSHIM SET
-
4431-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
45NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
4631-30895T BEARING, NeedleBEARING, Needle
-
47850315A1 FOLLOWER KIT, CamFOLLOWER KIT, Cam
-
4830-44530 BALLBALL
-
49NSS NOT SOLD SEPARATE, SlideNOT SOLD SEPARATE, Slide
-
5024-850327 SPRINGSPRING
-
5152-850048T CLUTCHCLUTCH
-
5217-8M0100263 PIN, CrossPIN, Cross
-
5324-30893 SPRINGSPRING
-
5444-8M0140445 PROPELLER SHAFTPROPELLER SHAFT
-
5543-850034T GEAR, Reverse (30 Teeth)GEAR, Reverse (30 Teeth)
-
5612596T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5725-861844 O-RING, (3.609 x .139)O-RING, (3.609 x .139)
-
5831-30956T BEARING, NeedleBEARING, Needle
-
5926-70080 SEAL, Oil, InnerSEAL, Oil, Inner
-
6026-70081 SEAL, Oil, OuterSEAL, Oil, Outer
-
6131-12578T BEARING, NeedleBEARING, Needle
-
6212-12577 THRUST WASHERTHRUST WASHER
-
6331-12576 BEARING, ThrustBEARING, Thrust
-
6416-8M0034456 STUD, (M8 x 48)STUD, (M8 x 48)
-
6512-855941 WASHER, (.323 x .590 x .112) Stainless SteelWASHER, (.323 x .590 x .112) Stainless Steel
-
6611-401378 NUT, (M8)NUT, (M8)
-
67NSS NOT SOLD SEPARATE, Insert-ThreadedNOT SOLD SEPARATE, Insert-Threaded
-
68NSS NOT SOLD SEPARATE, Decal-Gear RatioNOT SOLD SEPARATE, Decal-Gear Ratio
-
6911-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
-
7014-816629Q TAB WASHERTAB WASHER
-
-26-43035A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
