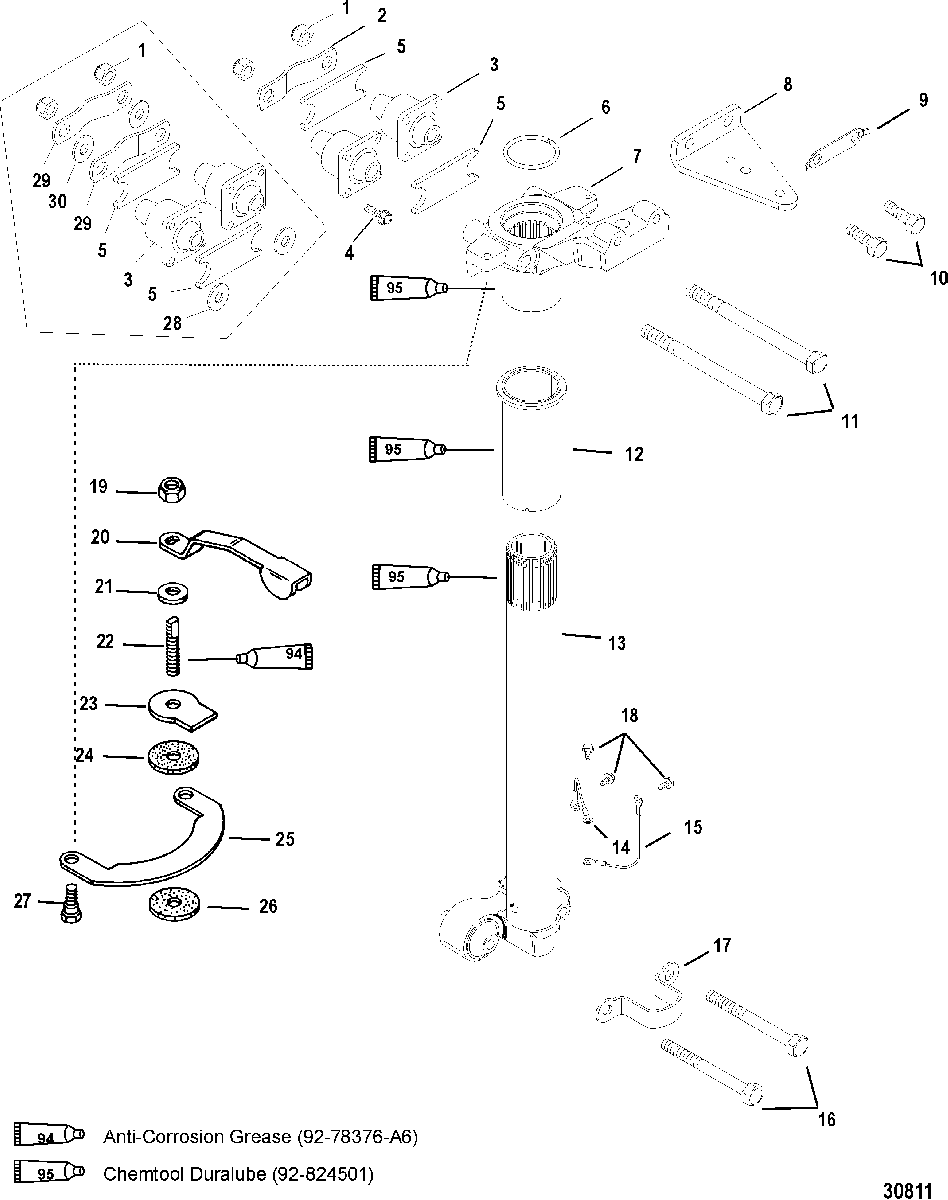

STEERING ARM для Mariner - 50 (4-STROKE)(4 CYL.) 0T178500 THRU 0T598999

  • №
    Артикул
    Название
  • 1
    11-896963 NUT, (M12)
    NUT, (M12)
  • 2
    893773002 STRAP
    (DESIGN III)(THICK STRAP)
    STRAP
    (DESIGN III)(THICK STRAP)
  • 3
    893655T MOUNT
    MOUNT
  • 4
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 5
    826658 BUMPER
    BUMPER
  • 6
    53-89531 RING, Retaining
    RING, Retaining
  • 7
    8M0118183 ARM, Steering
    ARM, Steering
  • 8
    816667F1 BRACKET
    (NON-HANDLE)
    BRACKET
    (NON-HANDLE)
  • 9
    14-8M0009820 TAB WASHER
    (NON-HANDLE)
    TAB WASHER
    (NON-HANDLE)
  • 10
    10-4000377 SCREW, (M10 x 30)
    (NON-HANDLE)
    SCREW, (M10 x 30)
    (NON-HANDLE)
  • 11
    10-898835001 BOLT, (M12 x 154)
    BOLT, (M12 x 154)
  • 12
    23-8279971 SPACER
    SPACER
  • 13
    893590T04 SWIVEL TUBE
    SWIVEL TUBE
  • 14
    84-88238T01 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 15
    88238A13 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 16
    10-823567105 SCREW, (M10 x 105) Hex Flange - Stainless Steel
    SCREW, (M10 x 105) Hex Flange - Stainless Steel
  • 17
    893703 BRACKET
    BRACKET
  • 18
    10-878607 SCREW, (#10-16 x .375)
    (SELF-TAPPING)
    SCREW, (#10-16 x .375)
    (SELF-TAPPING)
  • 19
    11-8M0042636 NUT, (.375-24) Stainless Steel
    (HANDLE)
    NUT, (.375-24) Stainless Steel
    (HANDLE)
  • 20
    823792 LEVER
    (HANDLE)
    LEVER
    (HANDLE)
  • 21
    12-29330 WASHER
    (HANDLE)
    WASHER
    (HANDLE)
  • 22
    821961 ROD (THREADED)
    (HANDLE)
    ROD (THREADED)
    (HANDLE)
  • 23
    821957 BRAKE PLATE
    (HANDLE)
    BRAKE PLATE
    (HANDLE)
  • 24
    8165621 DISC
    (HANDLE)
    DISC
    (HANDLE)
  • 25
    8M0007471 PLATE
    (HANDLE)
    PLATE
    (HANDLE)
  • 26
    8165621 DISC
    (HANDLE)
    DISC
    (HANDLE)
  • 27
    10-768042 SHOULDER SCREW, Hex
    (HANDLE)
    SHOULDER SCREW, Hex
    (HANDLE)
  • 28
    12-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
    (DESIGN I)
    WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
    (DESIGN I)
  • 29
    893773002 STRAP
    (Qty. of 1 used on DESIGN I)
    STRAP
    (Qty. of 1 used on DESIGN I)
  • 30
    12-20959 WASHER
    (DESIGN II)
    WASHER
    (DESIGN II)
