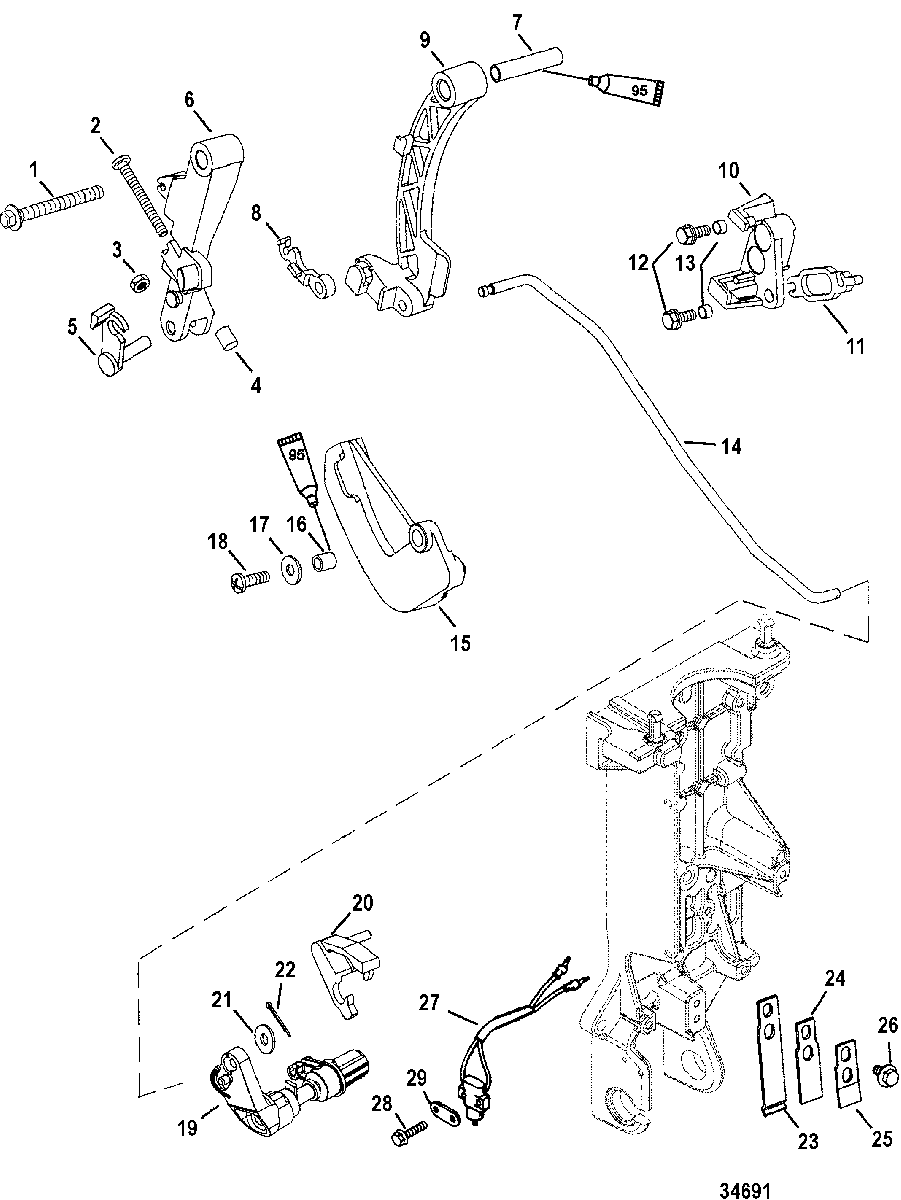

Linkage, Non-Bigfoot для Mariner - 50 (4-STROKE) 0P017000 THRU 0P094499

  • №
    Артикул
    Название
  • 1
    10-40011158 SCREW, (M8 x 70) Stainless Steel
    SCREW, (M8 x 70) Stainless Steel
  • 2
    10-814776 SCREW, Adjusting (M6 x 55)
    SCREW, Adjusting (M6 x 55)
  • 3
    11-401196 NUT, (M6)
    NUT, (M6)
  • 4
    42942 CAP
    CAP
  • 5
    826587 RETAINER
    RETAINER
  • 6
    822682A4 LEVER, Throttle
    LEVER, Throttle
  • 7
    23-825078 BUSHING
    BUSHING
  • 8
    822459 RETAINER
    Non-Handle
    RETAINER
    Non-Handle
  • 9
    8259571 LEVER, Shift
    Non-Handle
    LEVER, Shift
    Non-Handle
  • 10
    827706A4 BRACKET
    Non-Handle
    BRACKET
    Non-Handle
  • 11
    98889 LATCH
    Non-Handle
    LATCH
    Non-Handle
  • 12
    10-8248324 SCREW, (M6 x 16)
    Non-Handle
    SCREW, (M6 x 16)
    Non-Handle
  • 13
    23-15885 SLEEVE
    Non-Handle
    SLEEVE
    Non-Handle
  • 14
    882820 SHIFT ROD
    Non-Handle
    SHIFT ROD
    Non-Handle
  • 15
    8262311 CAM
    CAM
  • 15
    8262312 CAM, Throttle
    40 Italian
    CAM, Throttle
    40 Italian
  • 16
    23-309772 SPACER
    SPACER
  • 17
    12-4002314 WASHER
    WASHER
  • 18
    10-40056107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 19
    826588A4 SHIFT SHAFT ASSEMBLY, Horizontal
    SHIFT SHAFT ASSEMBLY, Horizontal
  • 20
    8277071 RETAINER
    RETAINER
  • 21
    12-4002316 WASHER
    WASHER
  • 22
    18-210711 COTTER PIN
    COTTER PIN
  • 23
    24-826077 SPRING, Detent
    SPRING, Detent
  • 24
    24-824993 SPRING, Backing
    SPRING, Backing
  • 25
    824994 SPRING, Plate
    SPRING, Plate
  • 26
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 27
    87-8M0052927 SWITCH
    Handle Models
    SWITCH
    Handle Models
  • 28
    10-88075020 SCREW, (M3.5 x 20) Stainless Steel
    Handle Models
    SCREW, (M3.5 x 20) Stainless Steel
    Handle Models
  • 29
    824923 PLATE
    Handle Models
    PLATE
    Handle Models
