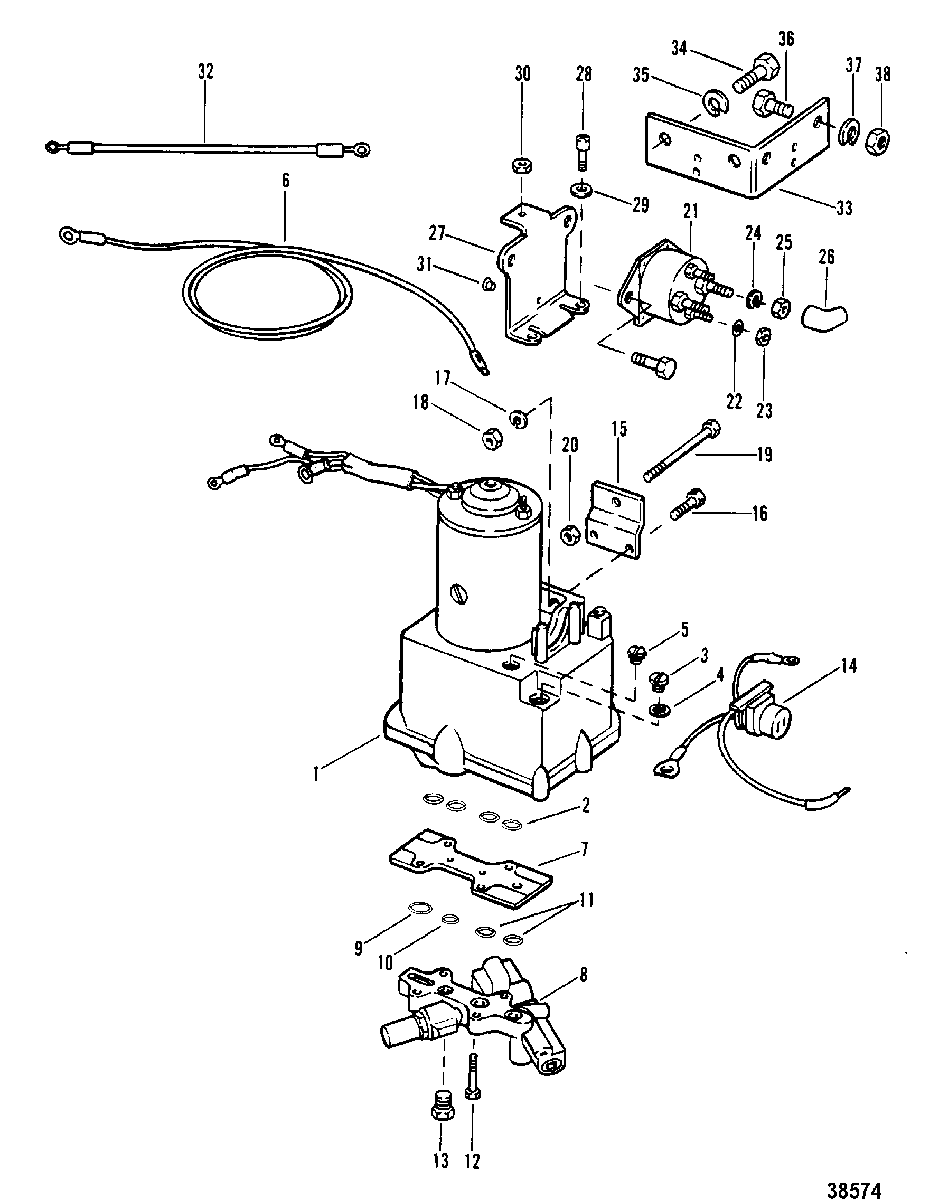

POWER TRIM COMPONENTS(WITHOUT CIRCUIT BREAKER AND FUSE) для Mariner - 50 (4 CYL.) 8063985 & Up

  • №
    Артикул
    Название
  • 1
    92975A32 PUMP ASSEMBLY, Hydraulic (METAL RESERVOIR)
    PUMP ASSEMBLY, Hydraulic (METAL RESERVOIR)
  • 1
    92975A32 PUMP ASSEMBLY, Hydraulic (PLASTIC RESERVOIR)
    PUMP ASSEMBLY, Hydraulic (PLASTIC RESERVOIR)
  • 2
    25-48171 O-RING, (.364. x .070), MANIFOLD PLATE
    O-RING, (.364. x .070), MANIFOLD PLATE
  • 3
    10-79953Q04 SCREW, (.375-16 x .250), FILLER - HYDRUALIC PUMP
    SCREW, (.375-16 x .250), FILLER - HYDRUALIC PUMP
  • 4
    12-191833 WASHER
    WASHER
  • 5
    10-62269 SCREW, (#10-32 x .437), VENT - HYDRAULIC PUMP
    SCREW, (#10-32 x .437), VENT - HYDRAULIC PUMP
  • 6
    32979 LEAD, Battery (POSITIVE)
    LEAD, Battery (POSITIVE)
  • 6
    32988 LEAD, Battery (NEGATIVE)
    LEAD, Battery (NEGATIVE)
  • 7
    45336 PLATE, MANIFOLD
    PLATE, MANIFOLD
  • 8
    45197A2 VALVE ASSEMBLY, Control
    VALVE ASSEMBLY, Control
  • --
    25-48171 O-RING, (.364. x .070) (SEE REF. #2)
    O-RING, (.364. x .070) (SEE REF. #2)
  • 9
    25-45254 O-RING, CONTROL VALVE (3/4" O.D.)
    O-RING, CONTROL VALVE (3/4" O.D.)
  • 10
    25-48171 O-RING, (.364. x .070), CONTROL VALVE (1/2" O.D.)
    O-RING, (.364. x .070), CONTROL VALVE (1/2" O.D.)
  • 11
    25-45253 O-RING, CONTROL VALVE (5/8" O.D.)
    O-RING, CONTROL VALVE (5/8" O.D.)
  • 12
    10-56500 SCREW, (.250-28 x 1.250)
    SCREW, (.250-28 x 1.250)
  • 13
    22-46008 PLUG, CONTROL VALVE (1/2-20")
    PLUG, CONTROL VALVE (1/2-20")
  • 14
    84-74023A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 15
    45377T BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 16
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 17
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 18
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 19
    10-68298 BOLT, (.375-16 x 3.250), HYDRUALIC PUMP TO BOAT
    BOLT, (.375-16 x 3.250), HYDRUALIC PUMP TO BOAT
  • 20
    11-82671112 NUT
    NUT
  • 21
    89-853654A1 SOLENOID, Starter
    SOLENOID, Starter
  • 22
    13-26996 LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
  • 23
    11-68219 NUT, (#10-32) Stainless Steel, SOLENOID TERMINAL
    NUT, (#10-32) Stainless Steel, SOLENOID TERMINAL
  • 24
    13-26993 LOCKWASHER, (.312), SOLENOID TERMINAL
    LOCKWASHER, (.312), SOLENOID TERMINAL
  • 25
    11-68292 NUT, (.312-18), SOLENOID TERMINAL
    NUT, (.312-18), SOLENOID TERMINAL
  • 26
    46265 BOOT, RUBBER - STARTER SOLENOID TERMINAL
    BOOT, RUBBER - STARTER SOLENOID TERMINAL
  • 27
    74407T BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 28
    10-21140 SCREW, (.250-28 x .50)
    SCREW, (.250-28 x .50)
  • 29
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 30
    11-24656 NUT
    NUT
  • 31
    269011 BUMPER, RUBBER - SOLENOID BRACKET
    BUMPER, RUBBER - SOLENOID BRACKET
  • 32
    84-79139A2 WIRE ASSEMBLY, Jumper (POSITIVE)
    WIRE ASSEMBLY, Jumper (POSITIVE)
  • 32
    55992 WIRE, Jumper (NEGATIVE)
    WIRE, Jumper (NEGATIVE)
  • 33
    74406 BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 34
    10-69028 SCREW, (.250-28 x .750) Stainless Steel
    SCREW, (.250-28 x .750) Stainless Steel
  • 35
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 36
    10-32417 SCREW, (.250-28 x .625)
    SCREW, (.250-28 x .625)
  • 37
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 38
    11-21825 NUT, (.250-28)
    NUT, (.250-28)
