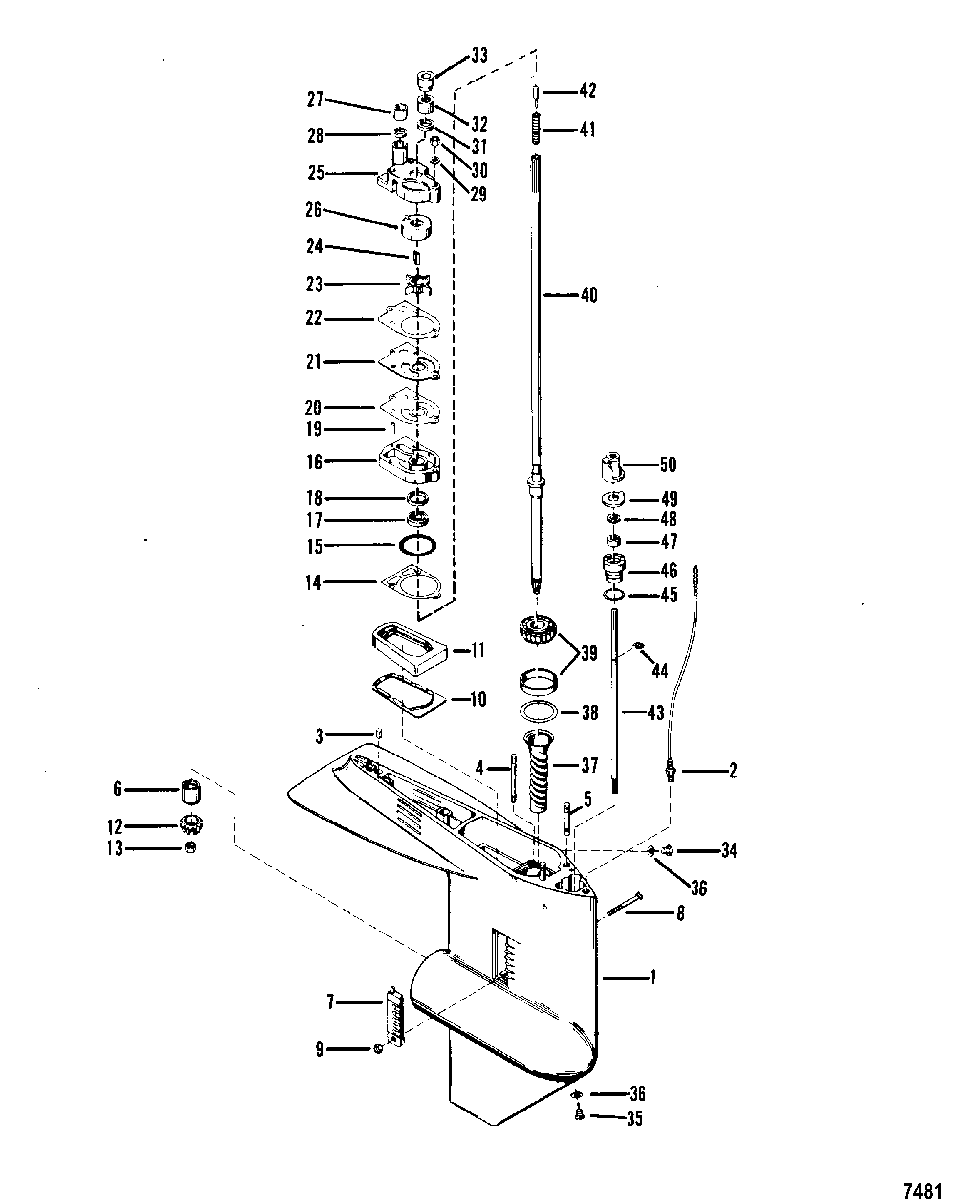

Gear Housing(Driveshaft) для Mariner - 50 (3 CYL.) 9469200 THRU 9683054

  • №
    Артикул
    Название
  • -
    1643-9539A2 GEAR HOUSING ASSEMBLY (SHORT SHAFT) (BLACK)
    GEAR HOUSING ASSEMBLY (SHORT SHAFT) (BLACK)
  • -
    1643-9539A3 GEAR HOUSING ASSEMBLY (LONG SHAFT) (BLACK)
    GEAR HOUSING ASSEMBLY (LONG SHAFT) (BLACK)
  • -
    1643-9539A9 GEAR HOUSING ASSEMBLY (LONG SHAFT) (GRAY)
    GEAR HOUSING ASSEMBLY (LONG SHAFT) (GRAY)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY (BLACK-BASIC)
    GEAR HOUSING ASSEMBLY (BLACK-BASIC)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY (GRAY-BASIC)
    GEAR HOUSING ASSEMBLY (GRAY-BASIC)
  • 2
    22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER
    CONNECTOR ASSEMBLY, SPEEDOMETER
  • 3
    17-8M0084726 PIN, Dowel (.187 x .530), GEAR HOUSING
    PIN, Dowel (.187 x .530), GEAR HOUSING
  • 4
    16-33778 STUD, WATER PUMP (2-5/8")
    STUD, WATER PUMP (2-5/8")
  • 5
    16-8M0034453 STUD, (.437-14/.437-20 x 2.190), GEAR HOUSING
    STUD, (.437-14/.437-20 x 2.190), GEAR HOUSING
  • 6
    31-62091T BEARING, Roller, DRIVESHAFT
    BEARING, Roller, DRIVESHAFT
  • 7
    72849A1 SCREEN ASSEMBLY, WATER INTAKE-STARBOARD AND PORT
    SCREEN ASSEMBLY, WATER INTAKE-STARBOARD AND PORT
  • 8
    10-36070 SCREW, (#10-32 x 1.250), WATER INTAKE SCREEN
    SCREW, (#10-32 x 1.250), WATER INTAKE SCREEN
  • 9
    11-859124 NUT, (#10-32) Stainless Steel, WATER INTAKE SCREEN SCREW
    NUT, (#10-32) Stainless Steel, WATER INTAKE SCREEN SCREW
  • 10
    92815 PLATE, SUPPORT-EXHAUST TUBE
    PLATE, SUPPORT-EXHAUST TUBE
  • 11
    37721001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 12
    43-88019T GEAR, Pinion
    GEAR, Pinion
  • 13
    11-55910 NUT, (.437-20), PINION GEAR TO DRIVESHAFT
    NUT, (.437-20), PINION GEAR TO DRIVESHAFT
  • 14
    27-19552 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 15
    25-26722 O-RING, WATER PUMP BASE
    O-RING, WATER PUMP BASE
  • 16
    46-77177A1 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 17
    26-79831 SEAL, Oil, WATER PUMP BASE
    SEAL, Oil, WATER PUMP BASE
  • 18
    26-90562 SEAL, (1.254 x .312), WATER PUMP BASE
    SEAL, (1.254 x .312), WATER PUMP BASE
  • 19
    17-8M0084627 PIN, Dowel, WATER PUMP BASE
    PIN, Dowel, WATER PUMP BASE
  • 20
    27-19553 GASKET, LOWER-WATER PUMP
    GASKET, LOWER-WATER PUMP
  • 21
    32768 FACE PLATE, WATER PUMP
    FACE PLATE, WATER PUMP
  • 22
    27-19551 GASKET, UPPER-WATER PUMP
    GASKET, UPPER-WATER PUMP
  • 23
    47-89983T IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 24
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 25
    46-77822A1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 26
    48753 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 27
    26-38452 SEAL, RUBBER-WATER PUMP
    SEAL, RUBBER-WATER PUMP
  • 28
    12-38453 WASHER, NYLON-WATER PUMP
    WASHER, NYLON-WATER PUMP
  • 29
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUDS
    WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUDS
  • 30
    11-8267119 NUT, (.250-28), WATER PUMP STUDS
    NUT, (.250-28), WATER PUMP STUDS
  • 31
    25-20273 O-RING, RUBBER (DRIVE SHAFT)
    O-RING, RUBBER (DRIVE SHAFT)
  • 32
    78654A1 SEAT ASSEMBLY
    SEAT ASSEMBLY
  • 33
    86304 SEAL, SPLINED
    SEAL, SPLINED
  • 34
    10-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER
    SCREW, (.375-16 x .250), GREASE FILLER
  • 35
    22-8M0058389 SCREW, Magnetic, DRAIN
    SCREW, Magnetic, DRAIN
  • 36
    12-191833 WASHER, Fiber, GREASE FILLER AND DRAIN SCREW
    WASHER, Fiber, GREASE FILLER AND DRAIN SCREW
  • 37
    88181 SLEEVE, LUBRICATION
    SLEEVE, LUBRICATION
  • 38
    15-92881A1 SHIM SET, ROLLER BEARING (.002-3-5-10-20)
    SHIM SET, ROLLER BEARING (.002-3-5-10-20)
  • 39
    31-77420A1 BEARING ASSEMBLY, Roller, TAPERED
    BEARING ASSEMBLY, Roller, TAPERED
  • 40
    45-98179 DRIVESHAFT ASSEMLBY (SHORT SHAFT)
    DRIVESHAFT ASSEMLBY (SHORT SHAFT)
  • 40
    45-98180 DRIVESHAFT ASSEMBLY ( LONG SHAFT)
    DRIVESHAFT ASSEMBLY ( LONG SHAFT)
  • 41
    24-20254 SPRING, COMPRESSION-DRIVESHAFT
    SPRING, COMPRESSION-DRIVESHAFT
  • 42
    17-30545 PIN, DRIVESHAFT
    PIN, DRIVESHAFT
  • 43
    76063A1 SHAFT ASSEMBLY, SHIFT-LOWER
    SHAFT ASSEMBLY, SHIFT-LOWER
  • 44
    53-29641 E RING, RETAINING-SHIFT SHAFT
    E RING, RETAINING-SHIFT SHAFT
  • 45
    25-25439 O-RING, (.862 x .103), SHIFT SHAFT BUSHING
    O-RING, (.862 x .103), SHIFT SHAFT BUSHING
  • 46
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 47
    26-8164641 SEAL, Oil, SHIFT SHAFT BUSHING
    SEAL, Oil, SHIFT SHAFT BUSHING
  • 48
    12-77674 WASHER, RUBBER-SHAFT BUSHING
    WASHER, RUBBER-SHAFT BUSHING
  • 49
    78036 BASE, REVERSE LOCKING
    BASE, REVERSE LOCKING
  • 50
    43308T1 CAM, REVERSE LOCKING
    CAM, REVERSE LOCKING
  • -
    46-77177A3 WATER PUMP KIT
    WATER PUMP KIT
  • -
    26-79831A1 SEAL KIT
    SEAL KIT
  • -
    27-43779A87 GASKET SET
    GASKET SET
  • -
    933361 GUIDE
    (For Assembly Aid of Shift Shaft) SN# 0C160936 & Up
    GUIDE
    (For Assembly Aid of Shift Shaft) SN# 0C160936 & Up
