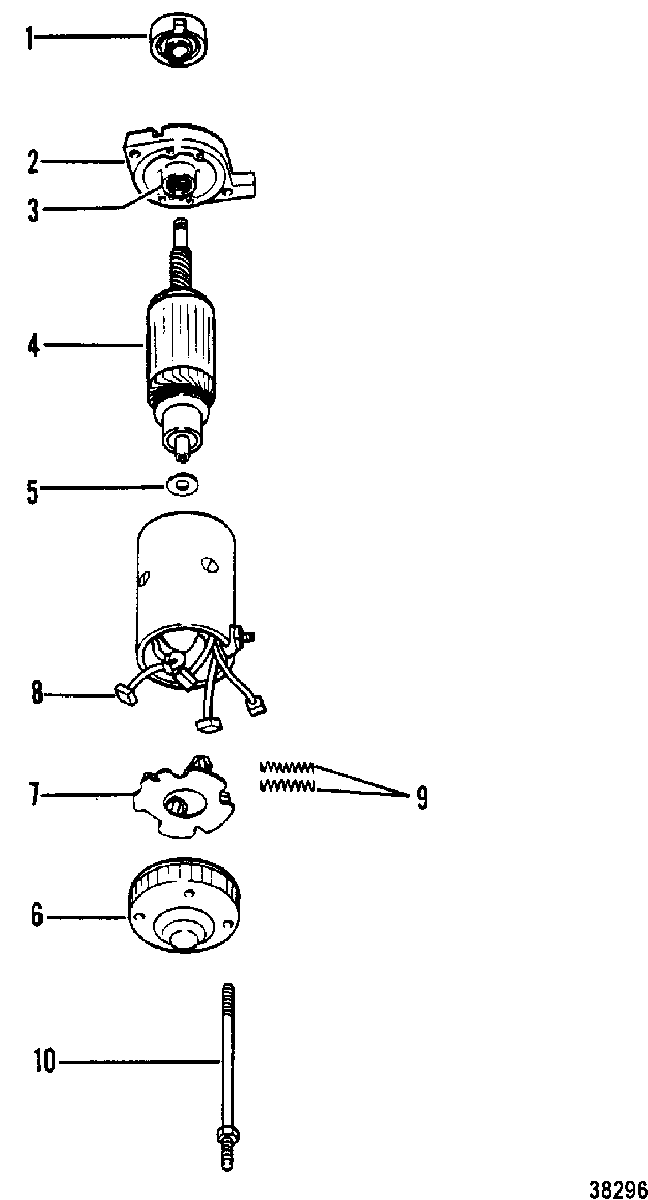

STARTER MOTOR ASSEMBLY(PRESTOLITE) для Mariner - 50 (3 CYL.) 6428681 THRU 0B122929
-
№АртикулНазвание
-
1392-8848 MOTOR DRIVEMOTOR DRIVE
-
2392-8852 PLATE ASSEMBLY, DRIVE ENDPLATE ASSEMBLY, DRIVE END
-
3392-8853 BUSHING, DRIVE END PLATEBUSHING, DRIVE END PLATE
-
4392-8847 ARMATUREARMATURE
-
5392-8856 PACKAGE, ARMATURE THRUST WASHERPACKAGE, ARMATURE THRUST WASHER
-
6392-8849 END CAP ASSEMBLY, COMMUTATOREND CAP ASSEMBLY, COMMUTATOR
-
7392-8850 PLATE/HOLDER ASSEMBLY, BrushPLATE/HOLDER ASSEMBLY, Brush
-
8392-8851 BRUSH AND TERMINAL SETBRUSH AND TERMINAL SET
-
9392-8854 SPRING SET, BRUSH (2 SPRINGS PER SET)SPRING SET, BRUSH (2 SPRINGS PER SET)
-
10392-8855 BOLT, THRU - END CAP TO END PLATE (1/4-28)BOLT, THRU - END CAP TO END PLATE (1/4-28)
