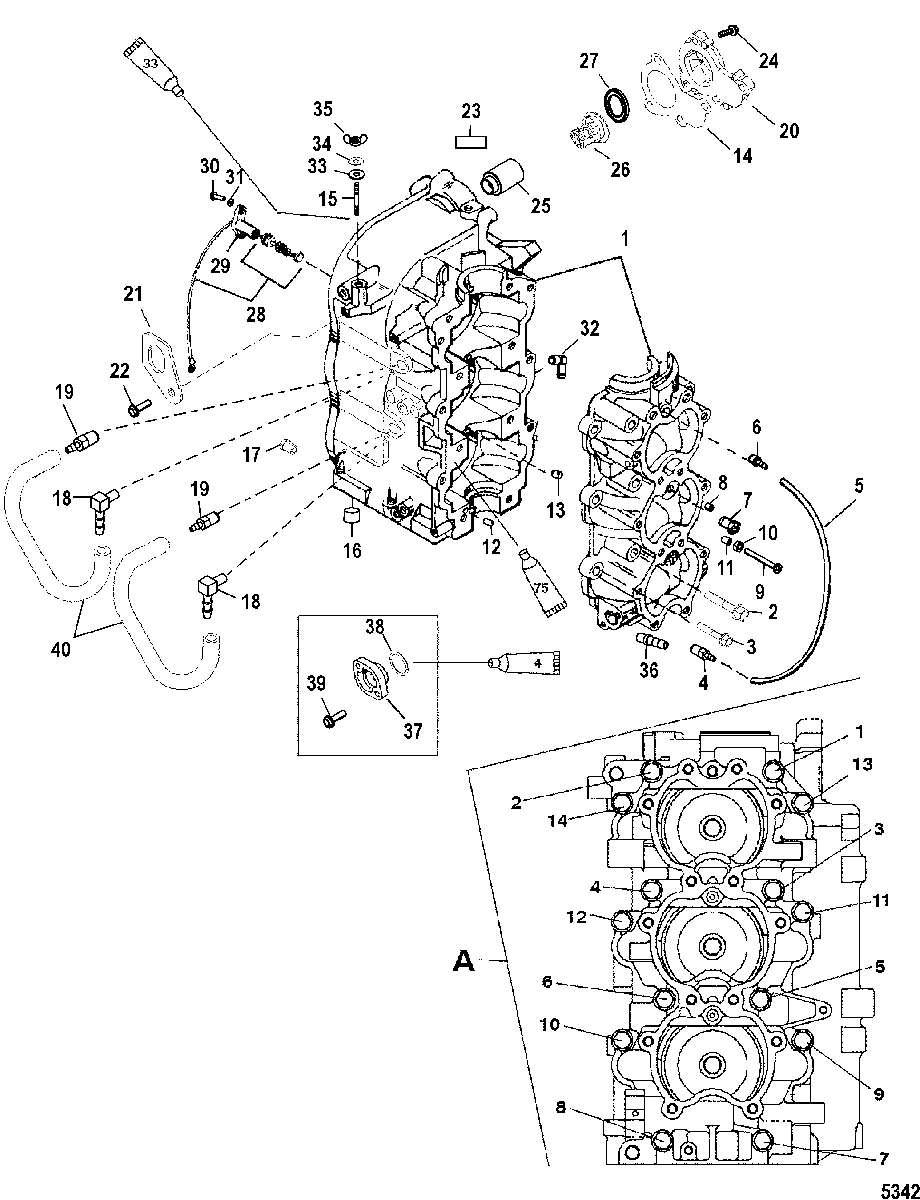

Cylinder Block and Crankcase для Mariner - 50 (3 CYL.) 1B000001 & Up

  • №
    Артикул
    Название
  • 1
    2801-827953T7 CYLINDER BLOCK
    (A = Torque Sequence)
    CYLINDER BLOCK
    (A = Torque Sequence)
  • 2
    10-81742780 SCREW, (M8 x 80)
    SCREW, (M8 x 80)
  • 3
    10-81742730 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 4
    21-426585 CHECK VALVE
    CHECK VALVE
  • 5
    32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 15.00 Inch Length)
    TUBING, (240.00 Inches Bulk) (Cut to 15.00 Inch Length)
  • 6
    21-426232 CHECK VALVE, Press-In
    CHECK VALVE, Press-In
  • 7
    812888A2 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 8
    21-42657A4 CHECK VALVE
    CHECK VALVE
  • 9
    10-814776 SCREW, Adjusting (M6 x 55)
    SCREW, Adjusting (M6 x 55)
  • 10
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 11
    42942 CAP
    CAP
  • 12
    17-43044 PIN, Dowel - Without Hole (.375 x .625), Locating
    PIN, Dowel - Without Hole (.375 x .625), Locating
  • 13
    17-8M0084653 PIN, Bearing Race
    PIN, Bearing Race
  • 14
    27-827284 GASKET
    GASKET
  • 15
    16-8161949 STUD, (M6 x 44)
    STUD, (M6 x 44)
  • 16
    22-185981 PLUG, Pipe (.375-18)
    PLUG, Pipe (.375-18)
  • 17
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 18
    22-19725 ELBOW
    ELBOW
  • 19
    21-426585 CHECK VALVE
    CHECK VALVE
  • 20
    827251A1 COVER
    COVER
  • 21
    850897 LIFTING EYE
    (Manual)
    LIFTING EYE
    (Manual)
  • 22
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    (Manual)
    SCREW, (M8 x 25) Stainless Steel
    (Manual)
  • 23
    NSS NOT SOLD SEPARATE, Decal-Serialization
    NOT SOLD SEPARATE, Decal-Serialization
  • 24
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    SCREW, (M8 x 25) Stainless Steel
  • 25
    889735 CARRIER
    CARRIER
  • 26
    850055001 THERMOSTAT, 43A°C (110A°F)
    THERMOSTAT, 43A°C (110A°F)
  • 27
    26-854639001 SEAL
    SEAL
  • 28
    787992 SENDER, Temperature
    SENDER, Temperature
  • 29
    889733 RETAINER
    RETAINER
  • 30
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 31
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 32
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 33
    12-49221 WASHER, (.187 x .500 x .062) Neoprene
    (Electric)
    WASHER, (.187 x .500 x .062) Neoprene
    (Electric)
  • 34
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    (Electric)
    WASHER, (.255 x .620 x .030) Stainless Steel
    (Electric)
  • 35
    11-816872 WING NUT
    (Electric)
    WING NUT
    (Electric)
  • 36
    22-56759 FITTING, Barbed
    (Electric)
    FITTING, Barbed
    (Electric)
  • 37
    8129962 COVER
    (Manual)
    COVER
    (Manual)
  • 38
    25-48462 O-RING, (.614 x .070)
    (Manual)
    O-RING, (.614 x .070)
    (Manual)
  • 39
    10-40011108 SCREW, (M5 x 20) Stainless Steel
    (Manual)
    SCREW, (M5 x 20) Stainless Steel
    (Manual)
  • 40
    32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 5.50 Inch Length)
    TUBING, (240.00 Inches Bulk) (Cut to 5.50 Inch Length)
  • -
    852067T98 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    27-828553A97 GASKET SET
    GASKET SET
