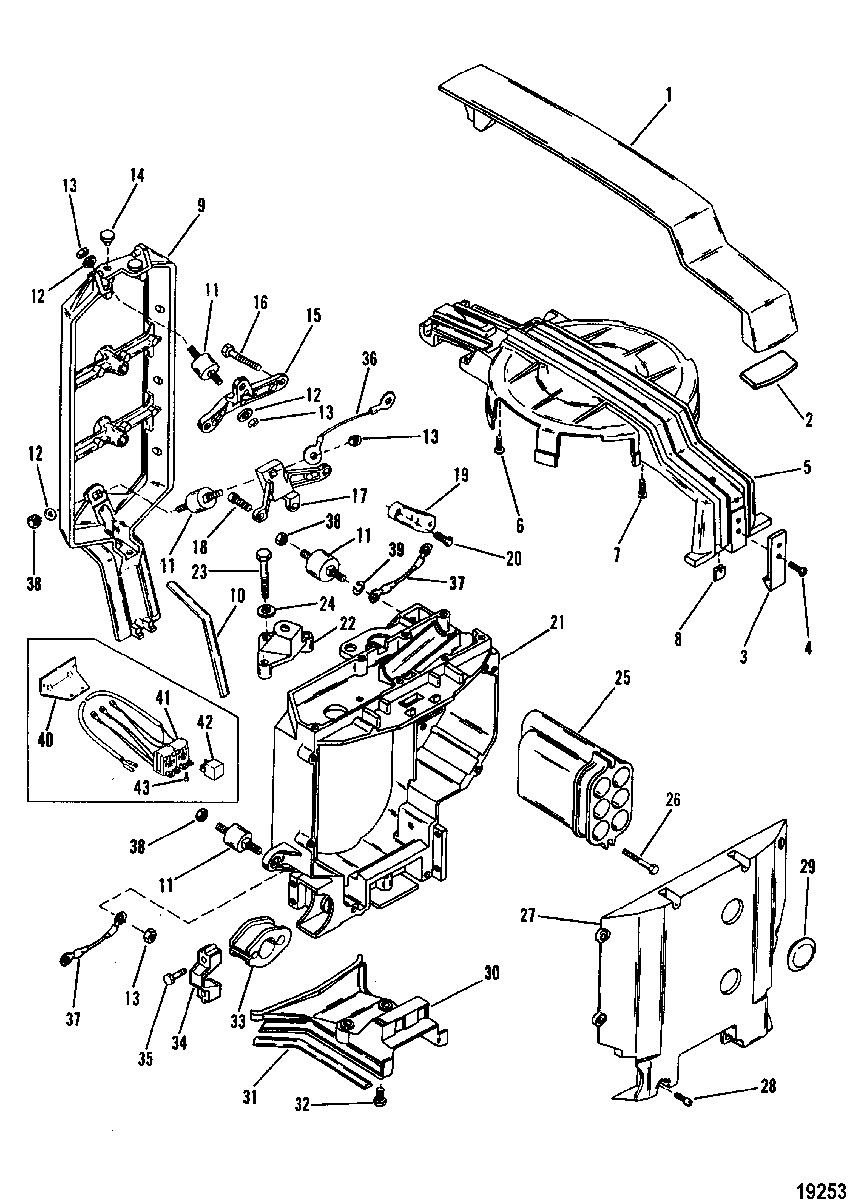

Cowl Support Brackets для Mariner - 50 (3 CYL.) 0B122930 THRU 0D000749

  • №
    Артикул
    Название
  • 1
    73641A1 BRACKET, TOP (BLACK)
    BRACKET, TOP (BLACK)
  • 1
    73641A2 BRACKET, TOP (GRAY)
    BRACKET, TOP (GRAY)
  • 2
    62444 SEAL, RUBBER-TOP BRACKET/MOUNTING PLATE
    SEAL, RUBBER-TOP BRACKET/MOUNTING PLATE
  • 3
    79652 CLIP, SUPPORT BRACKET
    CLIP, SUPPORT BRACKET
  • 4
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, CLIP TO SUPPORT
    SCREW, (#10-16 x .625) Stainless Steel, CLIP TO SUPPORT
  • 5
    79490 SHIELD, FLYWHEEL
    SHIELD, FLYWHEEL
  • 6
    10-37656 SCREW, (#10-32 x .620), SHIELD TO SUPPORT BRACKET
    SCREW, (#10-32 x .620), SHIELD TO SUPPORT BRACKET
  • 7
    10-48408 SCREW, (#10-16 x .500), SHIELD TO SUPPORT BRACKET
    SCREW, (#10-16 x .500), SHIELD TO SUPPORT BRACKET
  • 8
    91891 WEAR PLATE, SOUND ATENUATOR
    WEAR PLATE, SOUND ATENUATOR
  • 9
    74510A2 BRACKET, COWL SUPPORT-REAR
    BRACKET, COWL SUPPORT-REAR
  • 10
    698761 SEAL, REAR BRACKET AND TOP BRACKET
    SEAL, REAR BRACKET AND TOP BRACKET
  • 11
    90435 MOUNT, RUBBER
    MOUNT, RUBBER
  • 12
    12-69057 WASHER, RUBBER MOUNT
    WASHER, RUBBER MOUNT
  • 13
    11-20184 NUT, (1/4-28X7/32), RUBBER MOUNT
    NUT, (1/4-28X7/32), RUBBER MOUNT
  • 14
    269011 BUMPER, RUBBER-REAR SUPPORT BRACKET
    BUMPER, RUBBER-REAR SUPPORT BRACKET
  • 15
    60116 BRACE, COWL SUPPORT BRACKET (TOP)
    BRACE, COWL SUPPORT BRACKET (TOP)
  • 16
    10-76596 SCREW, (.250-20 x 1.250), SUPPORT BRACKET
    SCREW, (.250-20 x 1.250), SUPPORT BRACKET
  • 17
    87764 BRACKET, REAR LOWER MOUNT
    BRACKET, REAR LOWER MOUNT
  • 18
    10-76596 SCREW, (.250-20 x 1.250), REAR BRACKET ATTACHING
    SCREW, (.250-20 x 1.250), REAR BRACKET ATTACHING
  • 19
    71097 BRACKET, RUBBER MOUNT
    BRACKET, RUBBER MOUNT
  • 20
    10-824941 SCREW, (.312-18 x .750), BRACKET TO CRANKCASE (3/4")
    SCREW, (.312-18 x .750), BRACKET TO CRANKCASE (3/4")
  • 21
    973482 ATTENUATOR, SOUND
    ATTENUATOR, SOUND
  • 22
    88684 COVER, MANUAL CHOKE
    COVER, MANUAL CHOKE
  • 23
    10-32293 SCREW, (.312-24 x 1.75), COVER TO TOP COVER
    SCREW, (.312-24 x 1.75), COVER TO TOP COVER
  • 24
    12-814806 WASHER, COVER SCREW
    WASHER, COVER SCREW
  • 25
    73986 MANIFOLD, Air
    MANIFOLD, Air
  • 26
    10-69093 SCREW, (.250-20 x 1.50), AIR MANIFOLD
    SCREW, (.250-20 x 1.50), AIR MANIFOLD
  • 27
    14915T COVER, SOUND ATTENUATOR (FRONT)
    COVER, SOUND ATTENUATOR (FRONT)
  • 28
    10-37655 SCREW, (#10-32 x .500), FRONT COVER
    SCREW, (#10-32 x .500), FRONT COVER
  • 29
    19-73336 PLUG, FRONT COVER
    PLUG, FRONT COVER
  • 30
    41128A1 PLATE ASSEMBLY
    PLATE ASSEMBLY
  • 31
    698761 SEAL, PLATE
    SEAL, PLATE
  • 32
    10-20540 SCREW, COVER PLATE TO SUPPORT BRACKET
    SCREW, COVER PLATE TO SUPPORT BRACKET
  • 33
    25-14169 GROMMET, ELECTRICAL CABLES
    GROMMET, ELECTRICAL CABLES
  • 34
    14160 CAP, RETAINING
    CAP, RETAINING
  • 35
    10-14168 SCREW, (.250-20 x 1.00), CAP
    SCREW, (.250-20 x 1.00), CAP
  • 36
    88238A3 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 37
    84-65999A2 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 38
    11-36069 NUT
    NUT
  • 39
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 40
    19686 BRACKET
    SN# 0C160936 & Up
    BRACKET
    SN# 0C160936 & Up
  • 41
    84-19758A3 HARNESS ASSEMBLY
    SN# 0C160936 & Up
    HARNESS ASSEMBLY
    SN# 0C160936 & Up
  • 42
    87-18211 RELAY SWITCH
    SN# 0C160936 & Up
    RELAY SWITCH
    SN# 0C160936 & Up
  • 43
    10-20401 SCREW, (.190-24 x .38)
    SN# 0C160936 & Up
    SCREW, (.190-24 x .38)
    SN# 0C160936 & Up
